GUSTARD S26 Streamer Silver

New
Gustard's S26 is a streamer designed to deliver exceptional audio performance thanks to the meticulous optimisation of each of its components. In fact, everything from the cooling system to the choice of hardware components and the power supply circuit has been designed to ensure smooth operation while reducing noise and jitter in the output signal as much as possible.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Yes, notify me when available !
Reference : 20502
New product

This product is temporarily unavailable.
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

This product will soon be available for sale. Additional information or minor modifications may be made to this product before its availability.

Gustard S26 Streamer Airplay UpnP Roon 32bit 768kHz DSD512 Silver

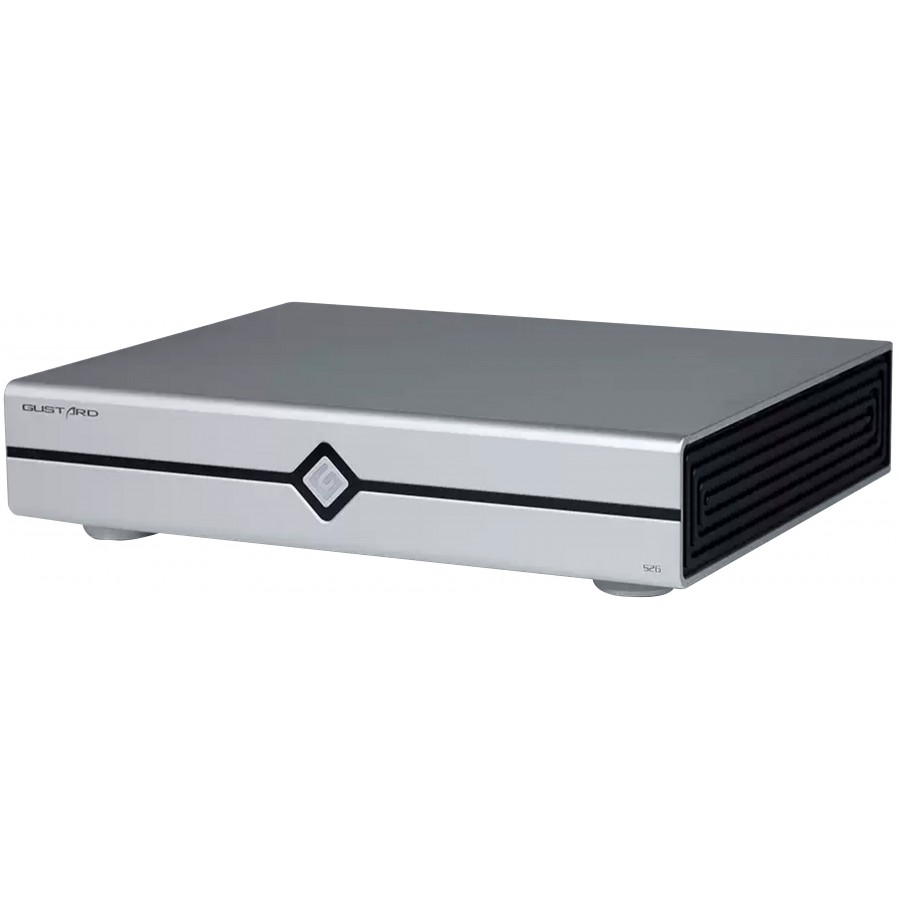

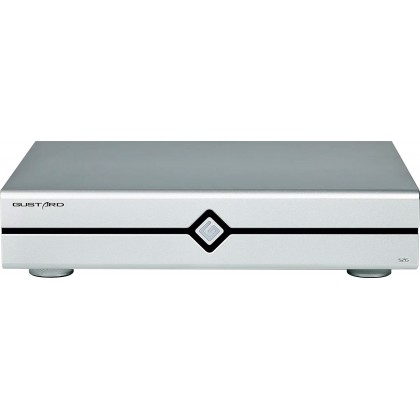

Gustard S26 : Front view


Gustard
's S26
is a streamer designed to deliver exceptional audio performance thanks to the meticulous optimisation of each of its components. In fact, everything from the cooling system to the choice of hardware components and the power supply circuit has been designed to ensure smooth operation while reducing noise and jitter in the output signal as much as possible.

Gustard S26: Ryzen 5 5600U processor

The S26 is powered by a Ryzen 5 5600U. This powerful processor is based on the Zen 3 architecture, with 6 cores and 12 threads clocked at 2.3GHz and capable of going up to 4.2GHz in turbo mode, enabling the S26 to be fluid in all circumstances, ensuring unrivalled user comfort.

Gustard S26 : Ryzen 5 5600U processor
Gustard S26 : Liquid cooling

Gustard S26: Watercooling

In order to offer cooling that generates no noise and creates no interference, Gustard has chosen a watercooling system transported by copper pipes. This system provides a high level of heat dissipation while avoiding the interference and mechanical vibrations that a fan would create.

Gustard S26: Internal SSD memory

To store your favourite tracks in the best possible quality, the S26 is equipped with a 1TB NVMe SSD, giving you instant access to them thanks to the speed of this technology's roaming transmission, as well as the DDR4 RAM it's equipped with. Furthermore, if you wish for more storage, you can add up to 4TB of PCIe 3.0 SSD NVMe memory (SSD sold separately).

Gustard S26 : SSD
Gustard S26 : transformer

Gustard S26: Quality power supply

The S26's power supply is based on a 120VA OFC copper transformer. The current then passes through a double bridge rectifier capable of generating up to 800V in direct current with a capacity of 25A. Furthermore, the inrush current capacity of 400A guarantees the efficiency and reliability of the system. 40800µF capacitors then stabilise the power supply to provide the device with a continuous energy supply without interference.

The power supply to the various modules that make up the S26 is then provided via multiple independent circuits, each equipped with a low voltage drop regulator, ensuring a clean power supply whose noise never exceeds 5µV.

Gustard S26: GCLK-02 internal clock

To guarantee perfect synchronisation of your signal, the S26 adjusts the output frequency from a single clock signal. This same clock signal governs the PCIe, network and USB connections, ensuring overall consistency and optimum stability.

The GCLK-02 clock module adopts a phase-locked loop capable of maintaining exceptional accuracy with 1Hz lock, ensuring ultra-precise clock signal management. Furthermore, for even greater accuracy, you can connect an external 10MHz clock via the 50Ω impedance BNC input.

Gustard S26 : GCLK-02 internal clock

Gustard S26: Extended compatibility

The Gustard S26 supports Roon Core as well as UPnP Servers, so it can be integrated into a wide range of installations. Furthermore, the device is compatible with Spotify Connect, Apple Airplay and QQ Music.

Gustard S26: I2S Pinout

Gustard S26 : Pinout I2S

Technical characteristics

Specifications
Product typeStreamer
ProcessorRyzen 5 5600U
Internal memorySSD 1TB
1x M.2 PCIe 3.0 NVMe SSD slot up to 4TB (SSD sold separately)
RAM memory8GB DDR4
Inputs1x USB-A 3.0
1x RJ45
1x 10MHz clock BNC input
Output1x USB-A
1x HDMI IS2
1x HDMI I2S-G
1x XLR AES
1x Optical Toslink
1x Coaxial
Supported sampling ratesI2S: PCM 32bit 768kHz / Native DSD512
AES / Coaxial / Optical: PCM 24bit 192kHz / DSD DoP256
Supported protocols and servicesRoon Core
Serveur UPnP
AirPlay
Spotify connect
QQ Music
General
Power supply voltage115-230V
Weight5.5kg
Dimensions330 x 260 x 65mm
ColorSilver
Package1x Gustard S26

Data sheet
InputRJ45
InputUSB
InputClock (BNC)
OutputOptical Toslink
OutputCoaxial SPDIF
OutputUSB
OutputI2S LVDS via HDMI
OutputAES/EBU
DAC / ADC ChipNC
Max sampling rateDSD512
Max sampling rate768kHz
ColorSilver
Remote ControlN/A
Streaming services & Network protocolsAirPlay
Streaming services & Network protocolsRoon / Roon Bridge / Roon Ready
Streaming services & Network protocolsQQMusic
Streaming services & Network protocolsSpotify Connect
Streaming services & Network protocolsUpnP
