JF DIGITAL MX-1PRO Android Drive Streamer I2S USB XMOS SPDIF AES 32bit 768kHz DSD512

The JF Digital MX-1Pro is a high-end streamer at a low price that will allow you to enjoy all your audio files stored locally or on your network. It is based on an Android 7.0 operating system and therefore particularly versatile. Its careful design allows it to provide a meticulous reproduction.

Average votes for this product
4.5 / 5

By buying this product you get 59 loyalty points


Reference : 13922
New product

599,00 €tax incl.

499,17 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

JF Digital MX-1Pro

Android Drive Streamer I2S USB SPDIF AES 32bit 768kHz DSD512

JF Digital MX-Pro Lecteur Réseau Android 7.1 Streamer WiFi RJ45 Bluetooth 32bit 768kHz DSD512

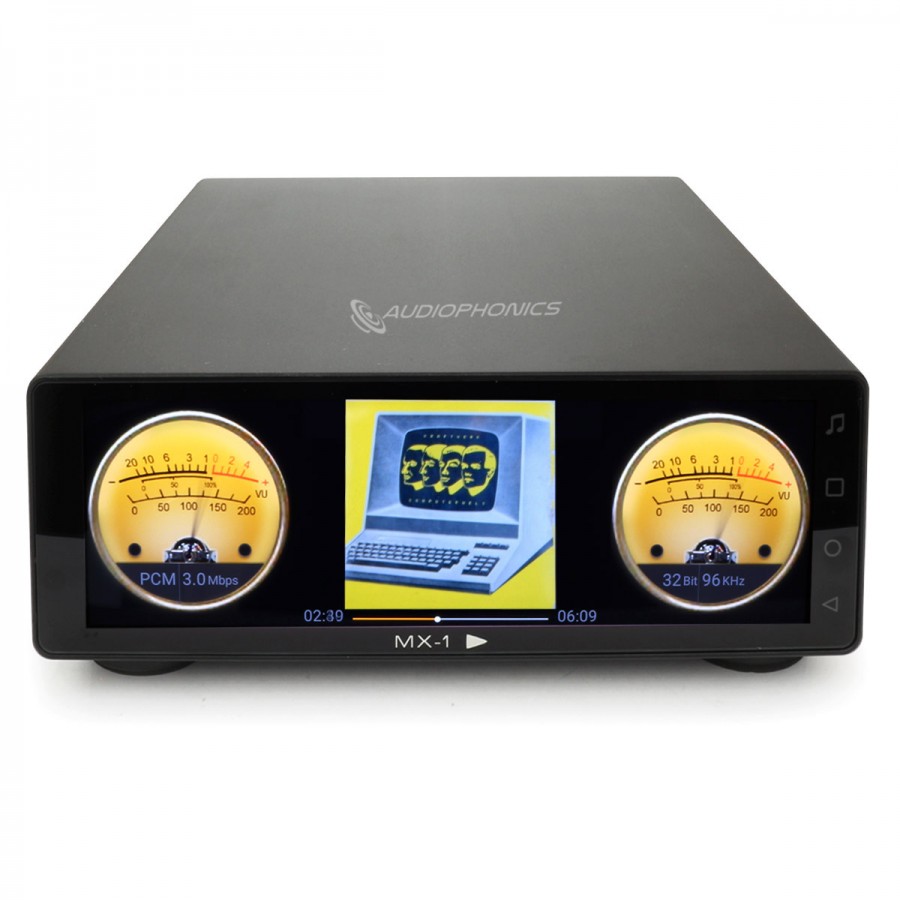

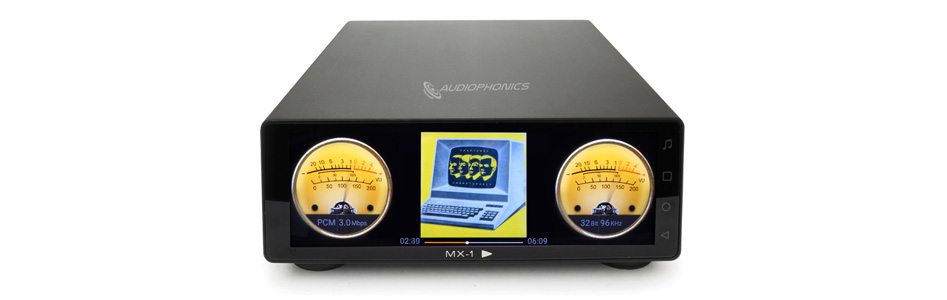

The JF Digital MX-1Pro is a high-end streamer at a low price that will allow you to enjoy all your audio files stored locally or on your network. It is based on an Android 7.0 operating system that allows you to install the applications of your choice on the player in order to enjoy a fully customized use adapted to your needs. Its front panel is covered with a large and beautiful 8" touch screen allowing easy reading of information and simplified configuration of the device.

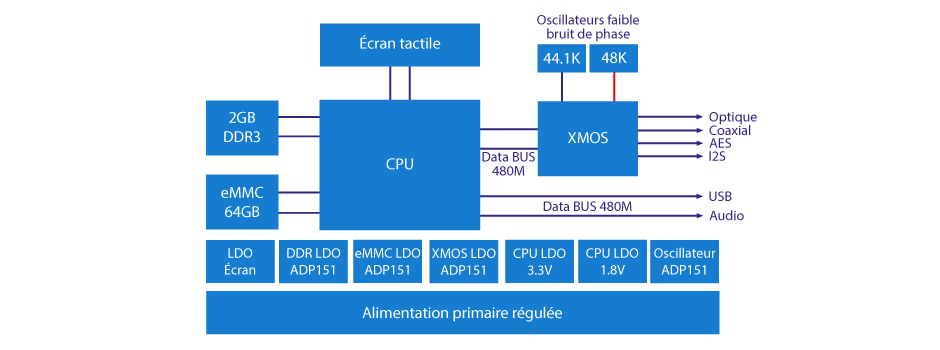

A 4 core processor, 2GB of DDR3 RAM and 64GB of eMMC ensure fast data processing for smooth operation. The MX-1Pro's well-thought-out architecture allows it to read high-resolution files, up to PCM 32bit 384kHz and DSD512. Its low phase noise clocks allow it to significantly reduce jitter and its regulated power supply provides a signal specific to all the reader's circuits. This careful design allows the MX-Pro to offer a precise, detailed and rich reproduction.

The Pro version of the JF Digital MX does not have an integrated DAC. It is intended to be versatile and thus allows you to associate it with the external DAC that will suit you best.

JF Digital MX-Pro Lecteur Réseau Android 7.1 Streamer WiFi RJ45 Bluetooth 32bit 768kHz DSD512

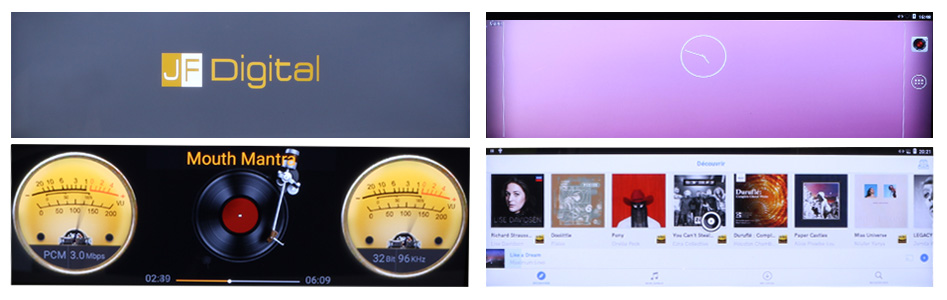

Interface & Touch Screen

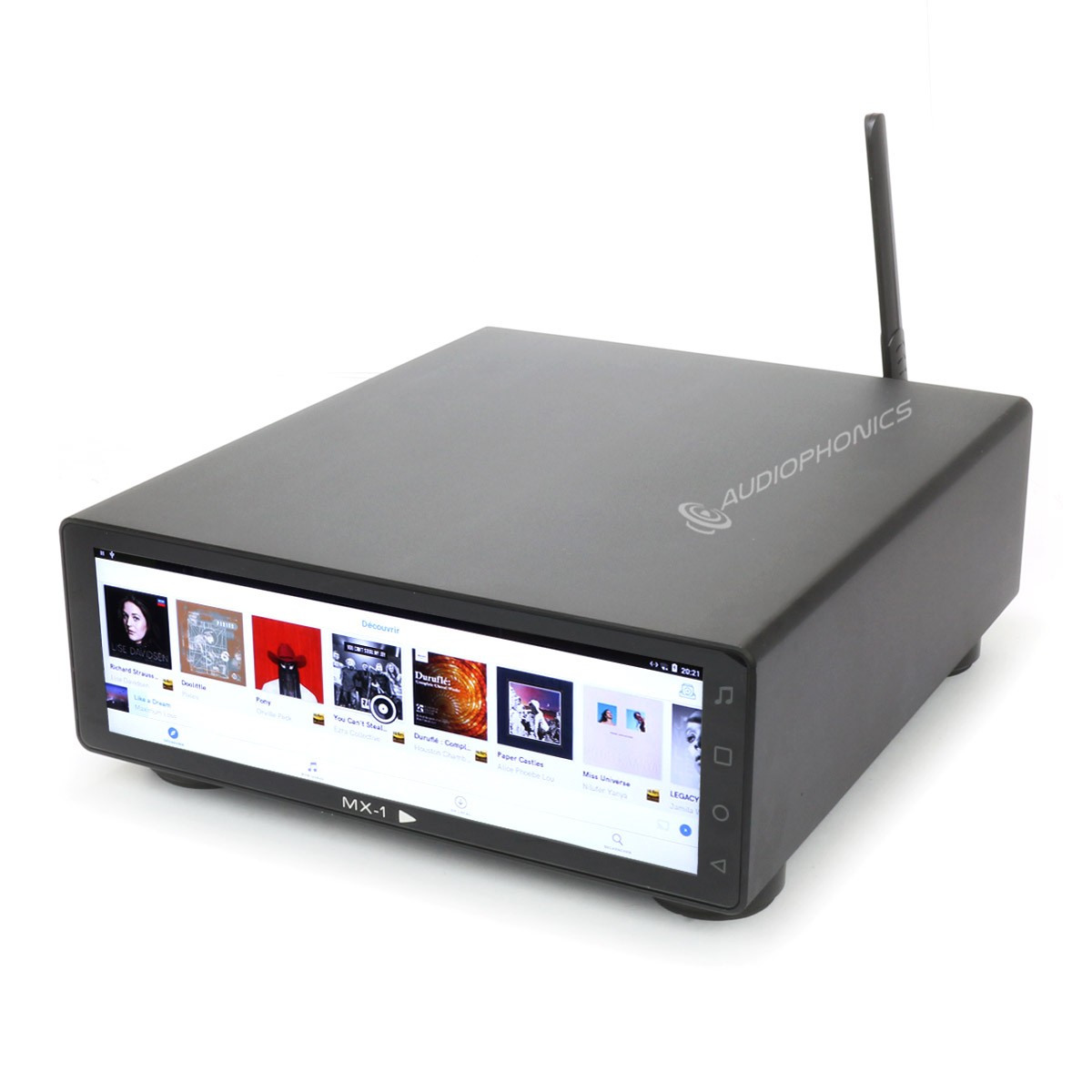

The MX-1Pro offers several control options. Of course, its 8-inch touch screen allows easy access to all the device's features. Since the device uses Android, its use is very similar to what can be found on a smartphone with the same OS.

This beautiful screen that will allow you to navigate through the many features of the device also allows you to display video, metadata of your audio files (sampling rate, titles, album artwork, etc.) as well as all playback information (volume, playback mode, playlists...).

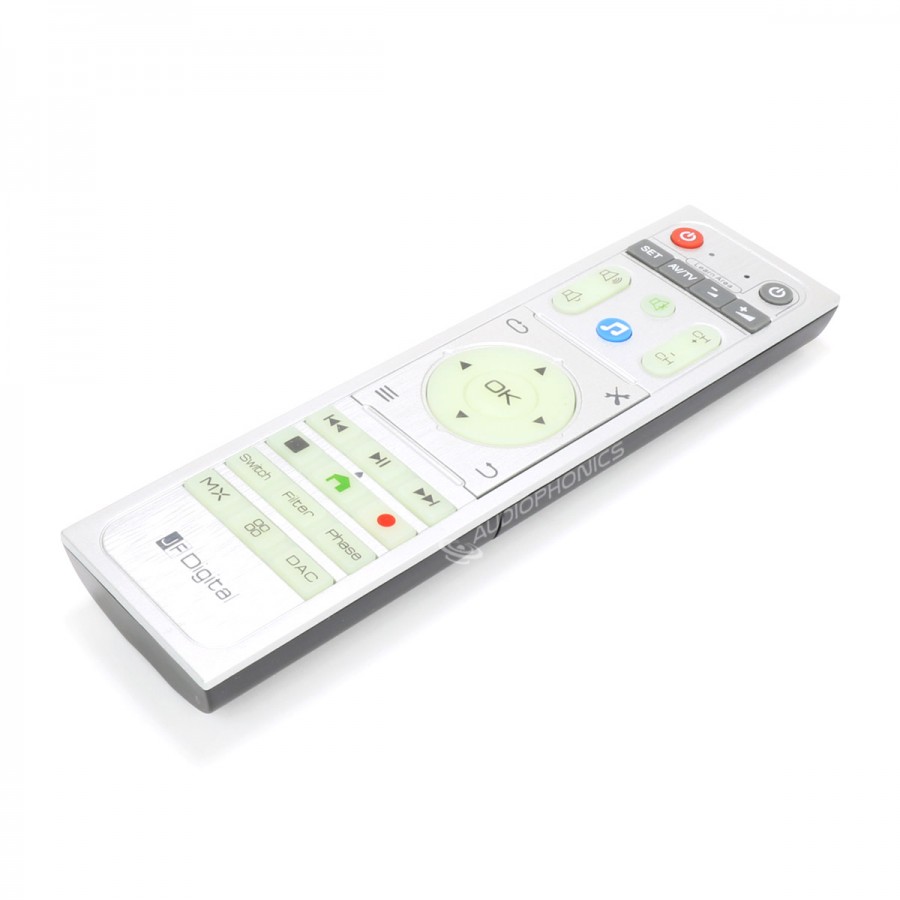

It is also possible to control the player using the supplied IR remote control. This very complete one allows you to access a large number of features of the MX-1Pro without having to get up from your sofa.

JF Digital MX-Pro Lecteur Réseau Android 7.1 Streamer WiFi RJ45 Bluetooth 32bit 768kHz DSD512

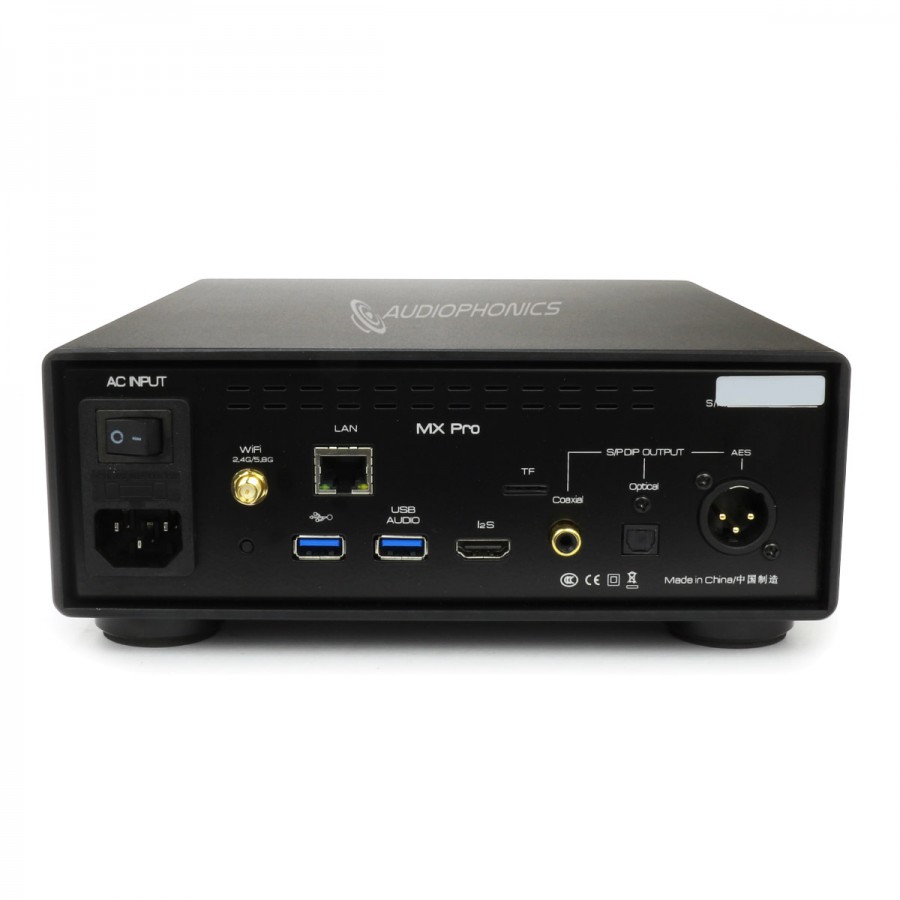

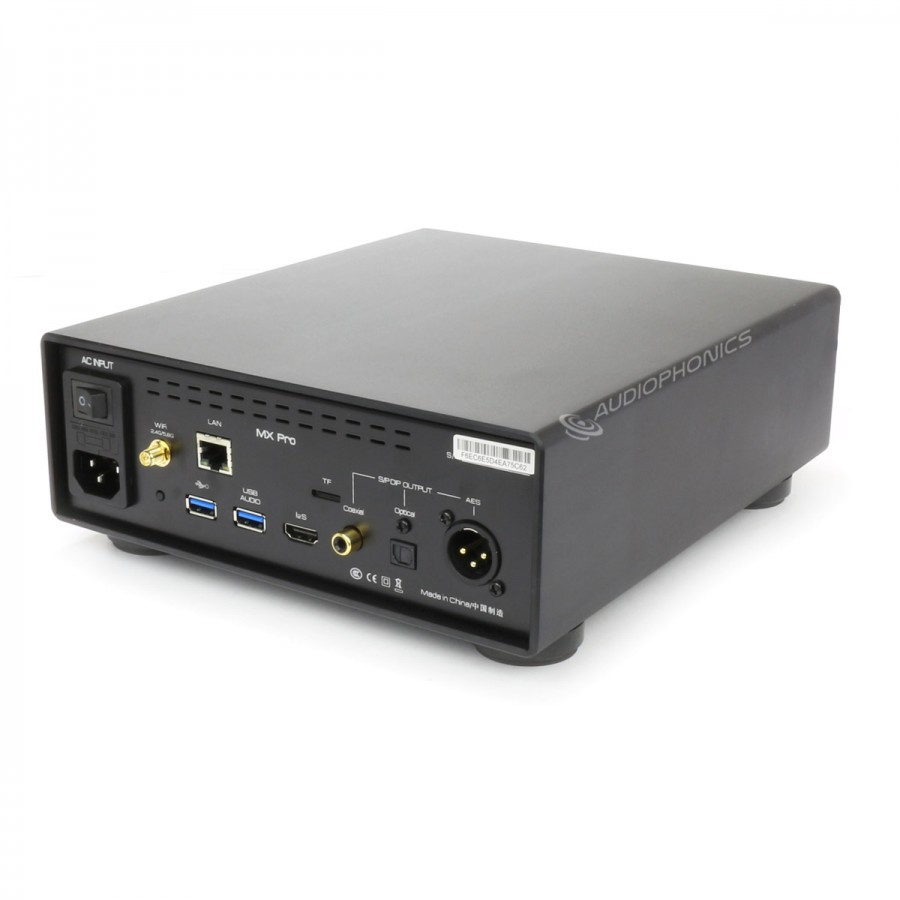

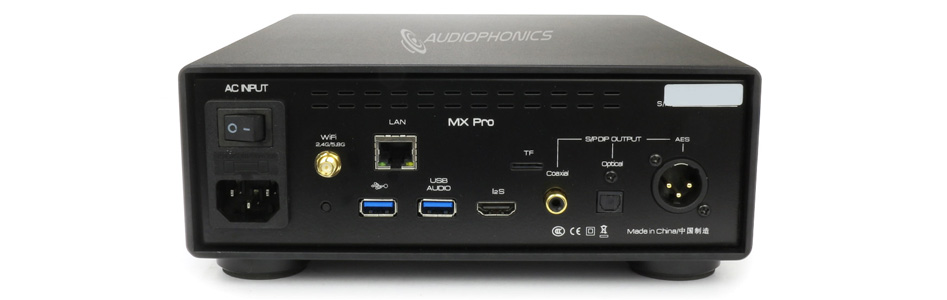

Connectivity

Versatile, the MX-1Pro has a wide connectivity to meet most needs. On the wireless or network side, the device offers WiFi 2.4G/5Gand an RJ45 port for 100Mbps/1Gbps Ethernet. A supplied antenna significantly improves wireless reception of WiFi. A USB-A input is also available to connect a storage device such as a hard disk or USB stick, as well as a Micro SD port.

For the outputs the MX-1Pro has a second USB-A connector with an XMOS interface to connect an external DAC, as well as an I2S HDMI LVDS, Coaxial, Optical and finally a balanced AES output on XLR connector.

JF Digital MX-Pro Lecteur Réseau Android 7.1 Streamer WiFi RJ45 Bluetooth 32bit 768kHz DSD512

Video capacity

The embedded Android operating system, while allowing audio playback, is also able to play video files easily. Simply use the video playback application provided to immediately enjoy an audio/video playback solution.

Pinout I2S LVDS


I2S LVDS output compatible with I2S Audio-GD / PS Audio.

Technical characteristics

Specifications
Product typeStreamer
OSAndroid 7.1 + Custom Audio Framework
CPU4 Cores
RAM2Go DDR3
ROMeMMC 64Go
Screen8"
Inputs1x USB-A XMOS OTG (Hard drive up to 8TB)
1x Micro SD up to 256Go
WiFi 2.4G/5.8G
RJ45
Outputs1x USB-A
1x Coaxial
1x Optical
1x AES/EBU
1x I2S LVDS HDMI
Supported sampling rateUSB : PCM up to 32bit 384kHz, DSD up to DSD512, DoP up to DoP128
Coaxial, Optical, AES/EBU : PCM up to 24bit 192kHz, DoP64
I2S : PCM up to 32bit 384kHz, DSD up to DSD256, DoP up to DoP128
Supported protocolsDLNA
Samba
Supported formatsDSF, DFF, DSR, ISO, WAV, APE (Fast/High/Normal), AIFF, MP3, FLAC, WMA, AAC
Output level2Vrms
Frequency response10Hz-40kHz (+/-1dB)
THD+N<= 0.002%
SNR>115dB
Dynamic range>120dB
General
ColorBlack
Dimensions220 x 250 x 76mm
Weight4.5kg
Package1x JF Digital MX-Pro
1x Power cable
1x USB Cable
1x Antenna
1x Remote control (AAA Batteries sold separately)

Data sheet
InputRJ45
InputMicro SD
InputWiFi
OutputCoaxial SPDIF
OutputOptical Toslink
OutputXLR
OutputBluetooth
OutputI2S LVDS via HDMI
Max sampling rateDSD512
Max sampling rate384kHz
ColorBlack
