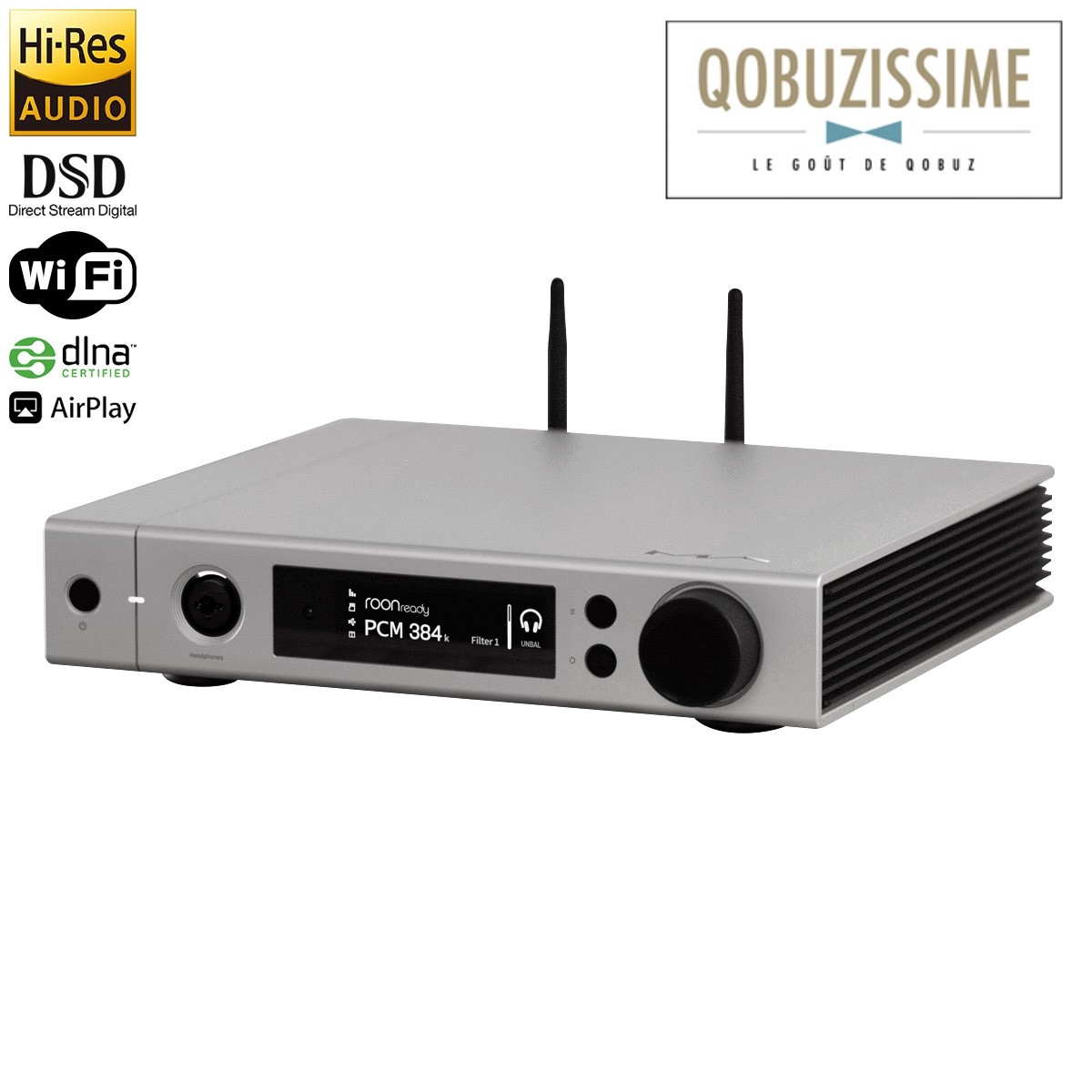

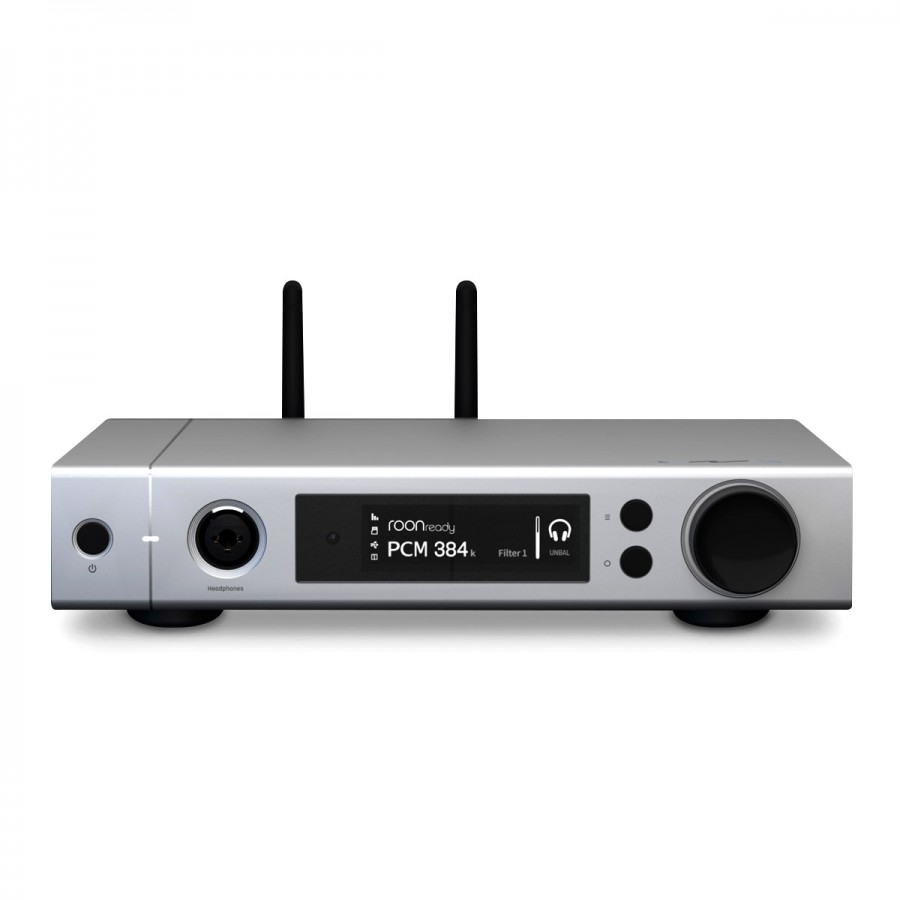

Matrix Element M

Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

The Element M completes Matrix's Element range, which is the basis for the design of the other models. For this version, Matrix sought to balance performance, features and price to provide a mid-range stereo audio system for active speaker or headphone users.




Qobuzissime award

In conclusion, we can safely rank the Matrix Audio element M network player among the top-of-the-range achievements in the category, both in terms of its extremely meticulous workmanship, extensive capabilities and refined sound results that are close to excellence, with, ultimately, our Qobuzissime reward.

test by the test plateform Qobuz
Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

MA Player

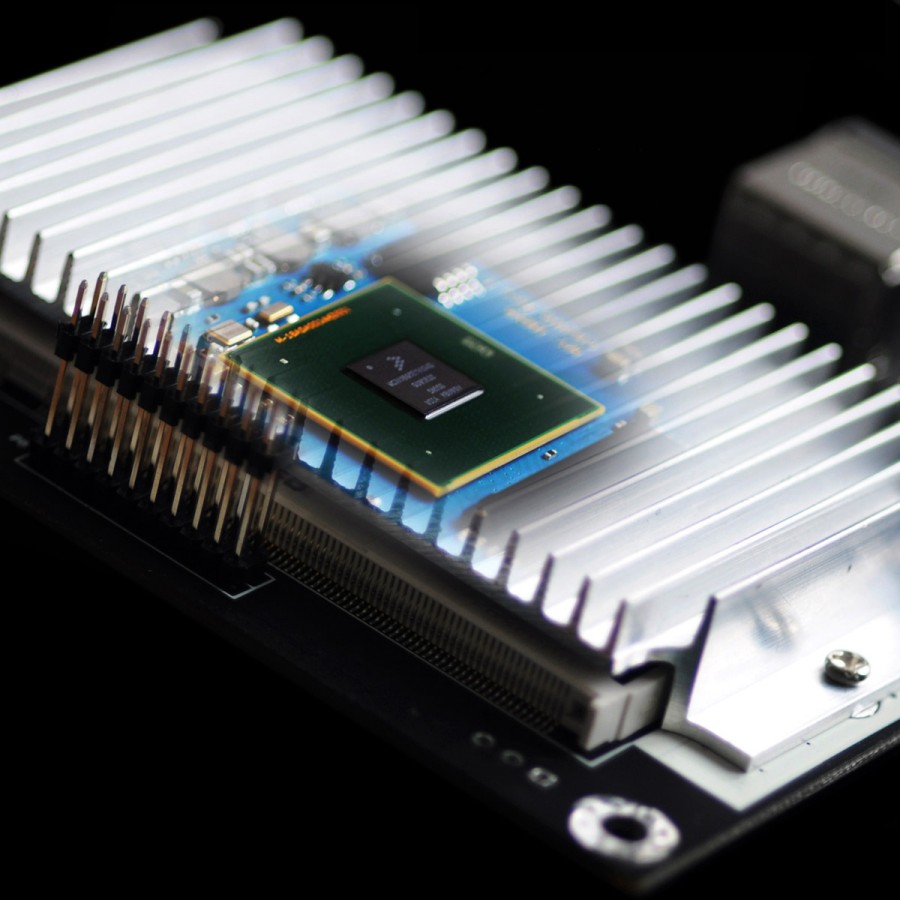

Matrix has developed the MA Player, a powerful audio playback system based on a Quad-Core ARM Freescale platform and supporting a large majority of popular audio formats. Simply connect a USB hard drive to the Element M or configure a NAS to browse your music library and enjoy it up to 32bit 768kHz for PCM and up to DSD512.

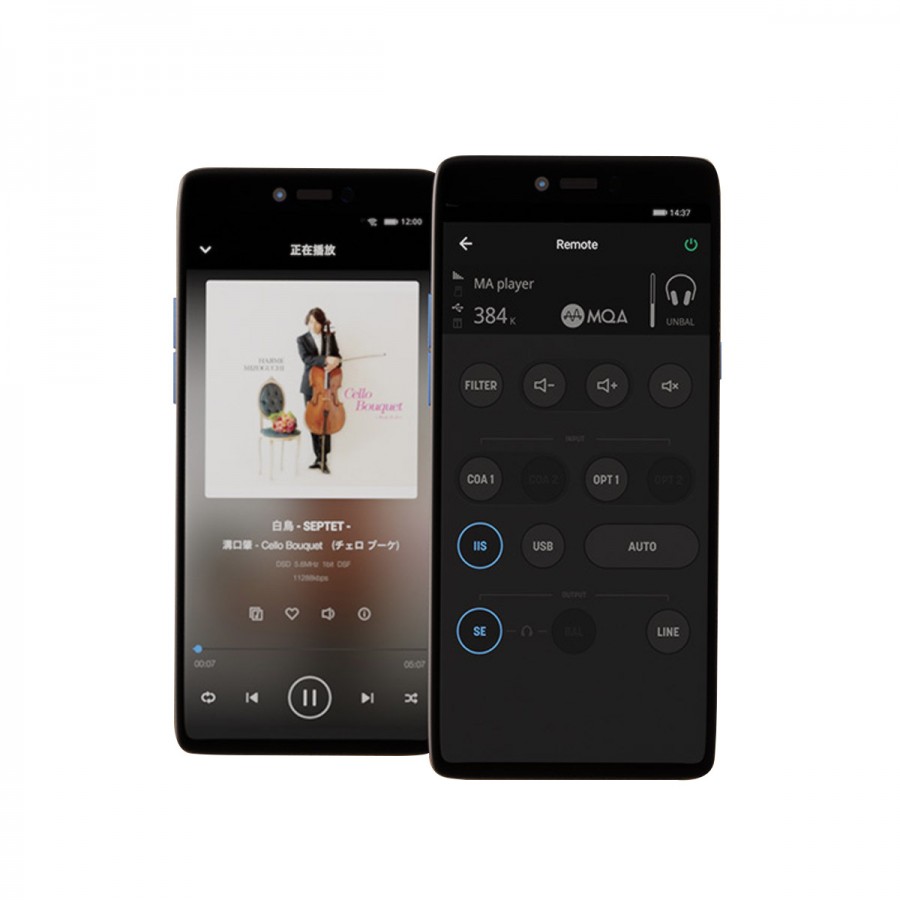

MA Remote App

Matrix also offers an Android application to control the devices in the Element range. This application allows you to browse through your music library and act on playback directly from any mobile device connected to the same local area network (LAN). Matrix continues to improve and update the application, while adding new streaming services. Qobuz and Tidal are already available.

Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

AirPlay & DLNA

Listening to your music stored on your network in streaming is becoming more and more common. The Element M also allows you to play your music from a smartphone or any other mobile device via the AirPlay and DLNA protocols.

Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512
Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

MQA Decoding and rendering

MQA (Master Quality Authenticated) is an award-winning English technology for restoring the sound quality of original recordings. MQA files are also light enough to be streamed or downloaded. The Element M supports MQA technology, allowing you to play and stream MQA files for superior sound quality.

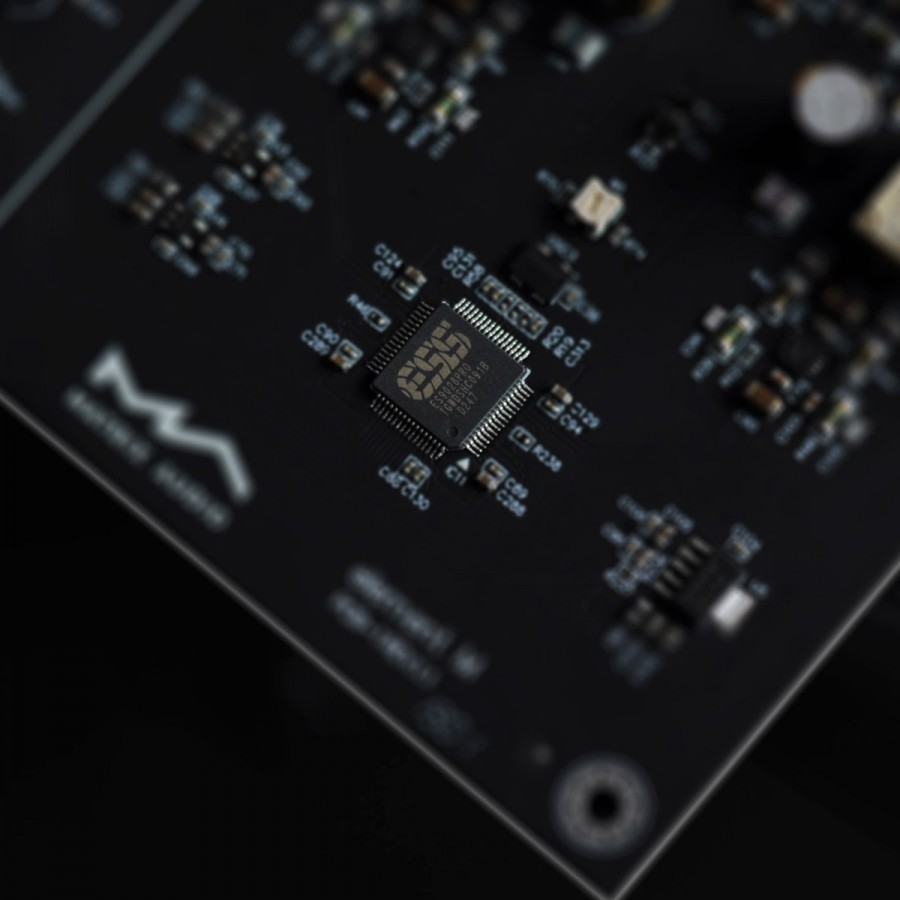

DAC ESS ES9028Pro

The Element M, being positioned in the middle of the range, also wants to have the best quality/price ratio. Matrix uses an ES9028Pro DAC from ESS and a low phase noise SiTime clock in the Element M. Matrix leverages its many years of experience in developing products with ESS chips to maximize performance.

Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512
Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

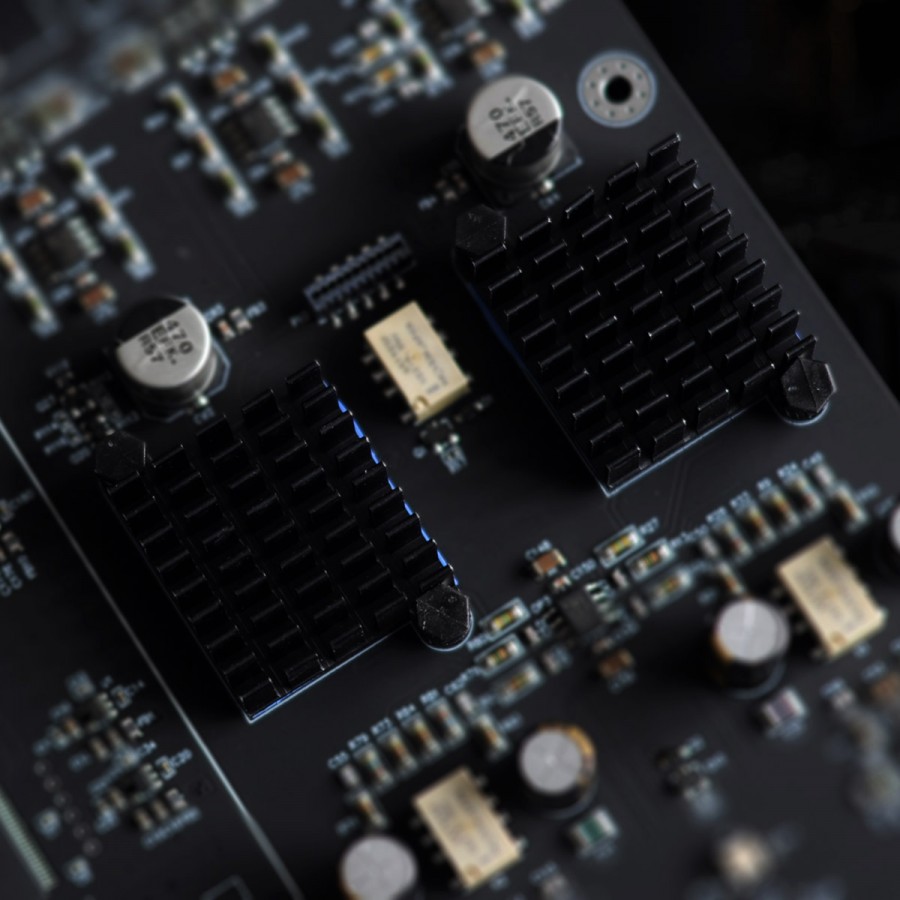

High quality headphone amplifier

The Element M incorporates a low impedance headphone amplifier, based on the use of discrete components. This headphone amplifier uses a bipolar input stage to significantly reduce distortion. The output stage is set to a high idle current state, ensuring impressive sound performance.

Various control methods

The RM3 infrared remote control is common to all products in the Element range. Matrix therefore offers 5 addressing codes to avoid interference between devices. It is also possible to use the virtual remote control of the MA Remote application to access all the functions of the Element M.

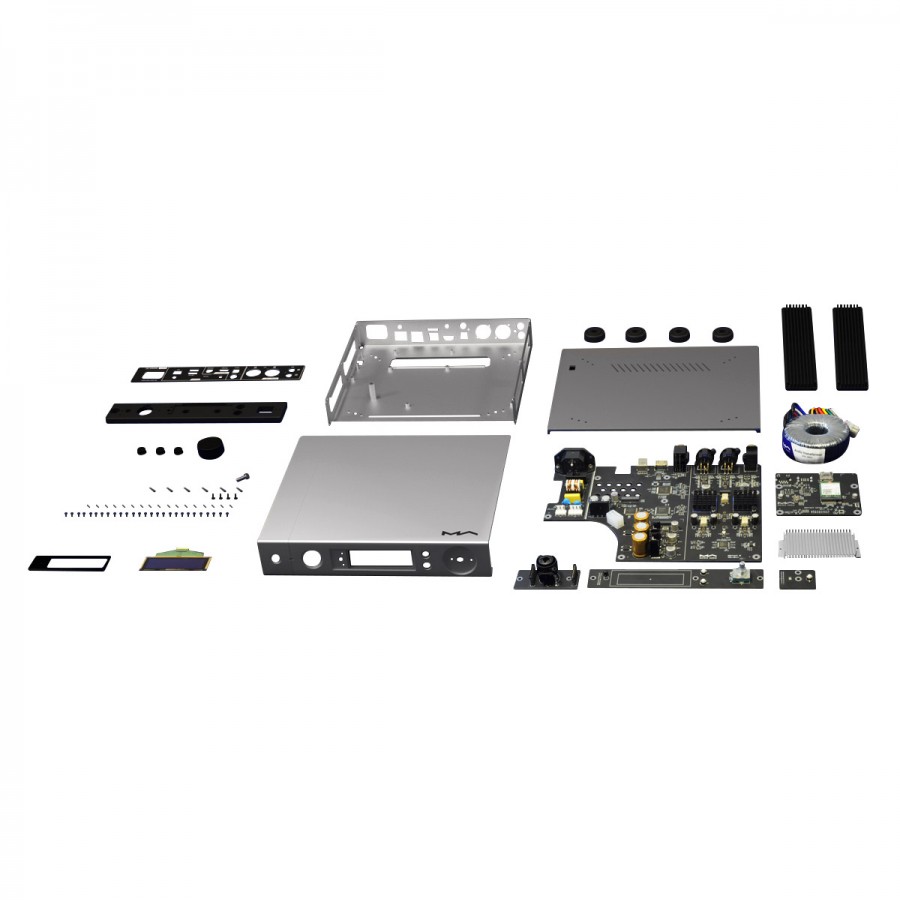

Dual shell design

Each material has its own resonance frequency. The Element range of housings feature a double-layer design. The inner housing is made of deep-drawn galvanized steel with multi-band reinforcement grooves for excellent strength, and the outer shell is made of 4mm thick Aluminium. The combination of these two metals eliminates the fixed resonance frequency of each material and significantly reduces the negative noise impact that resonance can have on the housing.

Lecteur Réseau DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512

Comparaison of Matrix Devices

Spec DeviceElement XElement PElement MElement IMini-i 3Mini-i Pro 3
DAC chipES9038 PRO + ES9311ES9028 PROES9038Q2M
DAC ChipXMOS U216XMOS U208XMOS U216
PCM : 16-24Bit 768kHz
DSD : 11.2MHz (DoP)
DSD : 22.4MHz (Native)
PCM : 16-24Bit 384kHz
DSD : 5.6MHz (DoP)
DSD : 11.2MHz (Native)
PCM : 16-24Bit 768kHz
DSD : 11.2MHz (DoP)
DSD : 22.4MHz (Native)
MQA : 24bit 384kHz
PCM : 16-24Bit 768kHz
DSD : 11.2MHz (DoP)
DSD : 22.4MHz (Native)
ClocksCrystek CCHD-950
Ultra Low Phase Noise
Femtosecond
SiTime Low Phase NoiseCrystek CCHD-950
Ultra Low Phase Noise
Femtosecond
Digital InputsOptiquex2x1
Coaxialx2x1
I2S (LVDS)x1
Bluetooth
Réseau
USBx1 USB-Bx1 USB-C
Line InRCAx2
Line OutRCAx1x1
XLRx1x1
Amplified output2×230W@4Ω
Headphone OutXLR4 & Dual XLR3x1
Single-Ended 6.35mmx1x1
Balanced 4.4mmx1
NetworkLAN10BASE-T/100BASE-TX
WLAN2.4GHz/5GHz
IEEE 802.11
a/b/g/n/ac
2.4GHz
IEEE 802.11
a/b/g/n
Non2.4GHz/5GHz
IEEE 802.11
a/b/g/n/ac
MA Remote compatibilityQobuz, Tidal support
Volume controlHyper-Control
Relay + Digital Volume
MUSES 72320
Volume resistor network
Digital volume
Storage DeviceTF Card
USB HOST X2
USB HOST X2
NAS SupportSMB V1.0 & V2.0
ARMQuad-CoreDual-CoreSingle-Core
DriveLocal filesMP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
AirplayAirplay 1Airplay 2
DLNA
Roon Ready
MQADecoder + RendererDecoder + Renderer
IR remote
Power SupplyLinear Noratel
40W
Linear Noratel
25W
Linear
30W
External AC Adapter
20W
Linear Noratel
20W
Dimensions340×281×60mm275×281×60mm240×220×55mm223x205x48mm
Weight4.2Kg4.7Kg3.7Kg1.5Kg1.7Kg

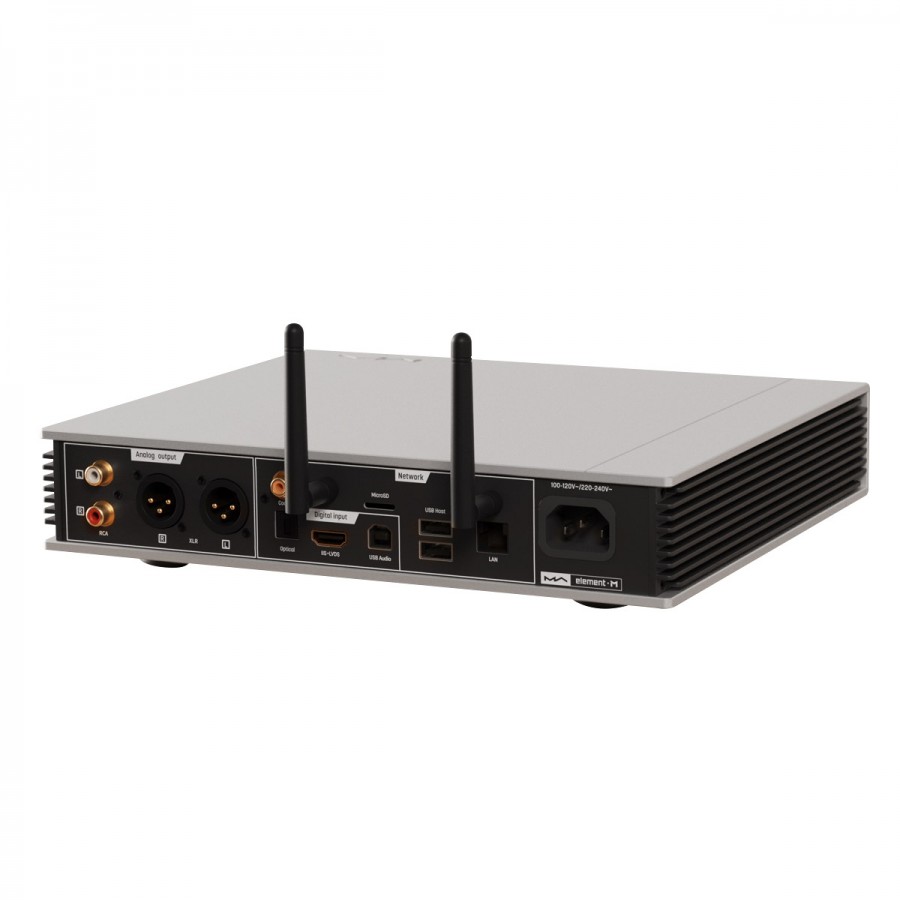

Technical characteristics

Specifications
Product typeStreamer
InputsWiFi
Ethernet RJ45
2x USB-A (Host)
1x Micro SD
1x USB-B
1x I2S LVDS HDMI
1x Optical
1x Coaxial
Outputs1x Single-ended RCA
1x Balanced XLR
Supported sampling rateCoaxial, Optical : PCM up to 24bit 192kHz / DSD64
I2S LVDS : PCM up to 32bit 768kHz / DSD up to DSD1024
USB : PCM up to 768kHz / DSD up to  DSD256
SNRXLR : > -128dB
RCA : > -125dB
Headphone output : > -11dB @ 2Vrms
THD+NXLR : < 0.00022% @ 1kHz, < 0.00025% @ 20Hz - 20kHz
RCA : < 0.00028% @ 1kHz, < 0.00045% @ 20Hz - 20kHz
Headphone output: < 0.0006% @ 1Vrms
Frequency responseXLR : 20Hz - 20kHz +/-0.05 -3dB @ 150kHz
RCA : 20Hz - 20kHz +/- 0.05 -3dB @ 120kHz
Headphone output : 20Hz - 20kHz +/-0.1 -3dB @ 47khz
CrosstalkXLR : > -145dB
RCA : > -128dB
AmplitudeXLR : 4Vrms @ 0dB
RCA : 2Vrms @ 0dB
Headphone output impedance< 0.6Ω
Headphone output power1320mW @ 32Ω, 248mW @ 300Ω, 124mW @ 600Ω, 1% THD
Headphone output gain+12dB
LAN Type10BASE-T / 100BASE-TX
WLAN Type2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac
Supported file formatsMP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
General
Supply voltage230V AC / 115V AC (power cable included)
Sleep power consumption< 4W
Max consumption< 25W
Dimensions275 x 281 x 60mm
Weight3.7kg
Package1x Matrix Element M
1x RM3 Remote Control
1x Power cable
1x Câble USB
2x WiFi Antennas

Data sheet
InputMicro SD
InputI2S via HDMI
InputOptical
InputRJ45
InputWiFi
InputSPDIF
OutputRCA
OutputXLR
DAC / ADC ChipES9028PRO
Max sampling rate768kHz
Max sampling rateDSD512
ColorSilver
Remote ControlYes
Streaming services & Network protocolsQobuz
Streaming services & Network protocolsDLNA
Streaming services & Network protocolsRoon / Roon Bridge / Roon Ready
Streaming services & Network protocolsTidal
Streaming services & Network protocolsAirPlay
