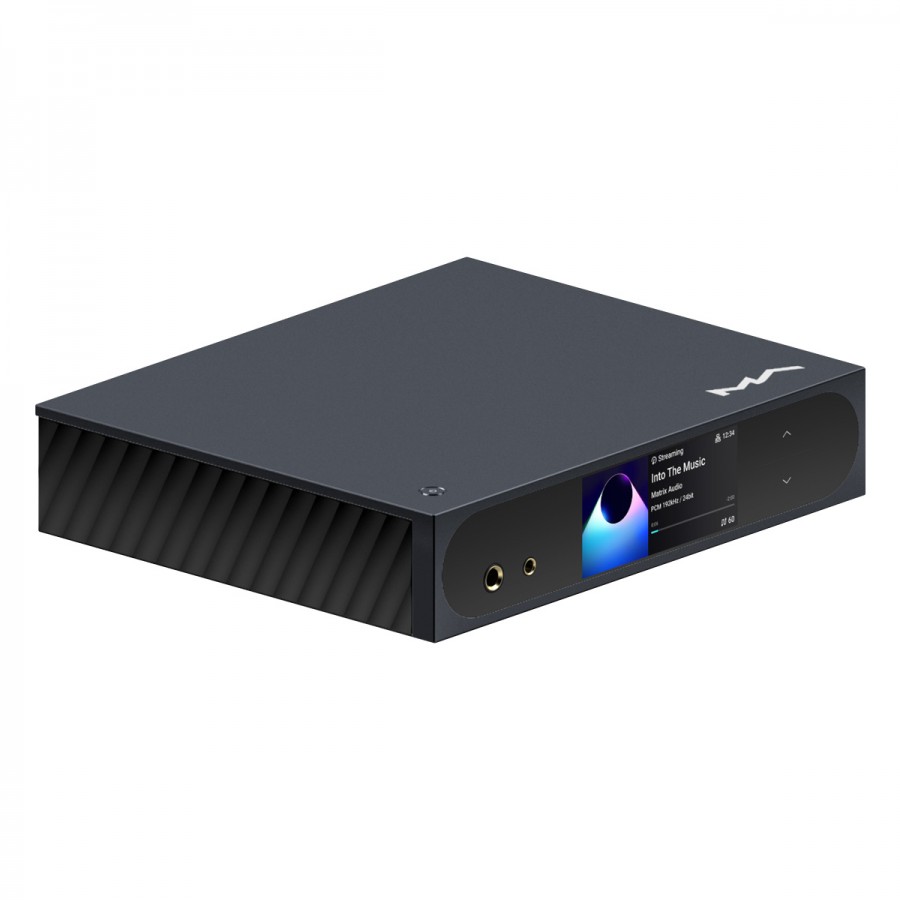

Matrix Mini-I Pro 4 DAC ES9039Q2M Streamer Headphone Amplifier WiFi DLNA Airplay 24bit / 768kHz DSD512 MQA
Successor to the Mini-I Pro 3, the Matrix Mini-I Pro 4 is a versatile, compact device offering the functions of DAC, headphone amplifier and, the latest addition to the Mini-I series, streamer.
Matrix has updated the DAC chip in the Mini-I Pro 4, choosing to integrate one of ESS Technologie's latest DAC chips, the ES9039Q2M. On the network player side, this device supports numerous broadcast protocols and incorporates Matrix Audio's own MA player interface. It can also be controlled via the MA Remote App. As for the headphone amplifier, the amplification circuit is designed to be totally symmetrical.
In terms of ergonomics and design, the Mini-I Pro 4 features a 3.46" touch screen with high-resolution display, facilitating control operations. But the great novelty of the Pro 4 version is the addition of an HDMI ARC port for a Hi-Fi TV experience.
Matrix Mini-I Pro 4: ES9039Q2M DAC
Thanks to its ES9039Q2M DAC chip using Hyperstream IV technology and taking advantage of the advanced Sabre HiFi architecture, the Mini-I Pro 4 is able to support PCM 24bit 768kHz, DSD up to DSD512 and MQA streams via its USB-B digital input. It also benefits from a Quad cortex-A55 2.0 GHz CPU.
Matrix Mini-I Pro 4: Balanced headphone amplifier
With its two outputs (a 6.35mm jack and a balanced 4.4mm jack) and its power, the Mini-I Pro 4 has no trouble driving high-impedance headphones. The totally symmetrical amplifier circuit design reduces interference for clean audio signal transmission.
Matrix Mini-I Pro 4: Fonction lecteur réseau
As a true network player, the Mini-I Pro 4 allows you to enjoy a wide range of streaming services, as well as audio streams via a LAN connection (Gigabit Ethernet 1000Mbps and dual-band Wi-Fi). With the brand's own MA player, DLNA/UPnP, Airplay, spotify connect or Tidal connect protocols make high-resolution streaming accessible. The Matrix Mini-I Pro 4 is also Roon Ready certified.
Local music playback is also possible via a USB storage device thanks to the USB-C port (5V/1.5A, working with devices compliant with the USB mass storage standard and the FAT, FAT32, exFAT and NTFS formats) or local NAS network.
Matrix Mini-I Pro 4: MA Remote App
With your smatphone or tablet, the MA remote app lets you connect to Tidal, Qobuz and HighRes Audio accounts for a high-quality streaming experience. The Mini-I Pro 4 also supports vTuner internet radio and Radio paradise via this app and an internet connection.
Matrix Mini-I Pro 4: A remote control for distant operation
Matrix Audio's RM5 remote control, specially designed for the Mini-I series, is supplied with the Mini-I Pro 4. It lets you control the device remotely, for even greater ease of use. The layout and functionality of the buttons have been redesigned. A programmable button now lets you add a shortcut for the function you use most frequently.
Extended connectivity
The Mini-I Pro 4 features numerous digital inputs, as well as an analog stereo RCA input for additional audio sources such as a turntable. As for outputs, it features a stereo RCA output and a balanced stereo XLR output. The big news on the Pro 4 version is the HDMI ARC input, enabling users to enjoy HiFi TV sound.
| 1 | Jack 6.35mm headphone output |
| 2 | Jack 4.4mm balanced headphone output |
| 3 | 3.46" high-resolution touch screen |
| 4 | IEC Power supply |
| 5 | LAN connector RJ45 |
| 6 | USB-C input (5V 1A) |
| 7 | USB-B input |
| 8 | HDMI ARC input |
| 9 | Toslink optical input |
| 10 | Coaxial input |
| 11 | RCA analog input |
| 12 | Stereo RCA output |
| 13 | Balanced stereo XLR ouput |
Mini-i Pro 4 test by ON-MAG
The Matrix Audio mini-i Pro 4 packs an impressive range of functions into a small package. On its own, it can handle streaming or TV sound via its HDMI port, as well as a turntable and headphone amp. The very straight sound signature will work wonderfully with some systems, less so with others: it's up to you to manage its association. Ergonomics are exemplary, with a mobile app, remote control, touchscreen, HDMI CEC and AirPlay 2 or Roon compatibility. This mini-i Pro 4 is a worthy representative of the Hifi of the 2020s.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Streamer DAC Headphone amplifier |
| CPU | Quad Cortex-A55 2.0GHz |
| DAC Chip | ES9039Q2M |
| Digital inputs | USB-B Coaxial Optical Toslink USB-C (5V/1.5A) HDMI ARC RJ45 |
| Analog input | Stereo RCA |
| Analog output | 1x RCA stereo 1x XLR stereo balanced 1x Unbalanced 6.35mm headphone output 1x 4.4mm balanced headphone output |
| Supported sample rates | Coaxial and optical: PCM 24bit 192kHz and DSD64 (2.8MHz DoP) HDMI ARC: PCM 24bit 192kHz Audio USB: PCM 24bit 768kHz / MQA 24bit 192kHz, MQA stream or MQA Studio 384kHz / DSD256 (11.2MHz DoP) & DSD512 (22.4 MHz native) |
| Network | Local and WiFi 1000 Mbits/s 2.4GHz / 5GHz |
| RCA and XLR analog outputs | |
|---|---|
| SNR | RCA : 121dB (A-weighted) XLR : 127dB (A-weighted) |
| THD+N | RCA : < 0.00015% @ 1k, < 0.00020 % @ 20Hz-20kHz XLR : : < 0.00008% @ 1k, < 0.00010 % @ 20Hz-20kHz |
| Frequency response | RCA : 20Hz-20kHz ±0.1/-3dB @ 90kHz XLR : 20Hz-20kHz ±0.1/-3dB @ 90kHz |
| Channel crosstalk | RCA : > -133 dB XLR : > -146 dB |
| Output level | RCA : 2.2Vrms @ 0dB XLR : 4.4Vrms @ 0dB |
| jack 6.35mm and balanced jack 4.4mm headphone outputs | |
|---|---|
| SNR | Jack 6.35mm : 116db A-weighted Jack 4.4mm : 117db A-weighted |
| THD+N | Jack 6.35mm : < 0.0005 % @ 20Hz-20kHz 4Vrms Jack 4.4mm : < 0.0004 % @ 20Hz-20kHz 2Vrms |
| Frequency response | Jack 6.35mm : 20Hz-20kHz ±0.1/-3dB @ 90kHz Jack 4.4mm : 20Hz-20kHz ±0.1/-3dB @ 90kHz |
| Output impedance | Jack 6.35mm : < 11Ω Jack 4.4mm : < 22 Ω |
| Output power | Jack 6.35mm : 1200mW @ 33Ω, 260mW @ 300Ω, 130mW @ 600Ω (1% THD) Jack 4.4mm : 2200mW @ 33Ω, 950mW @ 300Ω, 500mW @ 600Ω (1% THD) |
| Gain | Jack 6.35mm : + 14db Jack 4.4mm : + 14db |
| Analog RCA input (AUX) | |
|---|---|
| SNR | 100db A-Weighted |
| THD+N | < 0.0035% @ 1k, < 0.0035% @ 20Hz-20kHz |
| Frequency response | 20Hz-20kHz ±0.1/-3dB @ 46kHz |
| Channel crosstalk | > -105dB |
| Input level | 2.2 Vrms max. |
| MA Player | |
|---|---|
| Locally supported file format | MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE |
| Locally supported sample rates | PCM 24bits 768kHz / DSD512 (native) / MQA 24bits 192kHz, Flux MQA ou MQA Studio 384kHz |
| Roon ready | PCM 24bits 768kHz / DSD512 (native) / MQA 24bits 192kHz, Flux MQA ou MQA Studio 384kHz |
| Supported protocols and services | Airplay 2, DLNA/UPnP, Tidal connect, Spotify connect, vTuner, Paradise Radio, HighRes Audio, Roon Ready |
| General | |
|---|---|
| Power supply voltage | 100-240V AC 50/60Hz |
| Standby Power Consumption | < 5W |
| Maximum Power Consumption | < 30W |
| Dimensions | 224 x 186 x 53mm |
| Weight | 1.3kg |
| Color | Black |
| Package | 1x Matrix Audio Mini-I Pro 4 1x Matrix RM5 remote control 1x Power cable |
| Input | USB |
| Input | SPDIF |
| Input | RJ45 |
| Input | WiFi |
| Input | RCA |
| Input | Optical |
| Input | HDMI |
| Output | RCA |
| Output | Jack 6.35mm |
| Output | XLR |
| Output | Jack 4.4mm |
| DAC / ADC Chip | ES9039Q2M |
| Max sampling rate | DSD512 |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Color | Black |
| Class | N/A |
| Networking | Yes |
| Remote Control | Yes |
| Streaming services & Network protocols | Spotify Connect |
| Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
| Streaming services & Network protocols | Web radios |
| Streaming services & Network protocols | AirPlay |
| Streaming services & Network protocols | Tidal Connect |
| Streaming services & Network protocols | Qobuz |
| Streaming services & Network protocols | DLNA |
