Rose's RS130 is a high-performance network interface and player, designed to be combined with an external DAC. Its architecture is optimized to completely block digital noise thanks to its Ethernet and USB fiber optic connectivity, but also to provide stable digital audio signal output thanks to its on-board OCXO clock. The versatile RS130 offers extensive connectivity for high-quality music streaming.
The RS130's design focuses on both modern, luxurious aesthetics and breathtaking sound reproduction quality. In this way, the RS130 perfectly combines aesthetics, performance and functionality. Its sturdy aluminum chassis is also designed to limit vibration and dissipate heat efficiently, ensuring stable operation even during extended use.
To ensure excellent stability and the best possible sound quality, the RS130 features a linear power supply stage using high-capacity supercapacitors, effectively minimizing power supply noise. This new approach reduces noise to a level similar to that of batteries, for a clear, natural sound.
The RS130's front panel features a large 15.4" LCD touchscreen with 1920x382 pixel resolution. This elegantly displays all your music playback information, and even enables video playback.
By adopting a high-precision OCXO clock, the accuracy of the digital signal is greatly improved. This type of oscillator offers the advantage of being unaffected by temperature changes, for optimum stability. Jitter suppression is therefore particularly effective in this RS130.
Fiber optic Ethernet completely isolates digital noise. This connector effectively blocks noise from your various network equipment.
In the same way, the optical USB port also avoids any problems with digital noise from a storage device. By using an optical conversion system, only pure data is recovered. When connected to a DAC, this port transmits only the data, totally blocking out digital noise.
The built-in SSD caches audio files to ensure stable playback while avoiding the vibrations and noise caused by using a hard disk. It also minimizes delay errors that can occur during network playback.
The audio source requires a master clock capable of delivering audio data perfectly synchronized with the master clock. Using this method eliminates jitter for SPDIF, AES/EBU and I2S connections from the source to the DAC, ensuring perfect synchronization.
With the RS130, you can enjoy streaming via your network completely seamlessly. The device supports DLNA and AirPlay functions. It can also be connected to a smartphone, computer or tablet via WiFi, Ethernet and even Bluetooth!

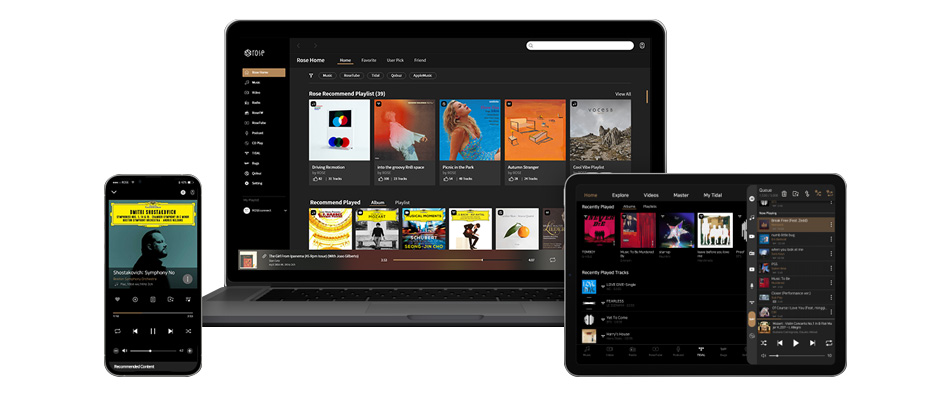

The Rose RS130 can therefore be controlled via its touchscreen, but also thanks to the dedicated Rose Connect app, available free of charge on Android, iOS and PC devices. The latter lets you play your music and videos locally or from a network location.
The device can also be controlled via the supplied Bluetooth remote control, which is particularly handy for operating the device directly from the comfort of your sofa.
The RS130 features the Rose OS operating system for an innovative music experience. It features ultra-high-quality music streaming and playback, 4K video support, an ad-free YouTube application, numerous radio stations, CD playback and burning (via an external drive), and much more!
The Rose Audio engine built into the RS130 delivers a pure, lossless audio signal to your DAC. Thanks to the use of multiple signal-processing technologies, the device is able to deliver top-quality sound reproduction.
1 | Favorite |
2 | Mute |
3 | Play/Pause |
4 | Power |
5 | IPS screen |
6 | Circuit breaker |
7 | GND |
8 | Coaxial output |
9 | AES/EBU output |
10 | Optical output |
11 | EXT clock input |
12 | I2S output |
13 | Power input |
13 | HDMI output |
13 | USB-DAC |
13 | USB 3.0 |
13 | USB 3.0 Fiber |
13 | Ethernet coppre or fiber |
Technical characteristics
Specifications | |
---|---|
Product type | Streamer |
Audio inputs | 1* USB-A 3.0 (USB Host) (NTFS / exFAT / FAT32) 1* USB 3.0 optical fiber 1* SATA |
Audio outputs | 1* Optical Toslink 1* Coaxial 1* AES/EBU 1* I2S via HDMI 1* USB-A 2.0 (USB Audio) |
Video output | 1* HDMI 2.0 (up to 3840*2160px 60Hz) |
External clock connector | 1* BNC 10MHz 50 Ohm input 1* BNC 10MHz 75 Ohm input |
Network connectivity | Ethernet SFP 10/100/1000BASE-T (Type SFP copper) WiFi 802.11ac dual-band (via USB dongle) |
Bluetooth connectivity | Bluetooth 4.2 (via USB dongle) |
Media connection | File system: SMBv2 / FTP / WebDav / NTFS / eXfat / FAT32 Connectors: 2x USB-A 3.0, 1x Micro SD, 1x SSD |
Supported streaming protocols | AirPlay DLNA Roon Ready Spotify Connect Bluetooth |
Supported streaming services | TIDAL Qobuz Apple Music Bugs Rose Tube Webradios Rose Podcast |
Supported audio codecs | MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC PCM up to 32bit 384kHz Native DSD up to DSD512 |
Supported video codecs | ASF, AVI, MKV, MP4, WMV MPEG-1, ISO/IEC, 11172.2, up to 1080p @ 60fps MPEG-2, ISO/IEC 13818-2, SP@ML, MP@HL, up to 1080p @ 60fps MPEG-4, ISO/IEC 14496-2, SP@LO, ASP@LO-5, up to 1080p @ 60fps H.264/AVC, Base/Main/High/High10 profile @ 5.1 level up to 4Kx2K @ 30fps H.265/HEVC, Main/Main10 profile @ 5.1 level High-tier up to 4Kx2K @ 60fps VP9, profile 0, up to 4Kx2K @ 60fps VC-1, SP@ML, MP@HL, AP@LO-3, up to 1080p @ 60fps |
OS | Rose OS |
CPU | Dual Core Cortex-A72 Quad-Core Cortex-A53 Separate NEON coprocessor |
GPU | ARM Mali-T860 MP4 Quad-Core |
RAM | LPDDR4 4GB |
Cache storage | 8GHz eMMC high-speed NVMe SSD 256GB Supported external SSD |
USB interface | XMOS XU216 |
Supported sampling rates | I2S: PCM up to 32bit 768kHz, Native DSD up to DSD512 Optical: PCM up to 24bit 192kHz AES/EBU: PCM up to 32bit 384kHz Coaxial: PCM up to 32bit 384kHz |
Touchscreen | TFT LCD 15.4" 1920*382px |
Software updates | Via internet, USB OTA, Rose Store |
Remote control | Rose Connect app (Android, iOS, PC) Bluetooth remote control |
General | |
---|---|
Supply voltage | AC 100-240V 50/60Hz |
Circuit breaker | 6A |
Dimensions | 430*317*125mm |
Weight | 12kg |
Enclosure material | Designed in a solid block of high-purity aluminum, minimizing vibration |
Color | Black |
Package | 1* Rose RS130 1* Power cable 1* Bluetooth remote control 4* Vis SSD 1* SFP RJ45 Copper Module 1* WiFi / Bluetooh dongle |
Input | WiFi |
Input | USB |
Input | RJ45 |
Input | SATA |
Input | Bluetooth |
Output | Optical Toslink |
Output | Coaxial SPDIF |
Output | AES/EBU |
Output | I2S LVDS via HDMI |
Output | HDMI |
DAC / ADC Chip | NC |
Max sampling rate | DSD512 |
Max sampling rate | MQA |
Max sampling rate | 768kHz |
Color | Black |
Remote Control | Yes |
Streaming services & Network protocols | DLNA |
Streaming services & Network protocols | Spotify Connect |
Streaming services & Network protocols | Qobuz |
Streaming services & Network protocols | Web radios |
Streaming services & Network protocols | AirPlay |
Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
Streaming services & Network protocols | Tidal |
