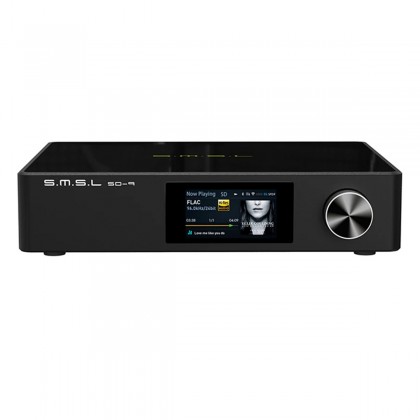

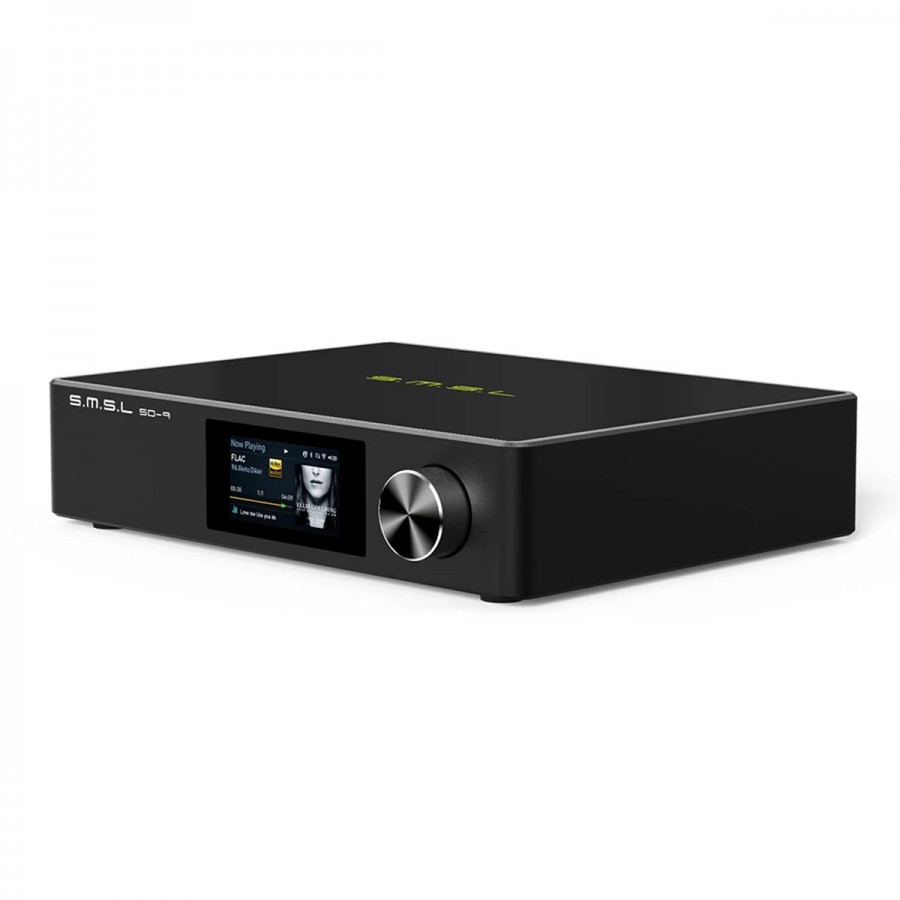

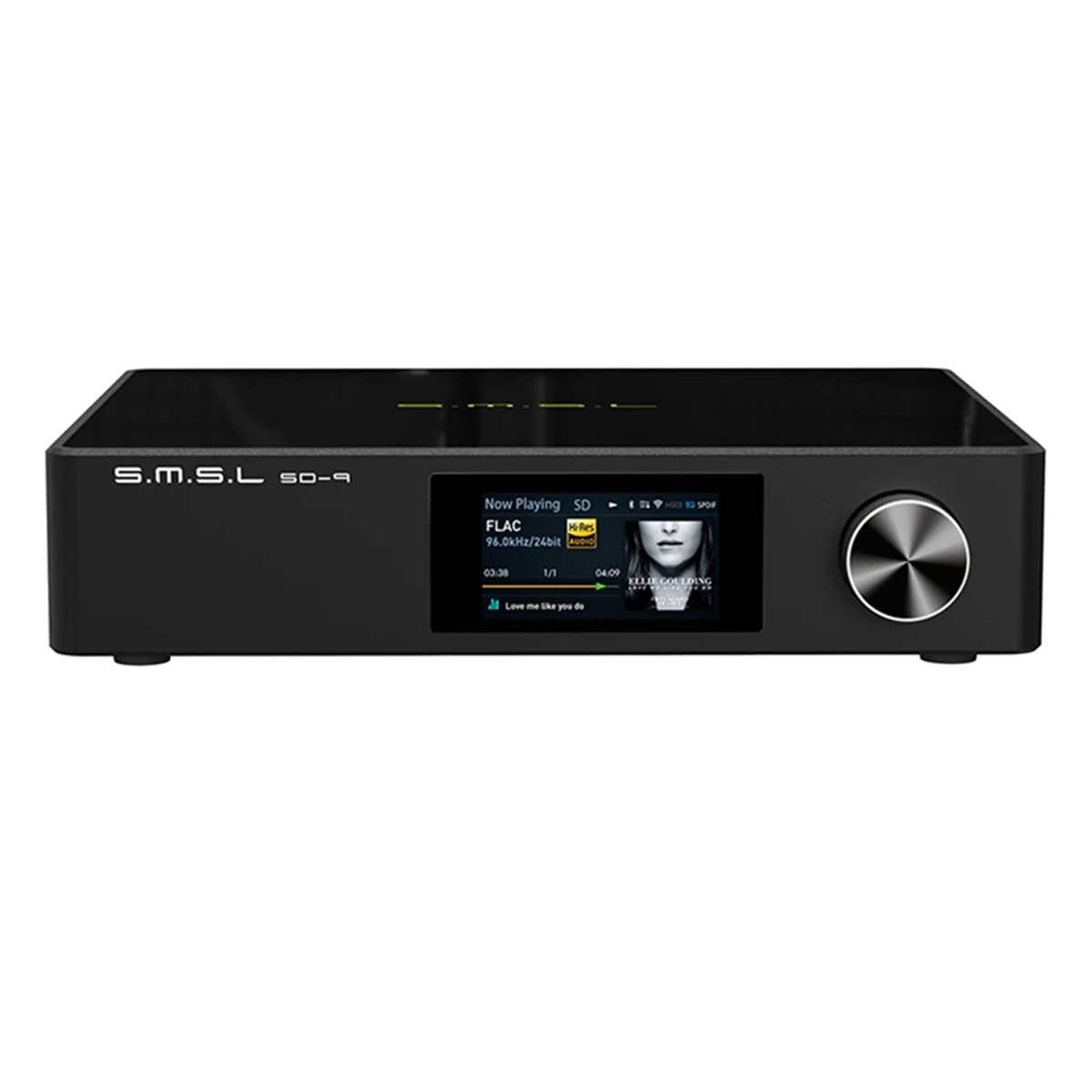

SMSL SD-9 Streamer WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

SMSL's SD-9 is an affordable and versatile network drive. It supports indeed many file formats and has a complete connectivity. The wireless transmission can be done in Bluetooth or in WiFi (DLNA / AirPlay).

Average votes for this product
4.0 / 5

By buying this product you get 41 loyalty points


Reference : 15426
New product

419,00 €tax incl.

349,17 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

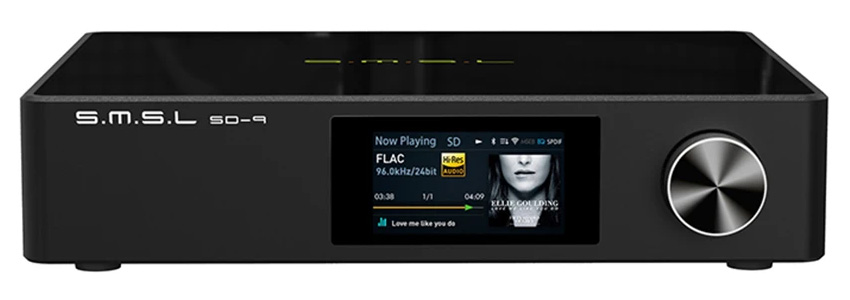

SMSL SD-9

Streamer WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

SMSL's SD-9 is an affordable and versatile network drive. It supports indeed many file formats and has a complete connectivity. The wireless transmission can be done in Bluetooth or in WiFi (DLNA / AirPlay).

SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

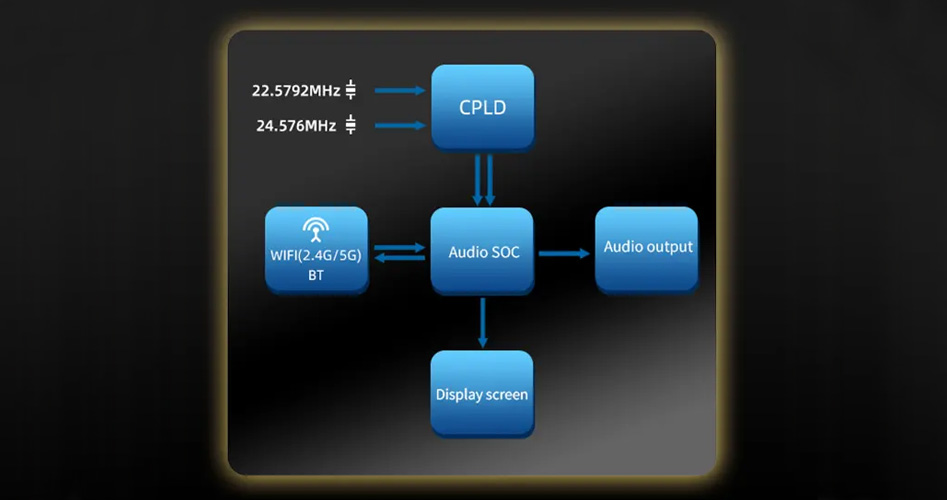

Audio architecture

The SD-9 adopts an architecture based on an ARM SoC and CPLD couple. The SoC takes care of the data decoding, while the CPLD takes care of the clock management of the audio signal. The clock signal is generated by two oscillators (22.5792MHz and 24.576MHz) in order to drastically reduce the jitter level and offer a very accurate sound reproduction.

SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA
SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

MQA support

The SMSL SD-9 is able to decode and play MQA (Master Quality Authenticated) files. These files allow to reach a sound quality as close as possible to the studio recording.

Wireless connectivity

The SD-9 benefits from both wireless transmission via Bluetooth 4.0 and WiFi. It also supports DLNA and Apple AirPlay protocols for optimal compatibility with your other devices.

SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

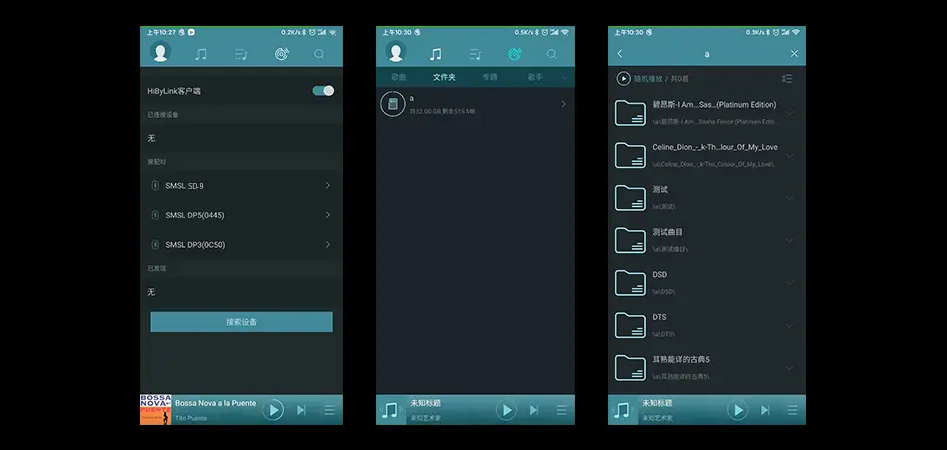

HiBy Link Compatible

The SD-9 will be able to connect very simply to the HiBy Link mobile application. This one will allow you, via a neat and intuitive graphical interface, to manage the playback of your music remotely. Moreover, it will allow you to access the TIDAL streaming service, which offers files in MQA format for a high quality sound reproduction.

SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

A complete connectic

The SMSL network player is equipped with a particularly complete connectic to adapt to all the needs and all the audio systems. We can find in input USB-B (USB Audio), two USB-A connectors to connect storage devices, a slot for Micro SD card and an Ethernet RJ45 connector for a wired network connection. For its outputs, the SD-9 offers Toslink Optical, AES/EBU, Coaxial and I2S LVDS via HDMI.

SMSL SD-9 Lecteur Réseau WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA

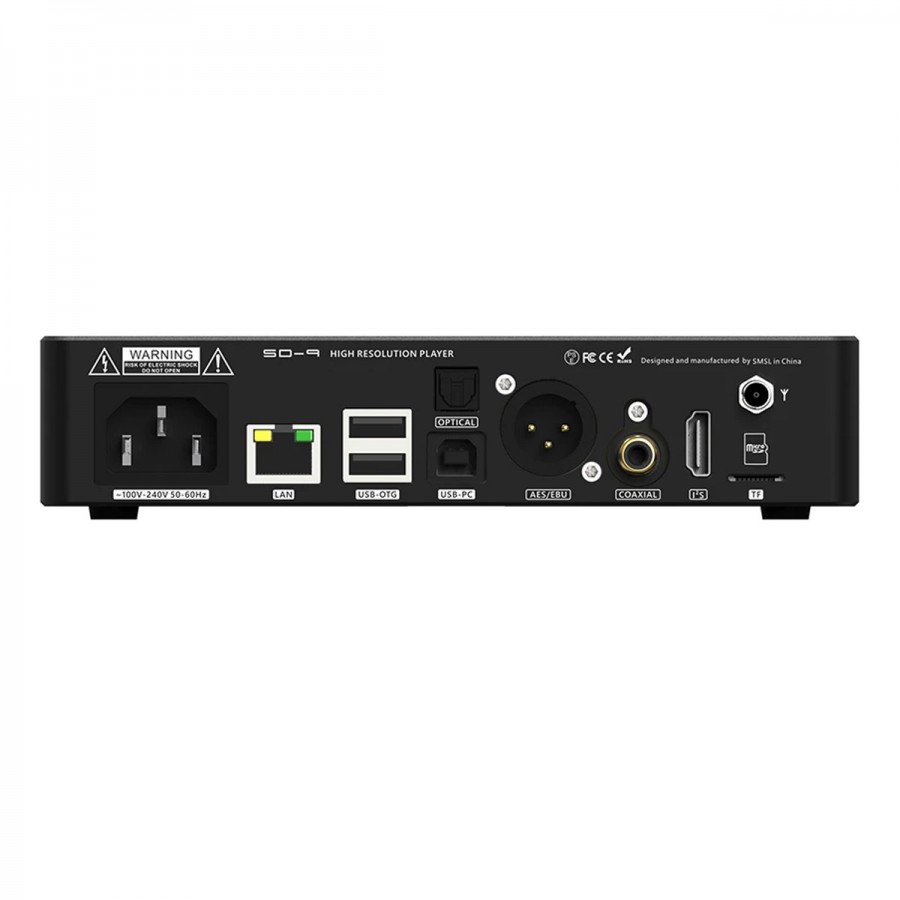

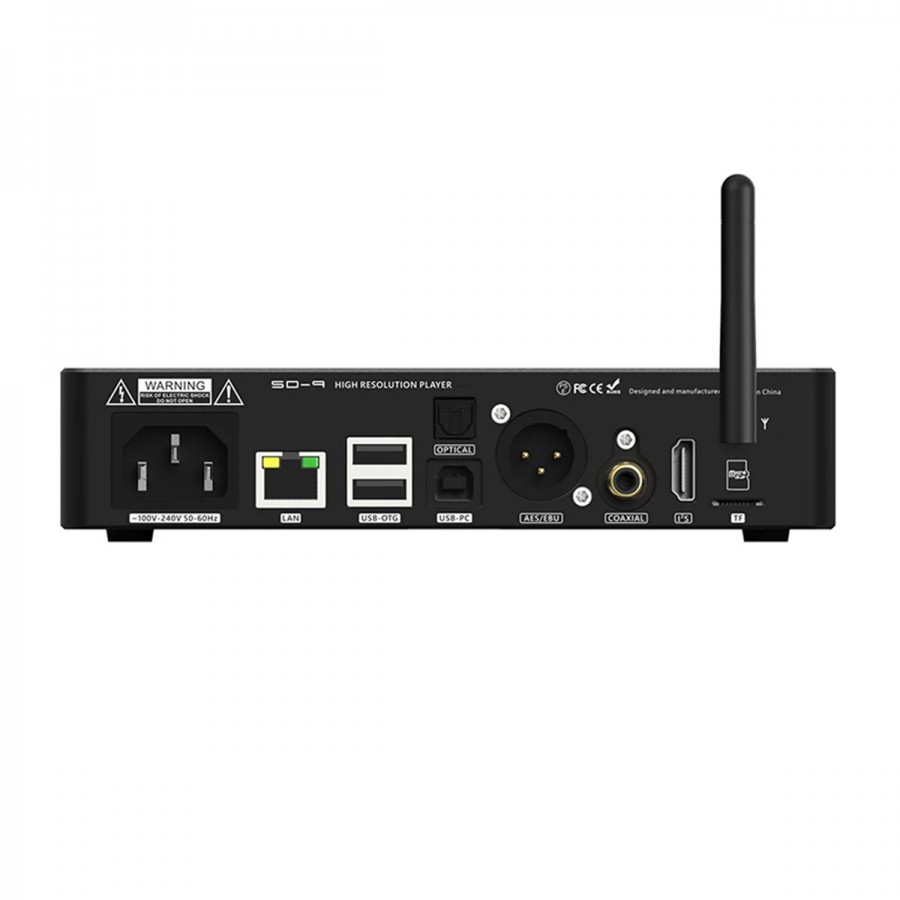

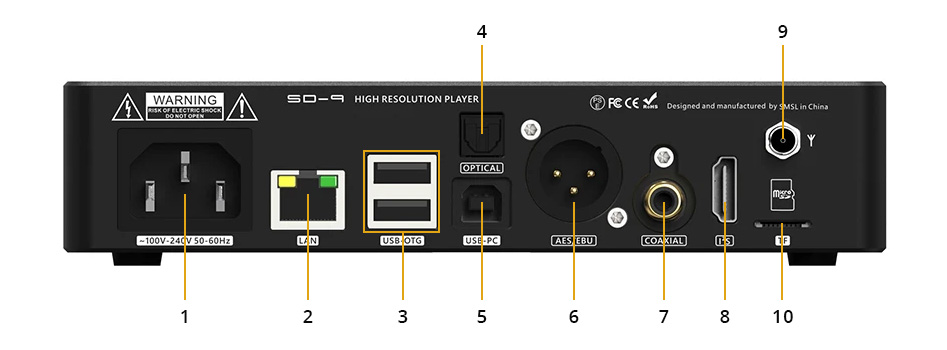

1Power connector 100-240V 50-60Hz
2Ethernet RJ45
3USB-A input (USB Host)
4Optical Toslink output
5USB-B input (USB Audio)
6AES/EBU output
7Coaxial output
8I2S LVDS output via HDMI
9Bluetooth antenna
10Slot Micro SD

Technical characteristics

Specifications
Product typeStreamer
Inputs2x USB-A (USB Host)
1x USB-B (USB Audio)
1x Micro SD slot
Bluetooth
WiFi
1x Ethernet RJ45
Outputs1x Optical Toslink
1x Coaxial
1x AES
Bluetooth
1x USB
I2S LVDS via HDMI
Supported sampling ratesPCM up to 32bit 384kHz
DSD up to DSD256
Max Micro SD card capacity256Go (not included)
Max storage drive capacity4TB
Max USB output current2A
DAC output function
Bluetooth version4.0
Supported Bluetooth codecaptX
HiBy Link compatibility
WiFi bandwidth2.4G/5G
General
Dimensions187.4 x 154.5 x 42mm
Operating consumption2W
Standby consumption0.5W

Data sheet
InputBluetooth
InputRJ45
InputUSB
InputMicro SD
InputWiFi
OutputOptical Toslink
OutputCoaxial SPDIF
OutputAES/EBU
OutputUSB
OutputI2S LVDS via HDMI
OutputBluetooth
DAC / ADC ChipNC
Max sampling rateDSD256
Max sampling rate384kHz
ColorBlack
Remote ControlYes
Streaming services & Network protocolsAirPlay
Streaming services & Network protocolsDLNA

Download

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
SMSL SD-9
Fantastic mediaplayer. Top plate is glass. Luxury feeling. Very convenient ( control via Bluetooth with HibyMusic app on android.
Alot of connections like Bluetooth, Spdif coax and fiber optical and I2S.
 (0)
 (0)
This review has been posted for SMSL SD-9 Streamer WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA
Note :
 3/5
Date :
Avis mitigé
Bonjour,
J'avais pris ce sd-9 pour le connecter en USB à un FDA. Malheureusement pour moi, ce fut la seule sortie à problème, pas de son.
Je l'ai testé rapidement en optique et coaxial, le son est vraiment très bon, précis et sans agressivité.
Le DD externe ainsi que la micro sd ont été reconnu immédiatement.
A noter, l'absence de certaines touches spéciales et monétaires sur le clavier, ce qui m'a posé un problème pour l'accès au NAS.

PS: je remercie Audiophonics pour son professionnalisme.
 (1)
 (0)
This review has been posted for SMSL SD-9 Streamer WiFi DLNA AirPlay Bluetooth 32bit 384kHz DSD256 MQA
