WIIM ULTRA Audio Streamer Silver
By buying this product you get 39 loyalty points
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)

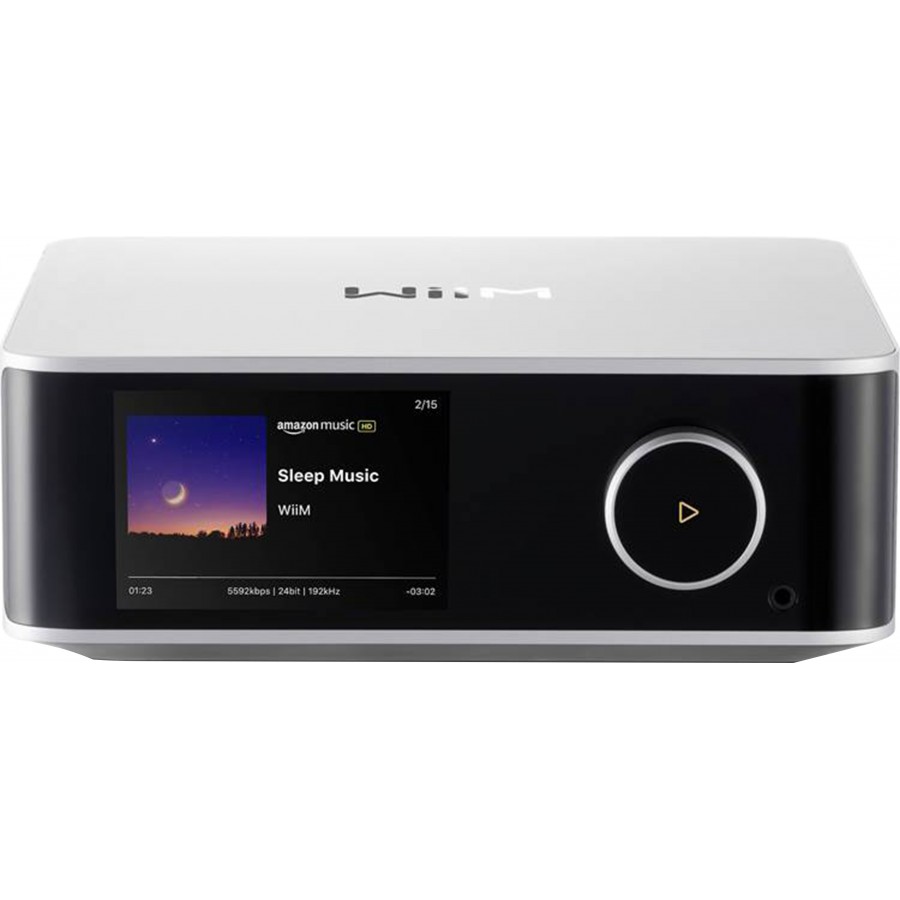

WiiM Ultra Lecteur Réseau DAC ES9038Q2M Bluetooth WiFi 32bit 384kHz Silver
The WiiM Ultra sets a new benchmark in the world of audio streamers, thanks to a design conceived to deliver an unrivalled audio experience. It lets you enjoy your music library and favorite streaming services in a perfectly intuitive way, thanks in particular to a 3.5" color touchscreen and physical navigation button. With its extensive connectivity including WiFi and Bluetooth, you can access your music quickly and easily, whether it's stored on a NAS, computer, smartphone or via a streaming service. What's more, the WiiM Ultra boasts a rich selection of audio inputs and outputs to integrate easily into the vast majority of audio setups.
Key features:
- ESS ES9038Q2M 32bit 384kHz DAC and TPA6120A2 high-fidelity headphone amplifier
- WiFi 6E and Bluetooth 5.3 with dual antennas for incomparable audio streaming quality
- Elegant aluminum chassis. 3.5" color touchscreen
- Built-in room correction, taking precise acoustic measurements of your room to apply settings perfectly optimized for your system and configuration
- Stream Hi-Res music with bit-perfect digital output or high-fidelity analog output (SNR > 120dB, THD+N < 0.00018%)
- Numerous audio streaming options, including Spotify Connect, TIDAl, Google Chromecast Audio (CastLite), Alexa, DLNA, Roon (certification pending) and Squeezelite
- Gapless playback of Hi-Res streams up to 24bit 192kHz via USB, optical, coaxial, RCA or headphone output
High-quality sound
Incorporating a digital-to-analog conversion stage based on an ESS ES9038Q2M DAC chip, the WiiM Ultra is capable of supporting high-resolution PCM streams up to 32bit 384kHz, while offering rich, precise and transparent sound reproduction. The device also features a headphone amplifier, using a TPA6120A2 chip, opening up the possibility of headphone listening.
Extensive wireless connectivity
With support for WiFi 6E and Bluetooth 5.3, the WiiM Ultra opens the door to foolproof audio streaming. What's more, this streamer is compatible with numerous transmission protocols: Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa, DLNA, Roon (currently being certified) and Squeezelite. What's more, you'll enjoy bit-perfect, gapless audio streaming.
Integrated room correction technology
The WiiM Ultra's built-in room correction technology actively takes precise acoustic measurements of your room, creating customized corrections perfectly matched to your audio system and environment.
| 1 | Screen |
| 2 | Multifunction knob |
| 3 | Jack 3.5mm headphone output |
| 4 | Stereo RCA input |
| 5 | Phono RCA input |
| 6 | Optical Toslink input |
| 7 | HDMI ARC port |
| 8 | USB-A port |
| 9 | Stereo RCA output |
| 10 | Subwoofer output |
| 11 | Coaxial output |
| 12 | 12V Trigger output |
| 13 | Optical Toslink output |
| 14 | Ethernet RJ45 port |
| 15 | Power connector |
Test du WiiM Ultra par Audio Science Review
"The WiiM Ultra is a high-performance streaming device, thanks to its excellent codec implementation. The wealth of features is another plus, as is the application. However, the headphone and phono outputs offer average performance, and the Bluetooth doesn't support LDAC. Nevertheless, I'm going to recommend the WiiM Ultra. There are so many incredible possibilities that, combined with an excellent codec and reasonable cost, it's hard to pass on it."
Technical characteristics
| Specifications | |
|---|---|
| Product type | Audio streamer |
| Inputs | 1x Stereo RCA 1x Phono input (RCA) 1x Optical Toslink 1x HDMI ARC 1x USB-A 1x Ethernet RJ45 |
| Outputs | 1x Stereo RCA 1x Coaxial 1x Optical Toslink 1x Subwoofer output (RCA) 1x Jack 3.5mm headphone output |
| Connectivity | WiFi 6E 802.11 g/b/n/ax 2.4GHz, 5GHz, 6GHz Ethernet 10M/100Mbps Bluetooth 5.3 |
| DAC chip | ES9038Q2M |
| Bluetooth version | Bluetooth 5.3 BLE / BT LE Audio A2DP, AVRCP, HID receiver and transmitter support Works with WiiM voice control |
| Supported sampling rates | Input: PCM up to 32bit 384kHz Output: PCM up to 24bit 192kHz |
| Supported Bluetooth codecs | SBC, AAC |
| Max output level (line out) | 2.1Vrms |
| SNR (line out) | 121dB(A) |
| THD+N (line out) (1kHz) | 0.00018% (-115dqB) from 44.1kHz to 192kHz |
| FR curve | ±0.05dB |
| USB transmission mode | Asynchronous |
| USB compatibility | Windows 7 / 8 / 8.1 / 10 / 11 (driver required) Mac OSX10.6+ Linux |
| EQ | Graphic 10 bands Parametric 10 bands Independent for each source |
| Subwoofer output | Bass management Adjustable latency, phase, level and filter |
| Trigger | Output (12V) |
| Touchscreen | 3.5" |
| Supported streaming services | Deezer Qobuz Amazon Music Tidal Pandora Napster Apple Music TuneIn iHeartRadio LinkPlay Radio Spotify Connect |
| General | |
|---|---|
| Supply voltage | 100-240VAC |
| Dimensions | 205 x 205 x 73mm |
| Housing material | Aluminum |
| Color | Silver |
| Package | 1x Wiim ULTRA 1x Power cable C7 1x Télécommande |
| Input | USB |
| Input | Optical |
| Input | RJ45 |
| Input | WiFi |
| Input | RCA |
| Input | Bluetooth |
| Input | Phono |
| Input | HDMI ARC |
| Output | RCA |
| Output | Coaxial SPDIF |
| Output | Optical Toslink |
| Output | Jack 3.5mm |
| Output | Subwoofer |
| DAC / ADC Chip | ES9038Q2M |
| Max sampling rate | 384kHz |
| Max sampling rate | 192kHz |
| Color | Silver |
| Remote Control | Yes |
| Streaming services & Network protocols | DLNA |
| Streaming services & Network protocols | Tidal Connect |
| Streaming services & Network protocols | Chromecast |
| Streaming services & Network protocols | Spotify Connect |
| Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
