DAYTON AUDIO PPA800DSP 2 Way Amplifier Module 800W DSP Bluetooth 5.0 TWS

DAYTON AUDIO PPA800DSP 2 Way Amplifier Module 800W DSP Bluetooth 4.2
The Dayton Audio PPA800DSP is an amplifier module capable of developing 800W of power, separated into 2 channels: 600W for low frequencies, 200W for high frequencies. The PPA800DSP incorporates a DSP allowing it to be an excellent amplifier for mounting a configurable 2-way active speaker.

No customer reviews yet, login to write a review.

By buying this product you get 52 loyalty points


Reference : 13325
New product

529,00 €tax incl.

440,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 05-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

DAYTON AUDIO PPA800DSP

2 Way Amplifier Module 800W DSP Bluetooth 5.0

Dayton Audio PPA800DSP Module Amplificateur 2 Voies 800W DSP Bluetooth 4.2

The Dayton Audio PPA800DSP is an amplifier module capable of developing 800W of power, separated into 2 channels: 600W for low frequencies, 200W for high frequencies. The PPA800DSP incorporates a DSP allowing it to be an excellent amplifier for mounting a configurable 2-way active speaker. Thanks to its compact size, it can also be a very good choice for modifying passive speakers. Beyond its audio qualities, Dayton Audio's PPA800DSP offers many features that make it easy to customize your system.

A fully configurable DSP

The real strength of the PPA800DSP is most likely its customizable integrated DSP. For example, Windows software with a clear and ergonomic interface allows you to adjust levels, filters, equalizers and effects. It is therefore possible to customize the reproduction of this amplifier according to each type of speaker and listening, while offering the possibility of saving profiles.

Dayton Audio PPA800DSP Amplificateur DSP Filtres réglables

Adjustable filters

The PPA800DSP allows you to adjust the high-pass and low-pass filters on each output (12 to 48dB/Octave). You can create a seamless transition from your woofer to your tweeter, without the need for passive crossover. In addition, you can also create a subsonic filter to protect the bass drivers or control the tweeters by increasing their response in the high frequencies.

Parametric EQ

For equalization, the PPA800DSP includes 6 bands for each output to adapt the response curve to your needs. In addition, the DSP can store 5 equalizer profiles for quick changes in different situations.

Insérer texte alternatif ici
Insérer texte alternatif ici

Built-in customizable protection

Professional audio playback systems are designed to operate at full capacity for long periods of time. Under these conditions, it is essential for the equipment to have sufficient protection. Thus, the PPA800DSP includes an adjustable limiter to keep the amplifier output under control. Via different parameters, it is therefore possible to effectively preserve your equipment while keeping all its dynamics.

Adjustable delay time

An important but often overlooked point in the sound and sound dispersion of loudspeakers is the alignment of time. The adjustment of the high and low frequency delay (increment in 0.1ms steps) allows you to make sure that the sound from each speaker reaches you at the same time. It is also possible to calibrate this delay between your speakers and your subwoofer, which can be positioned in a different location.

Insérer texte alternatif ici

2 way mixer with Bluetooth

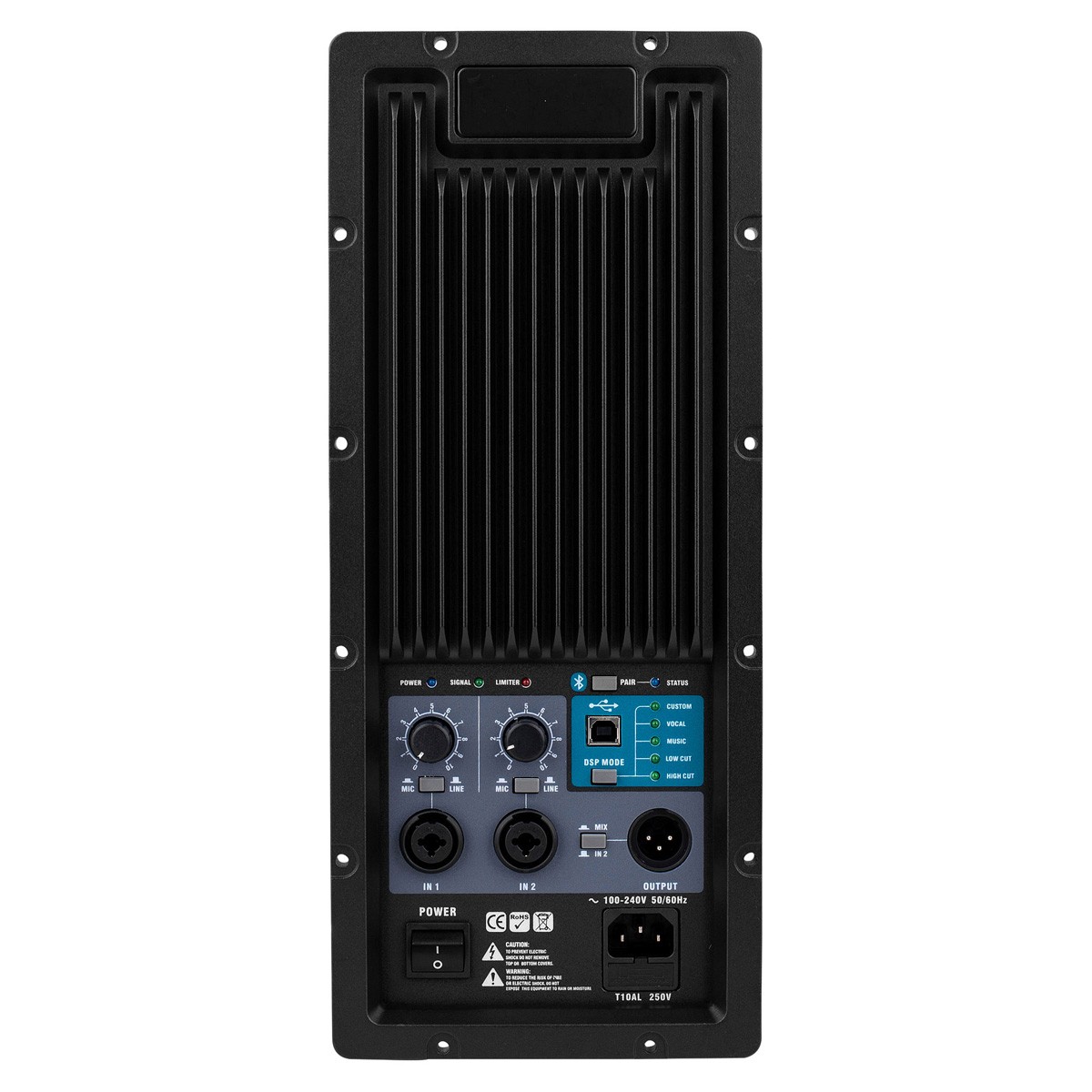

The PPA800DSP also offers a 2-channel mixer integrated directly on the module. Each channel can adjust its XLR input level, line or microphone. In addition, the module integrates a Bluetooth receiver, allowing you to broadcast your music from any device equipped with this technology (smartphone, tablet...). The mixer section also includes an XLR line output to transmit the signal to another powered speaker or subwoofer. It is thus possible to choose between sending the mixed signal or only the channel 2 signal. Finally, the mixer section also features 4 status LEDs: Power, Signal, Limiter and Bluetooth.

Insérer texte alternatif ici

Technical characteristics

Specifications
Product typeAmplifier module
PowerLow frequencies : 600W RMS (4 Ohm 1kHz @ THD+N 1%)
High frequencies : 200W RMS (4 Ohm 8 kHz @ THD+N 0.1%)
Amplifier typeClass D
Input sensitivityLine : 0dBu
MIC : -24dBu
Bluetooth version5.0
Power supply120~240 VAC 50/60Hz
Dimensions38.1 x 16 x 7cm
Cutout diameter35.56 x 13.97cm
Weight2.3kg
ColorBlack
Delivered withUSB cable, screws, EU power Cable

Data sheet
InputXLR
InputJack 6.35mm
OutputXLR
ClassClass D / T
Amplifier chipN/A
Power (W)800.0
