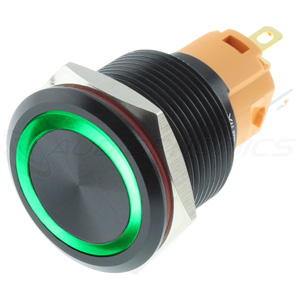

BISTABLE PUSH BUTTON
1 pole 2 positions 1NONC 250V
1NONC type button with green indicator light. Operates from a bistable mechanism (two possible positions).
The connectors dedicated to the signal / power supply are gold plated and can support a voltage of 250V / 3A. Those dedicated to the power supply of the indicator light (LED) can accept voltages between 9 and 24V.
An ideal part for your projects, DIY assembly, to repair / improve an existing device or build a control panel from scratch.
| Characteristics | |
|---|---|
| Product type | Push button 2 positions 1NONC |
| Screw thread diameter | 19 mm |
| Max panel thickness | 13 mm |
| Total dimensions | 28 mm x ⌀22 mm |
| Button diode | Green LED Voltage 9-24V |
| Number of pins | 5 |
| Voltage / Current | 250VAC / 3A |
| Mechanical life | 800000 cycles |
| Reference life | 40.000 hours |
| Operating temperature | -30°C, +80°C |
| Insulation | >= 1000mΩ |
| Dielectric strength | 1000VAC min |
