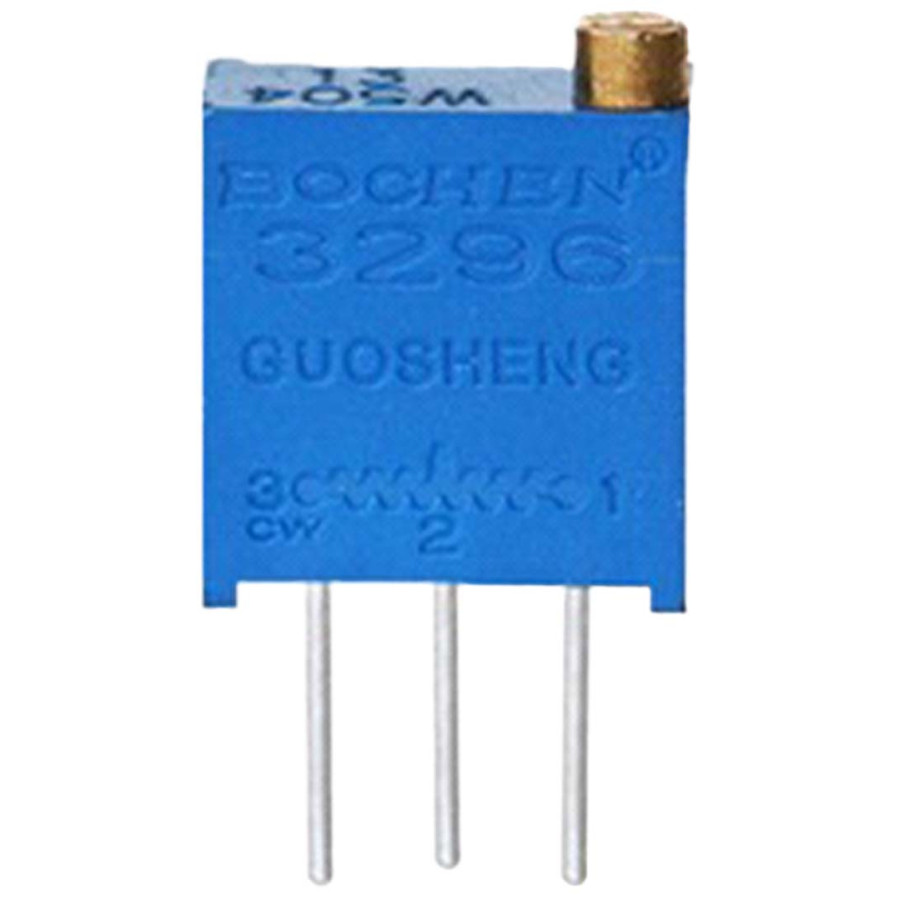

3296W-1-103 Multiturn Trimming Potentiometer 10K Ohm
This 10K Ohm precision multiturn potentiometer allows a wide variety of settings on electronic circuits. It can be used extensively in your fixtures to make extremely precise adjustments.
No loyalty points for this product.
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)

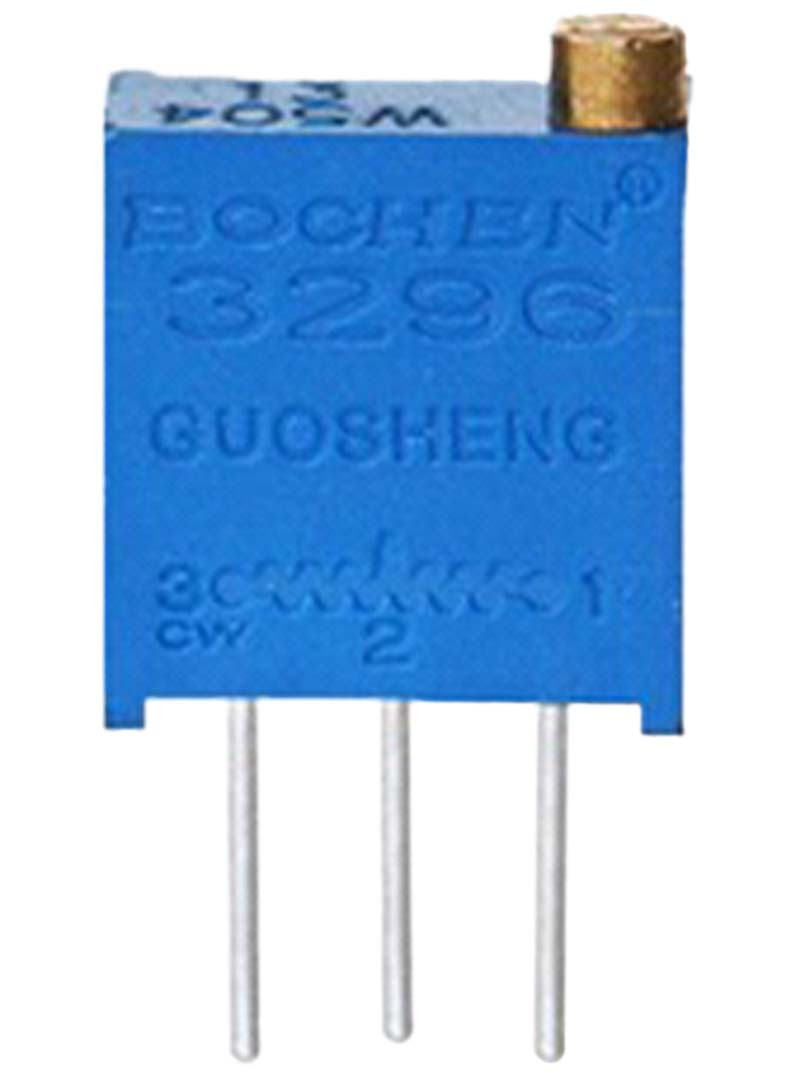

Potentiometer 3296W-1-103
Multiturn precision potentiometer 10K Ohm
This 10K Ohm precision multiturn potentiometer allows a wide variety of settings on electronic circuits. It can be used extensively in your fixtures to make extremely precise adjustments.
Technical characteristics
| Specifications | |
|---|---|
| Track resistance | 10K Ohm |
| Number of turns | 25 |
| Potentiometer mounting | Through hole |
| Power rating | 500mW |
| Resistance tolerance | +- 10% |
| Operating temperature range | -55°C / +125°C |
| Temperature coefficient | +- 100ppm/°C |
| Dimensions | 11.6 x 10 x 4.8mm |
| Number of pins | 3 |
| Space between pins | Approx. 2.5mm |
