ELECTRO HARMONIX 6V6 Power Tube Tetrode (Unit)
The Electro Harmonix 6V6 is a robust and musical tetrode power tube that operates smoothly up to 475V. It is an excellent choice for single-ended amplifiers or for amplifiers with high plate voltage.
No customer reviews yet, login to write a review.
By buying this product you get 2 loyalty points
Reference : 16033
New product
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Electro Harmonix 6V6
Tetrode Power Tube
The Electro Harmonix 6V6 is a robust and musical tetrode power tube that operates smoothly up to 475V. It is an excellent choice for single-ended amplifiers or for amplifiers with high plate voltage.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Tube |
| Tube type | Tetrode |
| Number of pins | 6 |

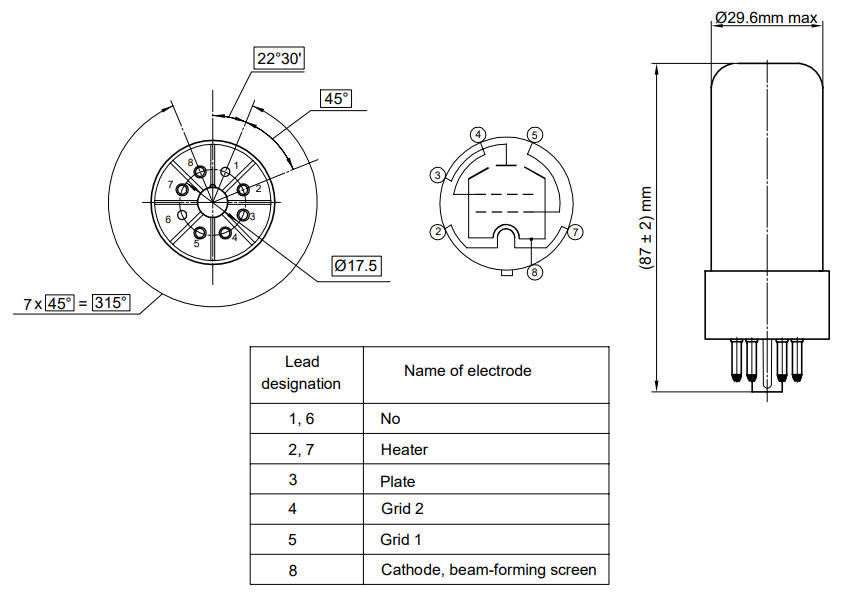

| Dimensions | Ø29.6 x 87mm |
| Electrical parameters | |||
|---|---|---|---|
| Parameter | Conditions | Min | Max |
| First grid reverse current | Filament voltage 6.3V, plate voltage 250V, grid voltage #2 250V, grid circuit resistance #1 0.1MΩ | - | 2µA |
| Heater current | - | 460mA | 530mA |
| Plate current | Filament voltage 6.3V, plate voltage 250V, grid voltage #2 250V | 33mA | 56mA |
| Second grid current | Filament voltage 6.3V, plate voltage 250V, grid voltage #2 250V | - | 8mA |
| Output power | Filament voltage 6.3V, plate voltage 250V, grid voltage #2 250V, plate circuit resistance 5kΩ | 3.2W | - |
| Limit values | |||
|---|---|---|---|
| Parameter | Min | Max | |
| Filament voltage | 5.7V | 7V | |
| Cathode - heater voltage | - | +/-180V | |
| Power dissipation at the plate | - | 13.2W | |
| Power dissipation at the second grid | - | 2.2W | |
| First grid circuit resistance | Self bias Fixed bias | 0.51MΩ 0.1MΩ | |
