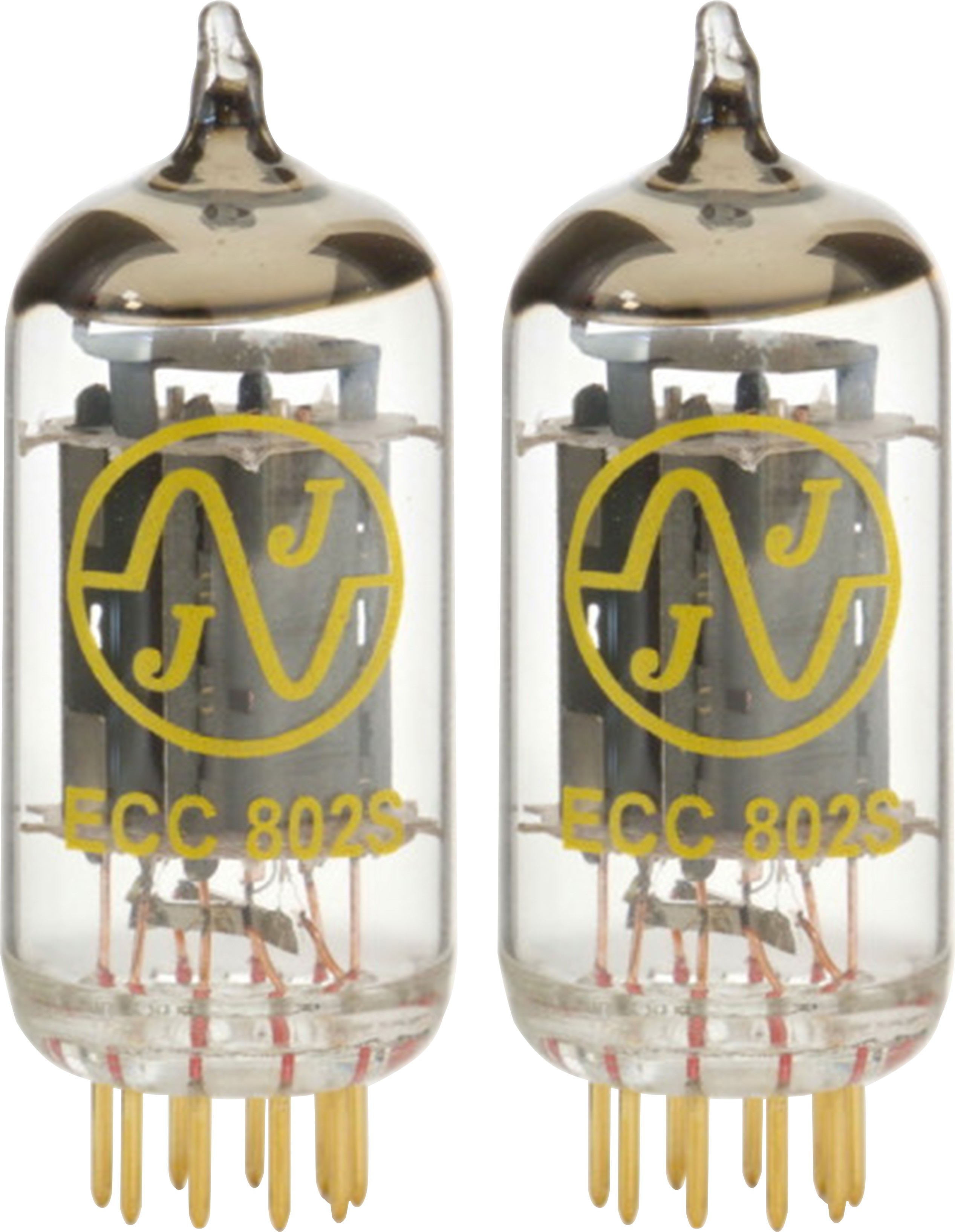

JJ ELECTRONICS ECC802S / 12AU7 GOLD Tubes (Matched Pair)
The ECC802S / 12AU7 from JJ Electronics is a dual triode preamplifier tube. This hi-fi quality tube is perfect for replacing a 6189, 12AU7WA, E82CC or CV4003 tube or for integration into a DIY audiophile project.
No customer reviews yet, login to write a review.
By buying this product you get 10 loyalty points
Reference : 19487
New product
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)

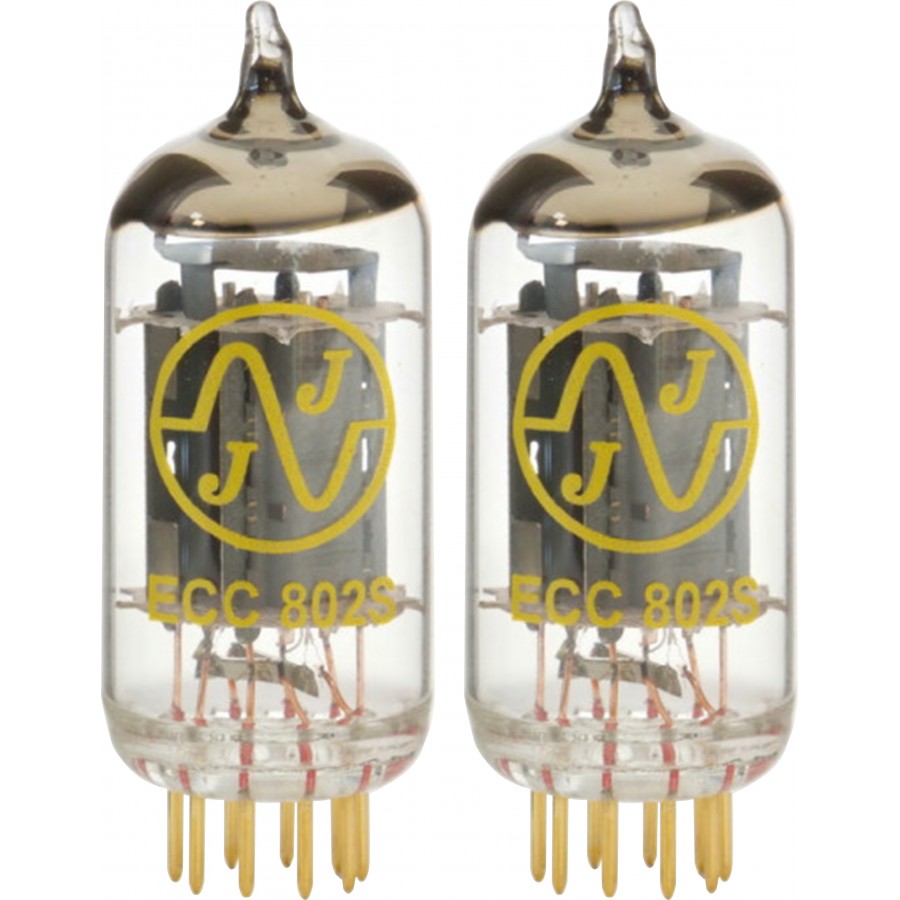

JJ ELECTRONICS ECC802S / 12AU7 GOLD Tube Dual Triode Preamplifier Tube (Matched Pair)
The ECC802S / 12AU7 GOLD from JJ Electronics is a dual triode preamplifier tube. This hi-fi quality tube is perfect for replacing a 6189, 12AU7WA, E82CC or CV4003 tube or for integration into a DIY audiophile project.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Preamp tube |
| Tube type | Dual triode tube |
| Compatibility | 6189, 12AU7WA, E82CC, CV4003 |
| Pole numbers | 9 |
| Caractéristiques types | |
|---|---|
| Filament heating voltage (Uf) | 6,3/12,6 V |
| Filament heating current (If) | 300/150 mA |
| Anode operating voltages (Ua) | 250 V |
| Cathode resistor (Rk) | 800 Ω |
| Plate current (Ia) | 10,5 mA |
| Mutual conductance (S) | 2,2 mA/V |
| Control grid impedance (Ri) | 7,7 kΩ |
| Amplification power (µ) | 17 |
| VALEURS MAX. | |
|---|---|
| Anode operating voltages (Ua) | 330 V |
| Anode dissipation (Wa) | 3 W |
| Cathode current (Ik) | 22 mA |
| Grid control voltage (Ug) | - 55 V |
| External resistor control grid (Rg) | 1 MΩ |
| Cathode voltage (Uk) | 100 V |
| CAPACITANCES | |
|---|---|
| Capacitance between control grid and cathode (Cg/k) | 1,6 pF |
| Capacitance between anodes (Ca) | 0.5 pF |
| Capacitance between control grid and anode (Cg/a) | 1.5 pF |
| Général | |
|---|---|
| Dimensions | Ø22.2 x 57.6mm |
| Package | Sold by pair |
