PSVANE KT66GC Power Tubes (Matched Pair)
These PSVANE KT66GC tubes are power tetrodes from the PSVANE "Legend" series. They are ideal for DIY HiFi design, or as replacements for similar models such as the EL34, 6L6 or, KT77 or the original KT66 from GEC. Their baseplate has 7 pins. They are sold factory-paired in pairs.
No customer reviews yet, login to write a review.
By buying this product you get 34 loyalty points
Reference : 18288
New product
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)

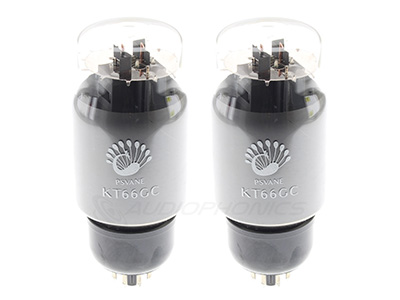

PSVANE KT66GC
Power Tubes (Matched pair)
These PSVANE KT66GC tubes are power tetrodes from the PSVANE "Legend" series. They are ideal for DIY HiFi design, or as replacements for similar models such as the EL34, 6L6 or, KT77 or the original KT66 from GEC. Their baseplate has 7 pins. They are sold factory-paired in pairs.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power tubes |
| Tube type | Tetrode |
| Contact number | 7-pin |
| Filament heating | |
|---|---|
| Uh | 6.3V |
| Ih | 1.27A |
| Limit values | ||
|---|---|---|
| Tetrode configuration | Triode configuration | |
| Plate voltage | 500V | 400V |
| Plate dissipation power | 25W | 25W |
| Grid 2 voltage | 400V | |
| Grid 2 dissipation power | 35W | |
| Cathode current | 200mA | |
| Heater voltage between cathodes | ±100V | |
| Grid 1 resistance | Fixed bias : 0.1MΩ Self-bias : 0.5MΩ | |
| Capacitances | ||
|---|---|---|
| Tetrode configuration | Triode configuration | |
| Input capacitance | 16pF | 8.7pF |
| Output capacitance | 11.5pF | 15.8pF |
| Muller capacitance | 1.1pF | 7.2pF |
| DC Parameters | |
|---|---|
| Ua | 250V |
| Ug2 | 250V |
| -Ug1 | 15V |
| Ia | 85mA |
| Ig2 | 6.3mA |
| Gm | 6.3mA/V |
| ri | 22.5kΩ |
| RL | 2.2kΩ |
| Pout | 7.25W |
| Dtot | 9% |
