PSVANE WE101D REPLICA HiFi Tubes (Matched Pair)

10%

These Psvane WE101D tubes are perfect replicas of Western Electric's 101Ds, now extremely rare and expensive. These are tubes of exceptional quality, offering absolutely exceptional precision and linearity.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 12863
New product
Limited time offer:

569,00 €tax incl.

-10%

512,10 €tax incl.

426,75 € tax excl.
Including 0,01 € for green tax

- +


Shipping date: 26-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

3 >Month warranty

More info

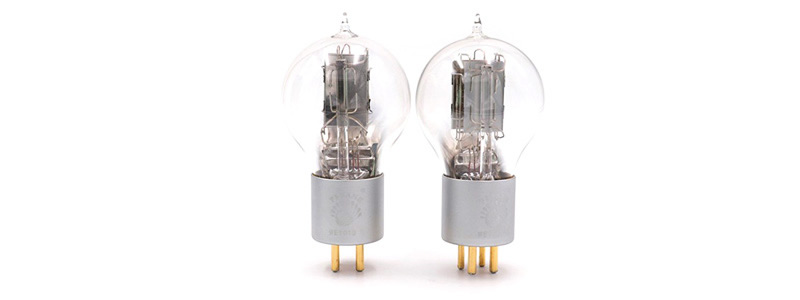

PSVANE WE101D REPLICA

High End Hi-Fi Matched Tubes (Pair)

PSVANE WE101D REPLICA Tubes Hifi high-end Appairés (la paire)

A bit of history

101D tubes were first designed by Western Electric in the early 20th century. It is a triode tube with direct heating, like the 300B but with a lower output and extremely precise low voltage amplification allowing excellent fidelity and linearity on all frequencies. At the time used in telecommunications, Western Electric never authorized the use of 101Ds by any other company. Thus, they have become extremely difficult to find today and the few remaining units display very high prices.

Top-of-the-range matched tubes

Because these tubes are of absolutely exceptional quality, offering precision and perfect fidelity, Psvane has created the WE101D Replica. This will allow 101D amplifier owners to enjoy the full potential of their system, without having to pay thousands of euros. Moreover, these Psvane tubes are perfectly matched to offer identical reproduction on each channel.

A few things to check before changing your 101D tubes

  • Filament voltage and current: The filament voltage of the WE101D is 4.5V and its amperage is 1A. Check these settings to prevent damage to your device.
  • The tubes socket: Check that your tubes to replace are perfectly identical to the Western Electric 101D, namely 4 short pins, as shown in the diagram below. If the pins are of different lengths and thicknesses, they may be WE101D-L tubes.

Caractéristiques techniques

Spécifications
Typical operating parameterHeater voltage : 4.5V
Heater current : 1A
Ua : 190V
Ia : 6.4mA
Ug : -18V
Min / Max parametersHeater voltage : Min 4V / Max 5V
Ua : Max 300V
Ia : 30mA
Pa : 15W
Direct interelectrode capcitancesInput : 4.8 uuF
Output : 5.2 uuF
Grid to Plate : <= 3.3 uuF
Recommended burn-in time80 - 150 hours
MaterialsAluminium base
Gold plated pins
Max diameter60mm
Total height120mm
Without pins height105mm

Data sheet
Contacts number4
Tube typeTriode

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
