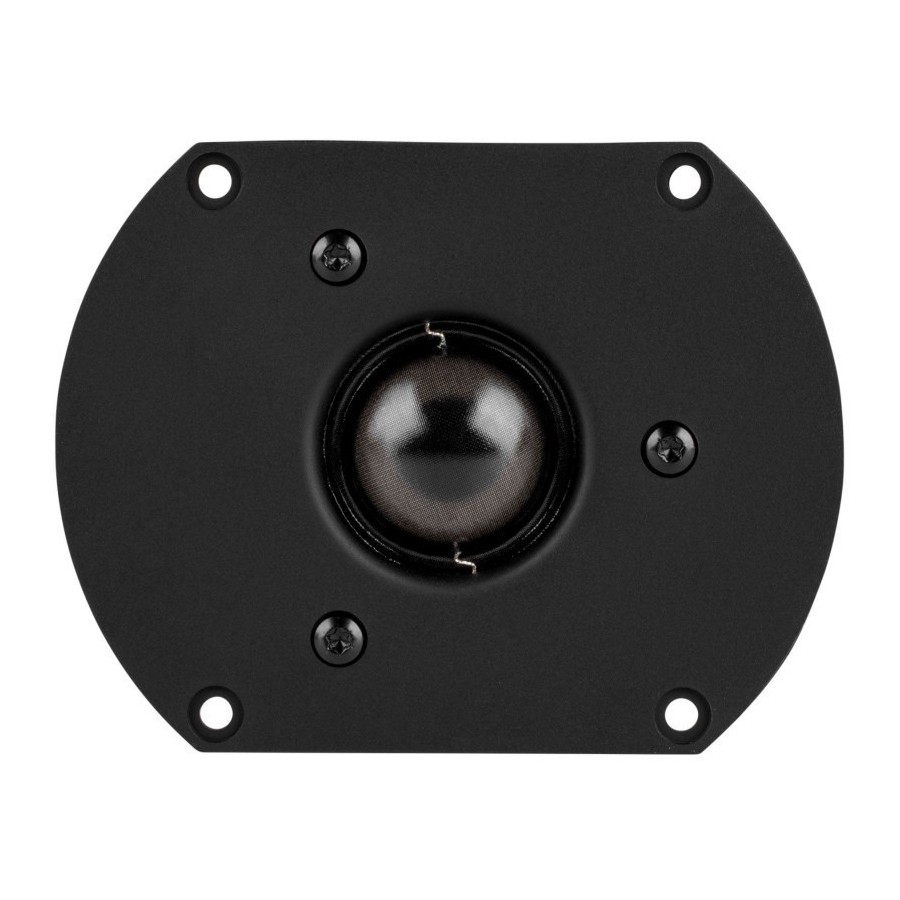

DAYTON AUDIO DC28FT-8 Speaker Driver Dome Tweeter Silk 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm

Inspired by the designs and designs of European tweeters, the Dayton Audio DC28FT-8 1-1 / 8 is often compared to Danish and Norwegian references with much more expensive 28mm silk domes. It takes the same technologies from these competitors at a fraction of their prices.

Technical advantages:

• Internal rear chamber for low connection frequency (834hz)
• Tweeter with silk dome 28mm for a better compromise power and directivity
• Powerful 74mm magnetic motor
• The fabric dome allows a silky, soft and always pleasant sound
• Large gold-plated contacts terminals compatible with lugs

His dome silk and hispowerful magnetic motormake it an excellent competitor unassailable in this price range. Its truncated face allows an integration closer to the low medium in order to reinforce the sound cohesion. It will be ideal for use MTM (medium, tweeter, medium) of Appolito type for example.

Features:

• Tweeter type Soft silk dome
• Diameter 28mm
• Impedance 8 ohms
• Power Consumption: 50 Watts (RMS)
• Bandwidth: 1,300 to 20,000 Hz
• Sensitivity: 89 dB 1W / 1m


Specifications:

• Re: 5.5 ohms
• On: 0.09 mH @ 10khz
• Fs: 834Hz
• Qms: 0.81
• Qes: 1.33
• Qts: 0.5
• Coil: 29mm
• SPL: 89 dB @ 1W / 1M
• Acceptable Power: 50W RMS
