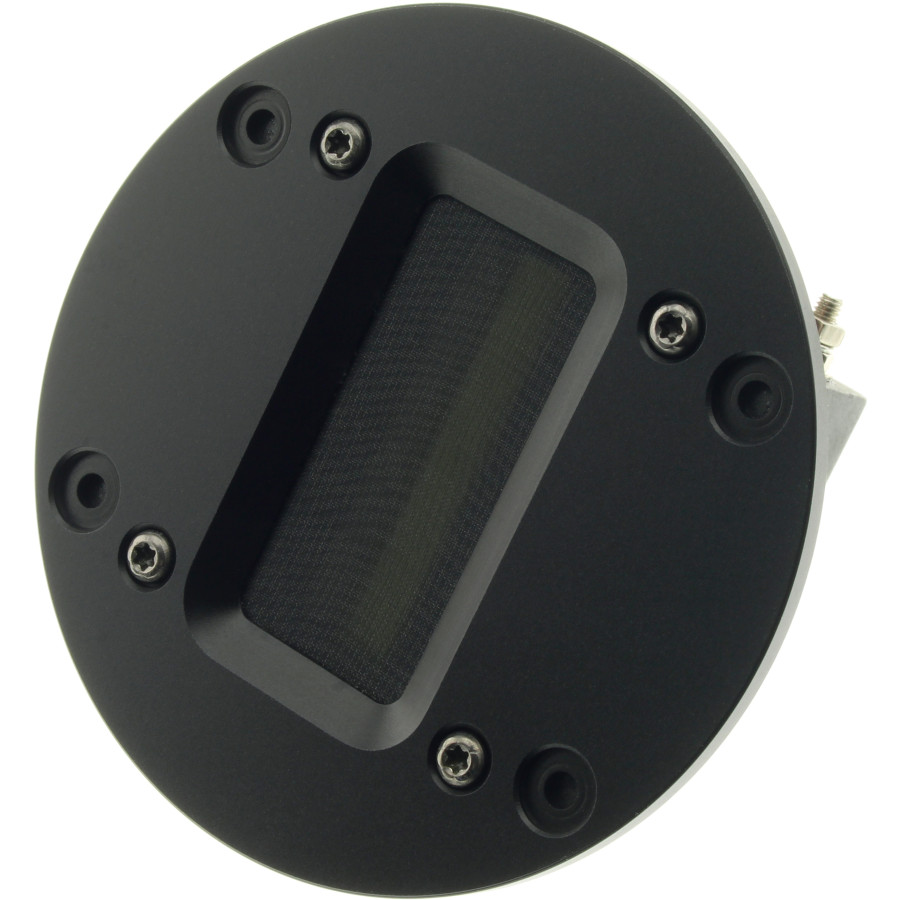

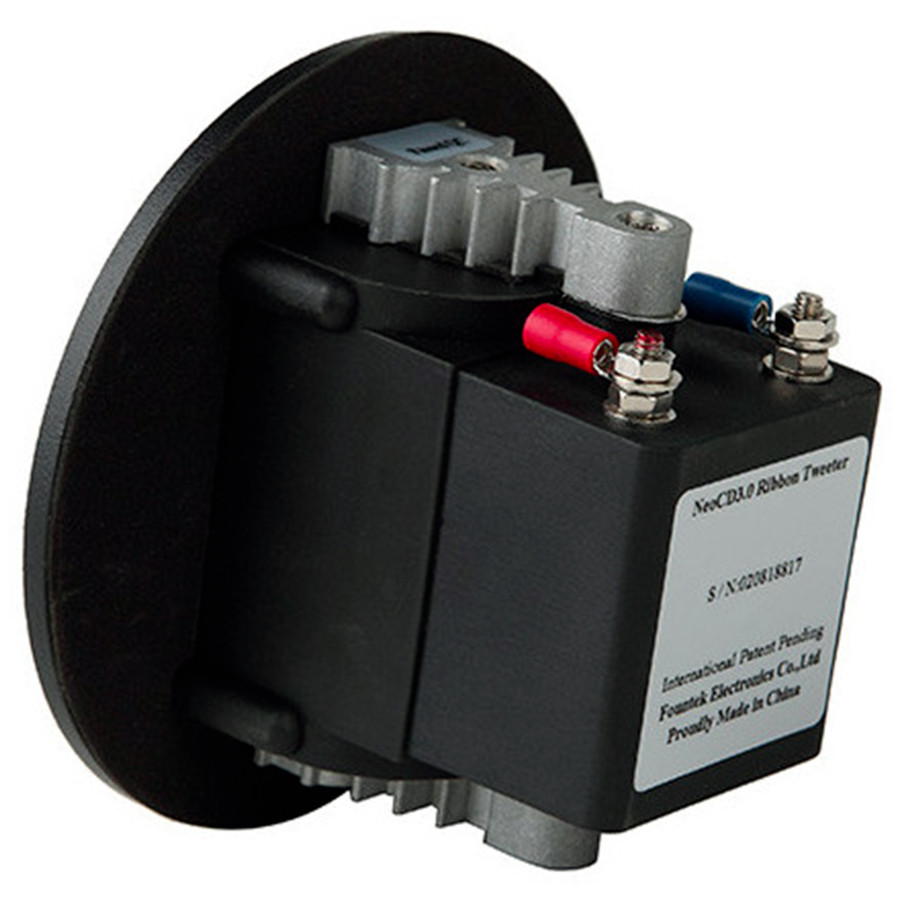

FOUNTEK NEO CD3.0 Speaker Driver Ribbon Tweeter 17W 7 Ohm 95dB 1400Hz - 40kHz Ø6cm

The Fountek Neo CD3.0 ribbon tweeter has the advantages of this technology:

• Flat frequency response
• High Quality Harmonics
• Transition, impulse response faster than a conventional tweeter
• Low resonance at 400hz
• Yield of 95dB

The Fountek ribbon tweeters are equipped with a low induction impedance transformer allowing the ribbon to adapt perfectly to the amplifiers on the market.

Here is an excellent choice competing with the best dome tweeters from the market for a lower price.

The series Neo-Fountekhas a thick ribbon (0.02mm) and can be used with a 12dB / oct filter.

:

• Ribbon Weight: 18mg
• Ribbon dimensions: 8x60x0.02mm
• Ribbon surface: 480mm²
• Impedance: 7 Ohm
• DCR: 0.02 ohm
• Sensitivity: 95dB / M / W
• Frequency response: 1400 ~ 40000Hz
• Resonant Frequency: 400Hz
• Power: 17W, 40W Max
• Weight: 650g

Warning !Ribbon tweeters with transformers require a high-pass fitting of the direct current to avoid any damage with the amplifiers.
