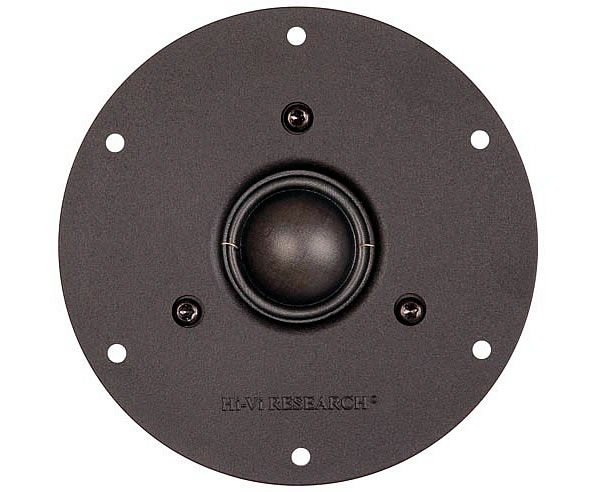

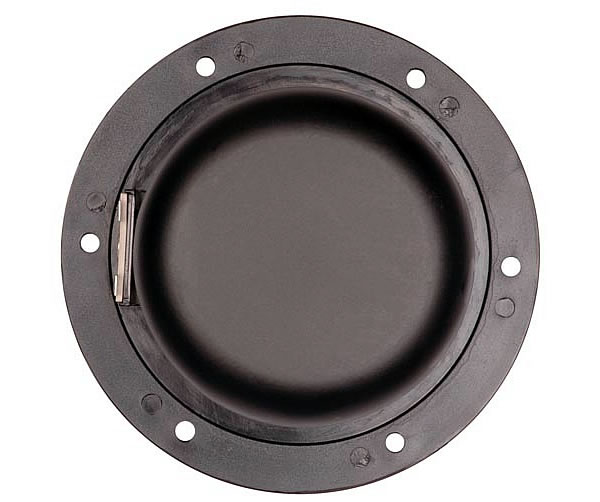

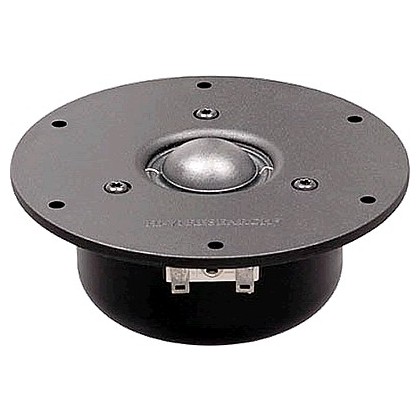

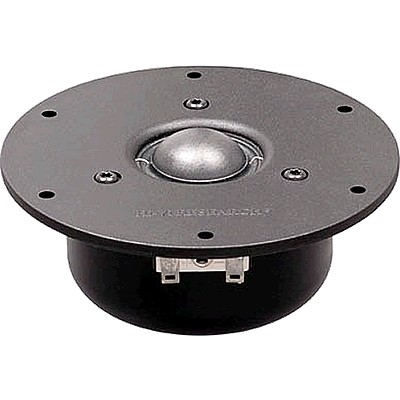

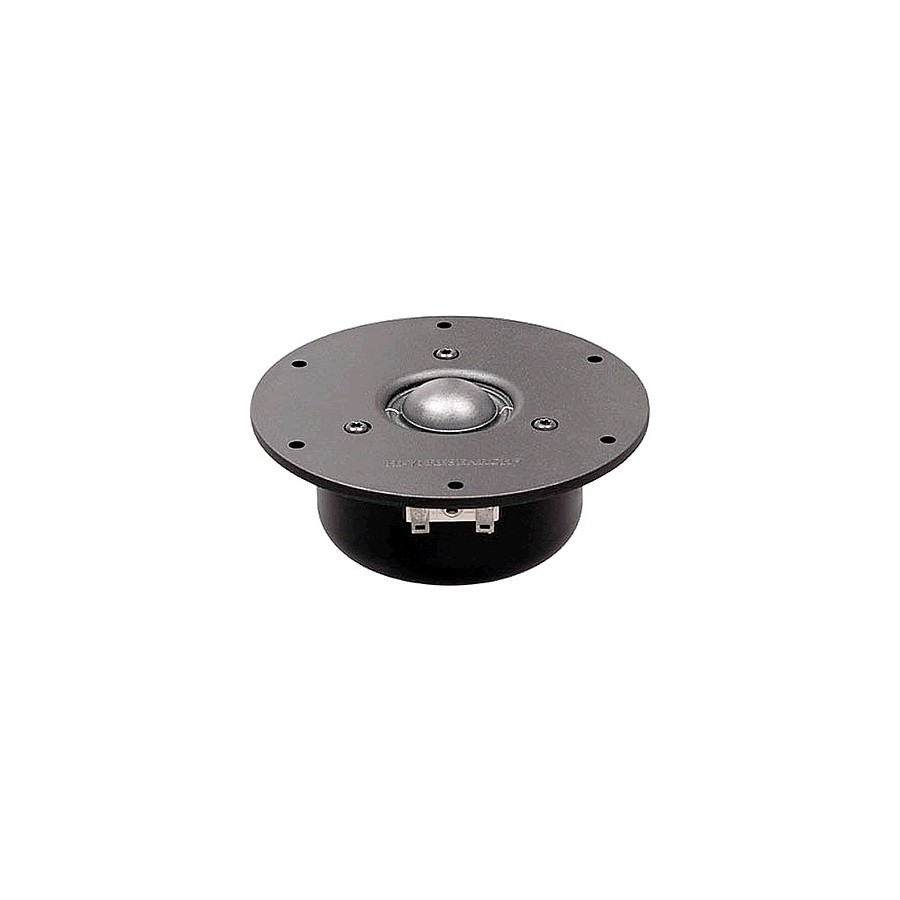

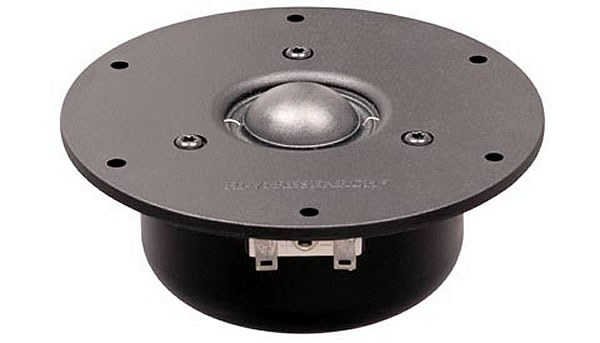

HiVi Q1r Dome Tweeter 28mm
Viewed products
Updated version of the Q1 model of the brand, Q1r further improves the natural reproduction
Dôme in natural fiberscovered with damping material
Voice coil 28mm coiled with copper-plated aluminum wire and cooled with ferrofluidfor better power handling
Fully double ferrite magnetic circuit armored allowing the unit to be used in a Multimedia or Home Theater configuration
Specifications:
- Nominal Impedance: 6Ω
- Resonant Frequency: 1000Hz
- Rated Power:15W
- Sensitivity(2.83v / 1m):89dB
- Resistance DC:/ Strong>5.3Ω
- Diameter Coil: 28mm
- Mounting Type:Aluminum
- Number of Layers:2
- Composition Magnetic Circuit: Double Ferrites
- Magnetic Shielding:/ Strong>Yes
- Recommended Cut-Off Frequency -3dB: 2500Hz
- Weight:0.8Kg

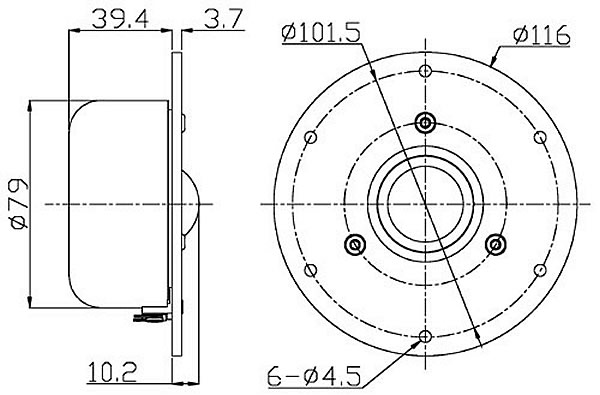

HiVi Q1r:Dimensions

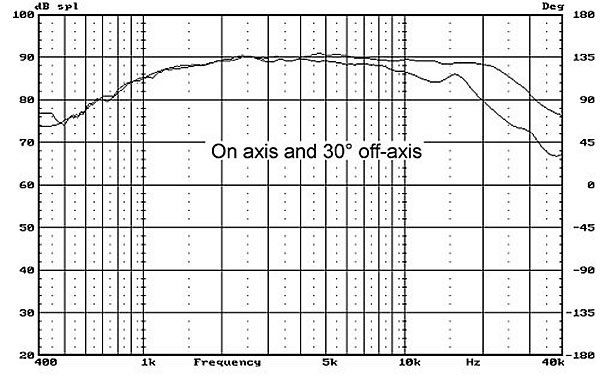

HiVi Q1r:Frequency Response

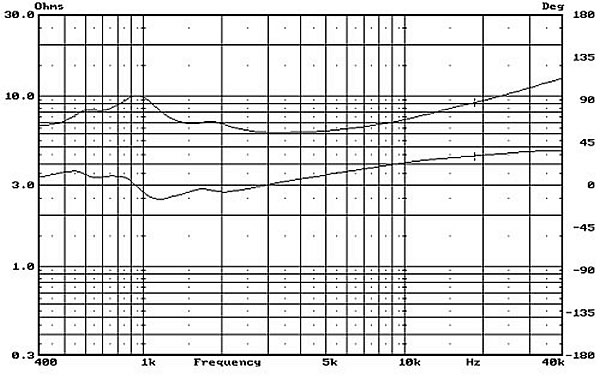

HiVi Q1r:Impedance Curve
