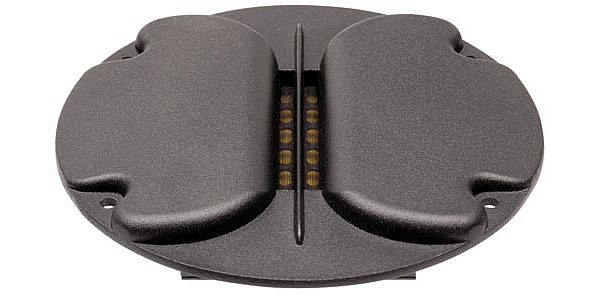

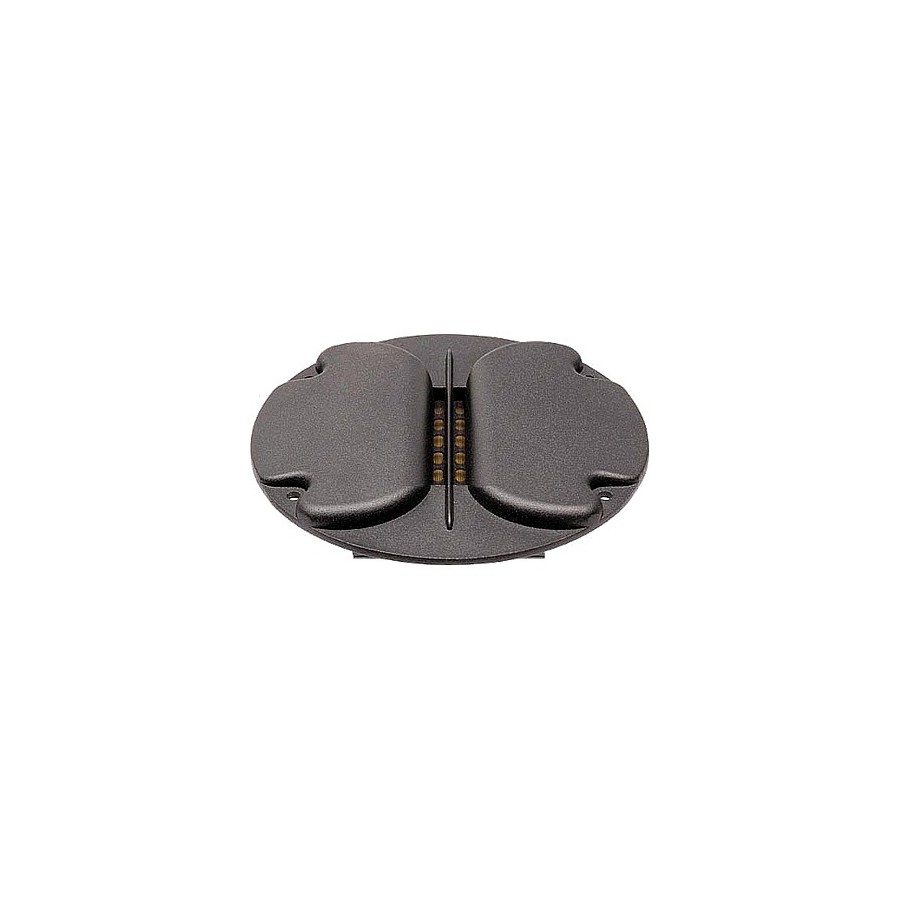

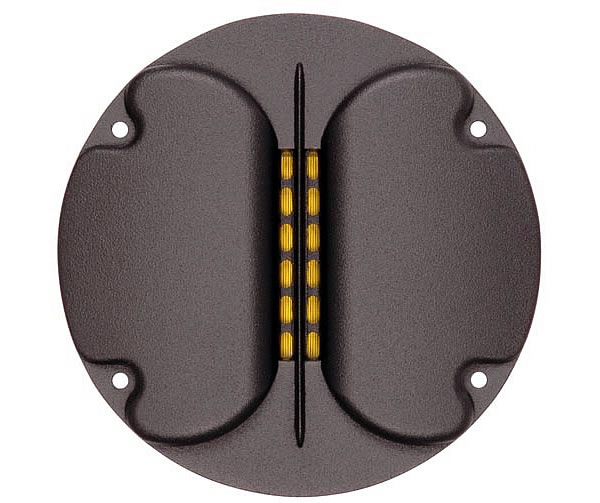

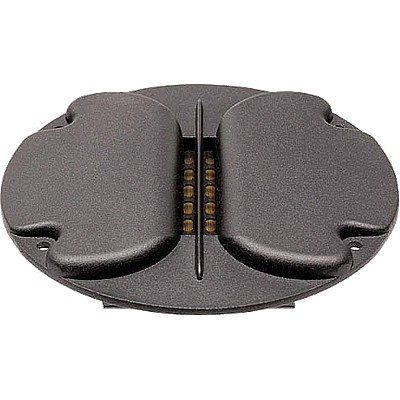

HiVi RT1C-A Speaker Driver Isodynamic Ribbon Tweeter 15W 5 Ohm

Ribbon tweeter capable of working with strong powerson avery wide frequency range .

The vibration element is so lightweight that it is virtually weightless when compared to a traditional dome tweeter.

It is equipped with a aluminum conductive Kapton membranewhich is placed at the center of a magnetic circuit composed of 2 neodymium magnets .

Magnetically shielded , it has a linear phase response that ensures an exact reproduction of the sound image.

Unlike other conventional or electrostatic tweeters, the RT1C and RT2A have a very wide dispersion of sound in the horizontal plane .

At the same time, they have a sound well-controlled in the vertical plane , thereby avoiding floor and ceiling reflections, thus improving the clarity and accuracy of the image.

Although initially designed to be integrated into a 2-way speaker, the RT1C-A can easily fit into a 3-way configuration.

Specifications:

• Nominal Impedance:5Ω
• Rated Power:15W
• Maximum Power Output:25W
• Sensitivity (2.83v / 1m): 94dB
• Recommended Cutoff Frequencies: 4500Hz
• Weight:0.2Kg

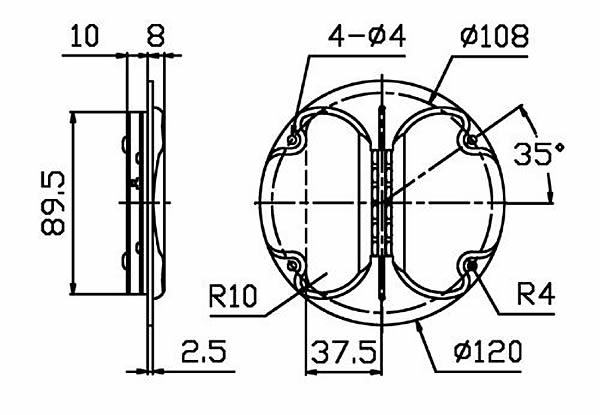

HiVi RT1C-A:Dimensions

HiVi RT1C-A:Frequency Response

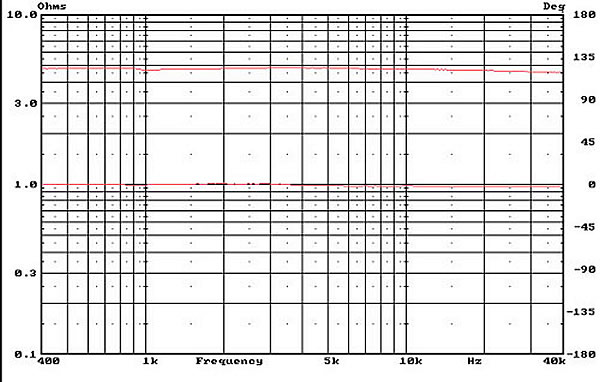

HiVi RT1C-A:Impedance Curve
