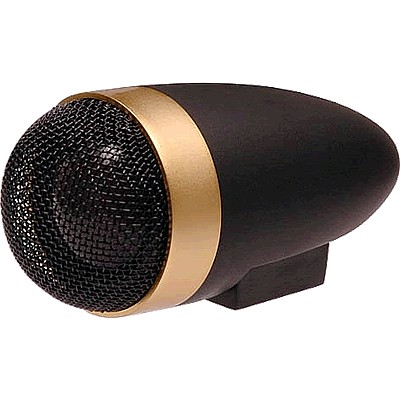

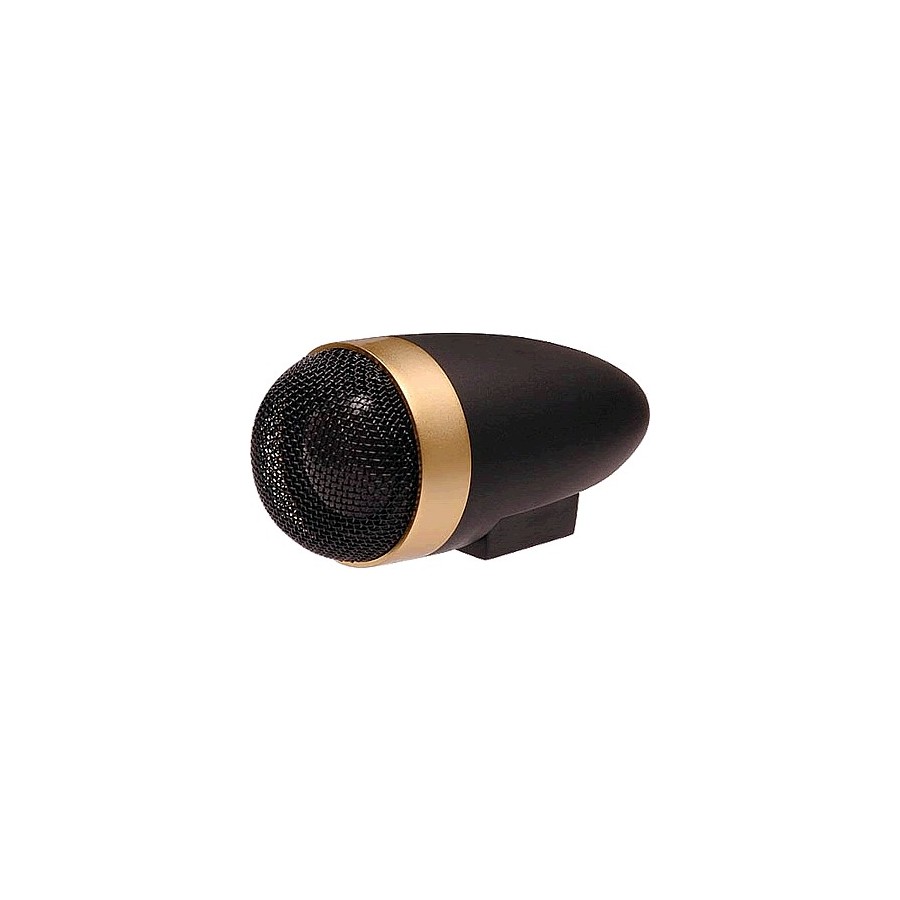

HiVi TN28 Speaker Driver Dome Tweeter High Performance 15W 6 Ohm Ø2.8cm

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 3713
New product

45,00 €tax incl.

37,50 € tax excl.
Including 0,30 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

https://www.audiophonics.fr/images2/Swans_Logo.gif

The TM28 dome tweeter was introduced for the first time through the "DIVA" range of speaker manufacturer Swans.

His numerous qualities won him the prize "Exception Value Award"at the CES in Las Vegas 2000.

Aluminum caseof specially designed shape to limit the effects of diffractions and edges

Moving Coil28mmcooled with ferrofluidfor better power handling

Double magnetneodymium ventilated and fully armored allowing the unit to be used in a Multimedia or Home Theater configuration

Largenon-resonant acoustic chamber rear panel

https://www.audiophonics.fr/images2/3713_SWANS-HIVI-TN28_2.jpghttps://www.audiophonics.fr/images2/3713_SWANS-HIVI-TN28_3.jpg


https://www.audiophonics.fr/images2/3713_SWANS-HIVI-TN28_1.jpg

Specifications:

  • Nominal Impedance: 6Ω
  • Resonant Frequency: 1300Hz
  • Rated Power:15W
  • Sensitivity (2.83v / 1m): 90dB
  • Resistance DC:/ Strong>5.1Ω
  • Diameter Coil: 28mm
  • Mounting Type:Aluminum
  • Number of Layers:2
  • Composition Magnetic Circuit: Magnets Neodyms
  • Magnetic Shielding:/ Strong>Yes
  • Recommended Cut-Off Frequency -3dB: 2000Hz
  • Weight:0.14Kg

https://www.audiophonics.fr/images2/HiVi_Logo.jpg

https://www.audiophonics.fr/images2/3713_SWANS-HIVI-TN28_4.jpg

HiVi TN28:Dimensions

https://www.audiophonics.fr/images2/3713_SWANS-HIVI-TN28_5.jpg

HiVi TN28:Frequency Response

https://www.audiophonics.fr/images2/3713_SWANS-HIVI-TN28_6.jpg

HiVi TN28:Impedance Curve


Data sheet
Speaker Power (W RMS)15.0
Speaker TypeDome tweeter
Impedance (Ω)6
Loudspeaker diameter (mm)28.0
