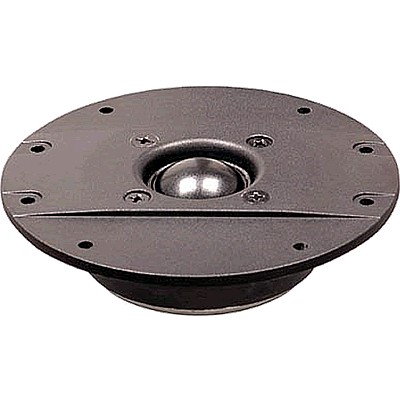

HiVi X1-A Speaker Driver Dome Tweeter 15W 4 Ohm 91dB Ø2.5cm
![[GRADE S] IAN CANADA STATIONPI SMT Raspberry Pi and HAT Boards Adapter Station](https://www.audiophonics.fr/64200-thumb_default/ian-canada-stationpi-smt-raspberry-pi-adapter.jpg)
![[GRADE S] NEOTECH NEI-3004 Symmetrical modulation cable UP-OCC Ø 8.5mm 1m](https://www.audiophonics.fr/65235-thumb_default/neotech-nei-3004-symmetrical-modulation-cable-up-occ-o-85mm.jpg)
![[GRADE A] LUDIC KRATOS Filtered Power Distributor 8 Filter Outlets Schuko Black](https://www.audiophonics.fr/65221-thumb_default/ludic-kratos-8-filtrer.jpg)
![[GRADE B] Crimping Pliers 0.25-35mm² with 8 Bits and Storage Bag](https://www.audiophonics.fr/65204-thumb_default/crimping-pliers-025-35mm-with-8-bits-and-storage-bag.jpg)
![[GRADE A] SHANLING Protective Cover Leatherette for Shanling H2 Marron](https://www.audiophonics.fr/65199-thumb_default/shanling-protective-cover-leatherette-for-shanling-h2-brown.jpg)
![[GRADE B] TOPPING DX9 DAC AK4499EQ Headphone Amplifier NFCA Bluetooth 5.1 AptX LDAC 32bit 768kHz DSD512 Black](https://www.audiophonics.fr/65179-thumb_default/topping-dx9-dac-ak4499eq-headphone-amplifier-nfca-bluetooth-51-aptx-ldac-32bit-768khz-dsd512-black.jpg)
Dôme in natural fiberscovered with damping material.
Moving coil of25mm diameter cooled with ferrofluid
Double magnetic circuit mounted symmetrically
Aluminum front
Specifications:
- Nominal Impedance:4Ω
- Resonant Frequency: 1600Hz
- Rated Power:15W
- Sensitivity (2.83v / 1m): 91dB
- Resistance DC:/ B>3.5Ω
- Diameter Coil: 25mm
- Mounting Type:Aluminum
- Number of Layers:2
- Composition Magnetic Circuit: Ferrite
- Recommended Cut-Off Frequency -3dB: 2000Hz
- Weight:0.6kg

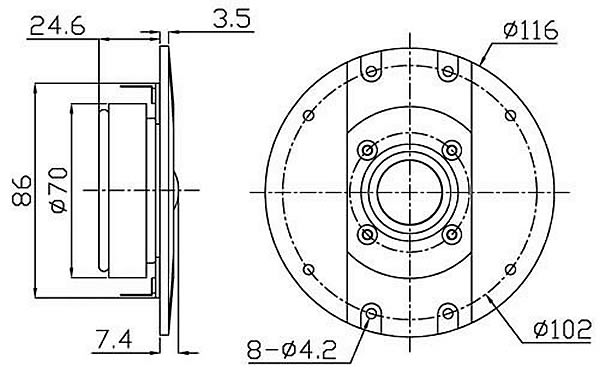

HiVi X1-A:Dimensions

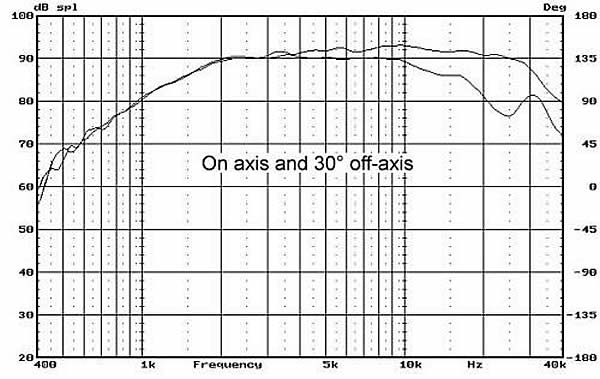

HiVi X1-AT :Frequency Response

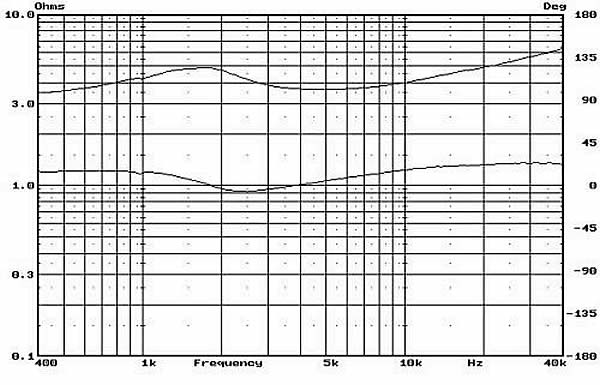

HiVi X1-A:Impedance Curve
| Speaker Power (W RMS) | 15.0 |
| Speaker Type | Dome tweeter |
| Impedance (Ω) | 4 |
| Loudspeaker diameter (mm) | 25.0 |
| Efficiency / Sensitivity (dB) | 91.0 |
