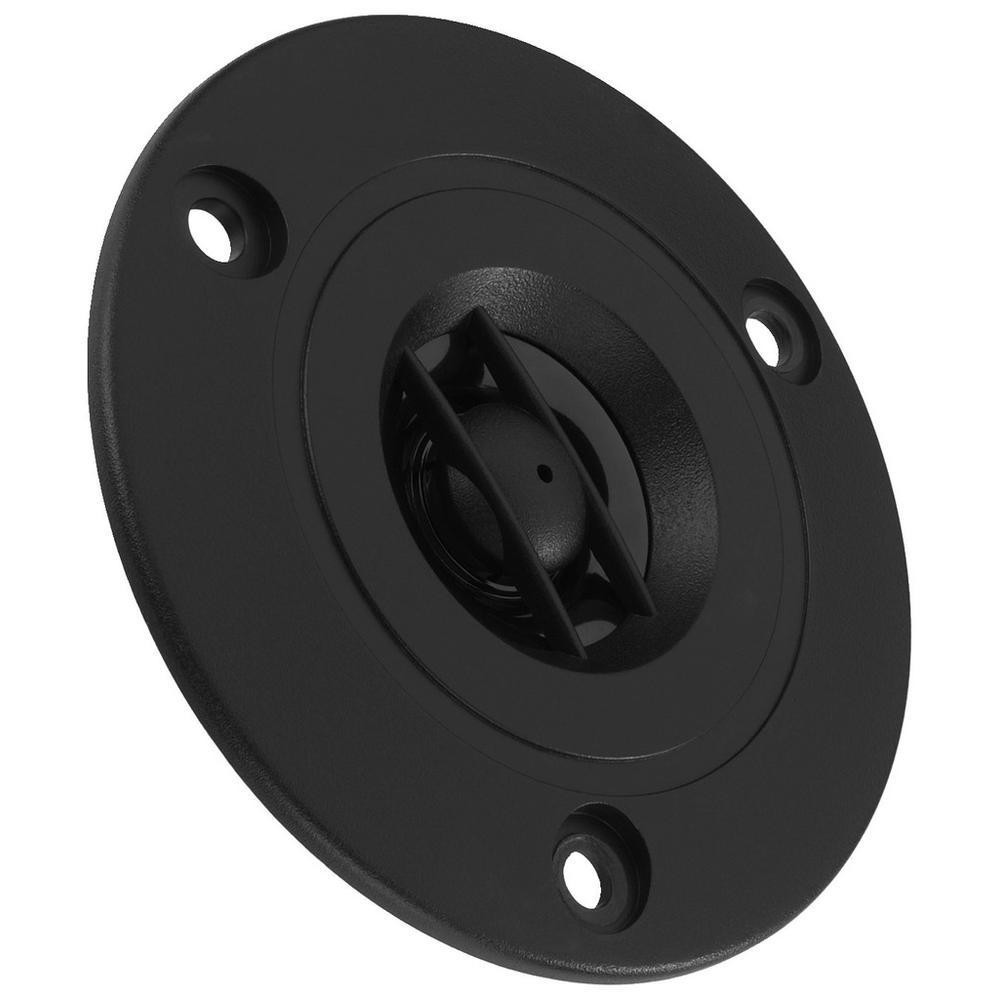

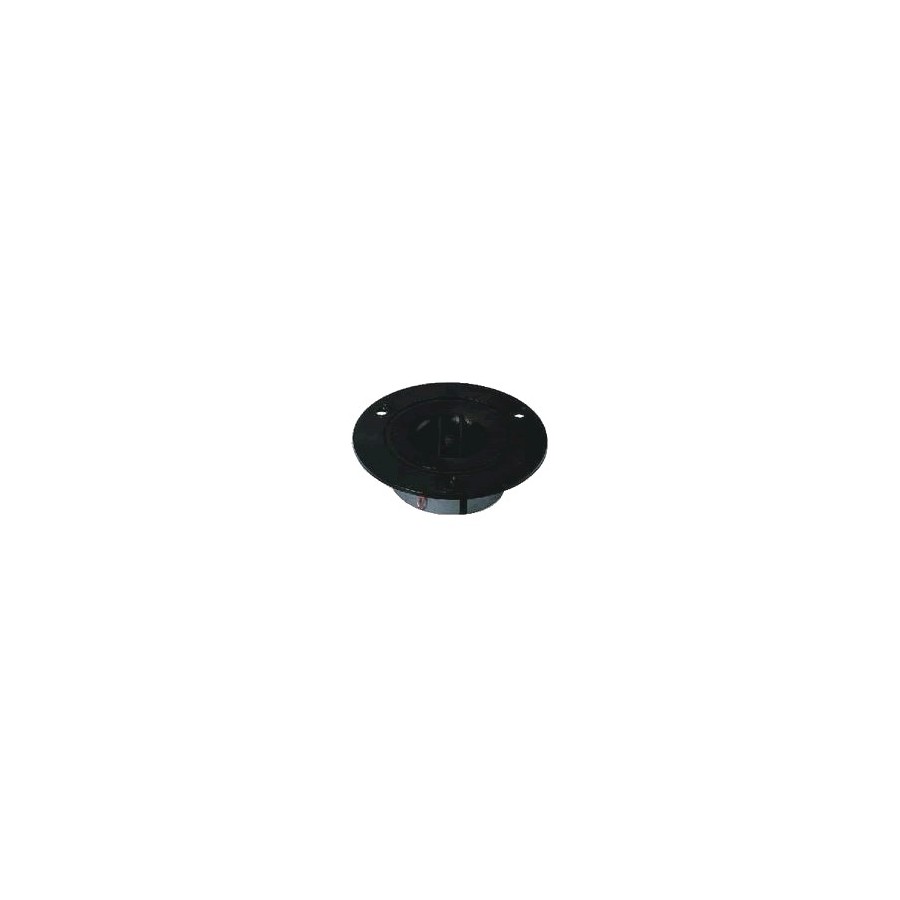

MONACOR DT-74/8 Driver Speaker Dome Tweeter 15W 8 Ohm 98dB Ø11mm
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
30 W MAX , 8 Ω (/ 8) and 4 Ω (/ 4) Dome Acoustic Speakers
Dome 11 mm, with high-frequency diffuser, high efficiency, high-gloss image. For Hi-Fi and Public Address.
| Speakers Speakers | |||
 | | ||
| | | ||
| | Impedance (Z) | 8 Ω | |
| | | ||
| | Resonance frequency (fs) | | 2 kHz |
| | | ||
| | Maximum bandwidth | | fx-18 kHz |
| | | ||
| | Cut-off frequency (12 dB) | | 5 kHz |
| | </ Span> | ||
| | Maximum power | | 30 W MAX |
| | | ||
| | Nominal power | | 15 W RMS |
| | | ||
| | Average sound pressure (1 W / 1 m) | | 98 dB |
| | | ||
| | Coil diameter | | 11 mm |
| | | ||
| | Magnet diameter | | 45.5 mm |
| | | ||
| | cutting | <img src = "http://www.monacor.de/global_img/blank.gif" alt = "" width = "10" height = "1" /> | Ø 50 mm |
| | | ||
| | Mounting depth | | 24 mm |
| | | ||
| </ Span> | Dimensions | | Ø 74 mm |
| | | ||
| | Weight | | |
[Img-20530-left-thickbox_default]
| Speaker Power (W RMS) | 15.0 |
| Speaker Type | Dome tweeter |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 11.0 |
| Diaphragm type | Composite alloy |
| Efficiency / Sensitivity (dB) | 98.0 |
| Max Linear Excursion (Xmax) (mm) | N/A |
| Lowest frequency (Hz) | N/A |
| Highest frequency (Hz) | 18000 |
