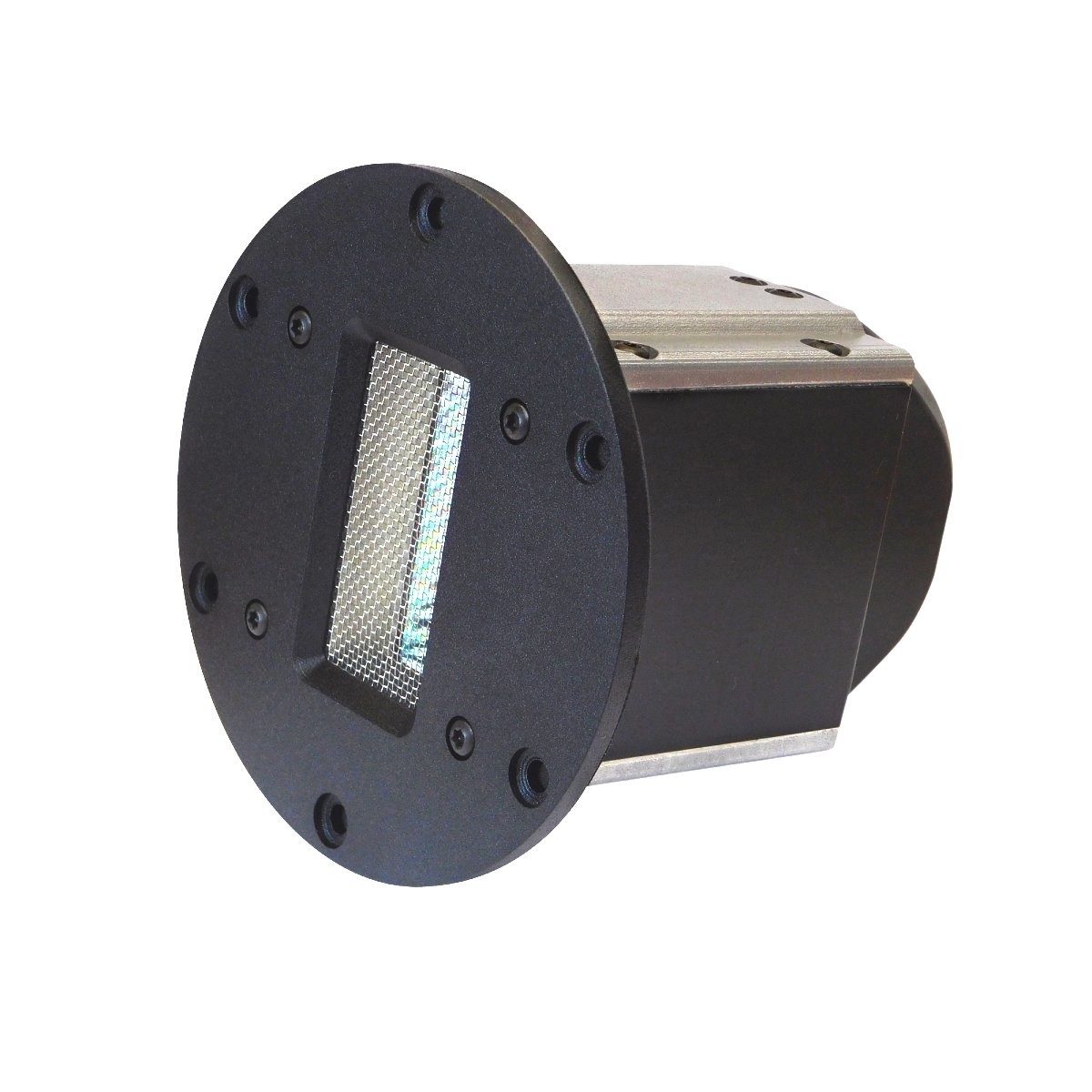

VIAWAVE GRT-145 Speaker Driver Ribbon Tweeter 17W 4 Ohm 98dB (The pair)

A pair of ribbon tweeters with excellent frequency response and very good sensitivity while maintaining the distortion under a very low threshold. These parts are designed and hand-assembled with great attention to detail.

Sold by pair

No customer reviews yet, login to write a review.

By buying this product you get 51 loyalty points


Reference : 12835
New product

519,00 €tax incl.

432,50 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

This product has been replaced by the Waveguide version: VIAWAVE GRT-145W-4 Speaker Driver Ribbon Tweeter.

Viawave Audio GRT-145-4

Sealed ribbon tweeter 4 ohm

Tweeter ribbon GRT145-4 Viawave
A pair of ribbon tweeters with excellent frequency response and very good sensitivity while maintaining the distortion under a very low threshold. These parts are designed and hand-assembled with great attention to detail.

SRT

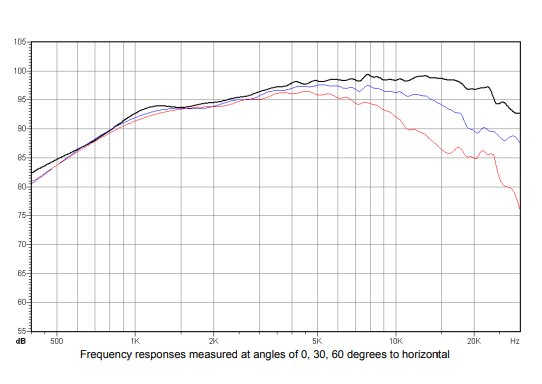

Tweeter Frequency Response GRT-145-4

Senior GRT-145-4 speakers exploit the SRT technology (sealed ribbon tweeter). This technology developed by Audio Viawave consists of placing a polymer film between the tape and the poles of the magnet. This type of construction greatly limits the harmonic distortion, especially in the lower frequencies that cover this type of tweeter.

One feature that refines the sound precision while specifying sensitivity. Indeed, it is considered that the SRT technology increases the final sensitivity of 2 to 3dB.

Excellent management magnetic stresses

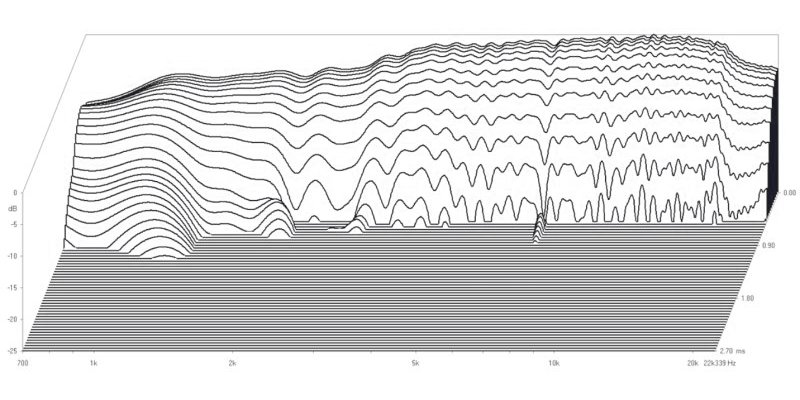

Cumulative spectral period of tweeter speakers

With a magnetic system built with precision, the speakers feature tweeters TSO 145-4 remarkable sensitivity to this class of equipment. On a range of 4 to 18 kHz, it manages to achieve a sensitivity of 95dB / m @ 2.83V, a tour de force for a ribbon tweeter 7cm². It may therefore put some its great sound precision midrange service to enjoy a brilliant and clear.

Similarly, its top desgin allows it to provide a clean, clear sound over the entire response range. These speakers show indeed a cumulative spectral period such as can be found in the professional equipment.

Type of mounting

The tweeter format allows him to enjoy all the depth of a speaker enclosure to avoid sacrificing floor space while providing an aesthetically uniform result - even with massive loudspeakers serious.

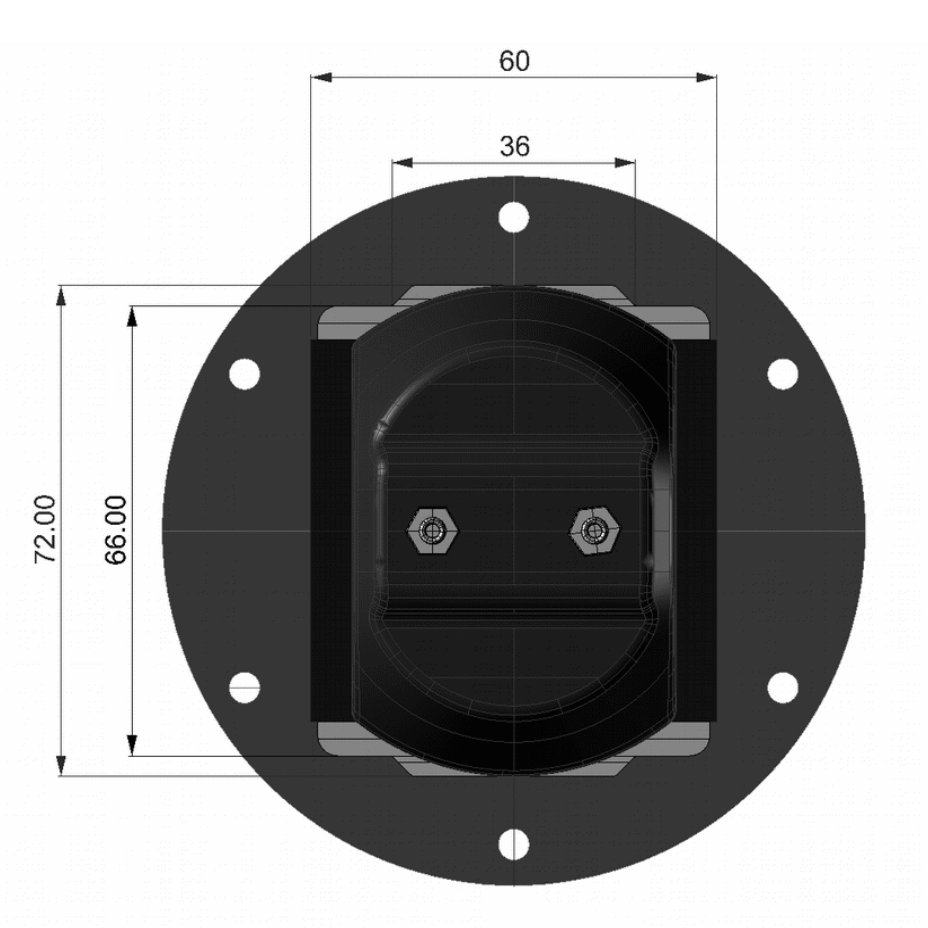

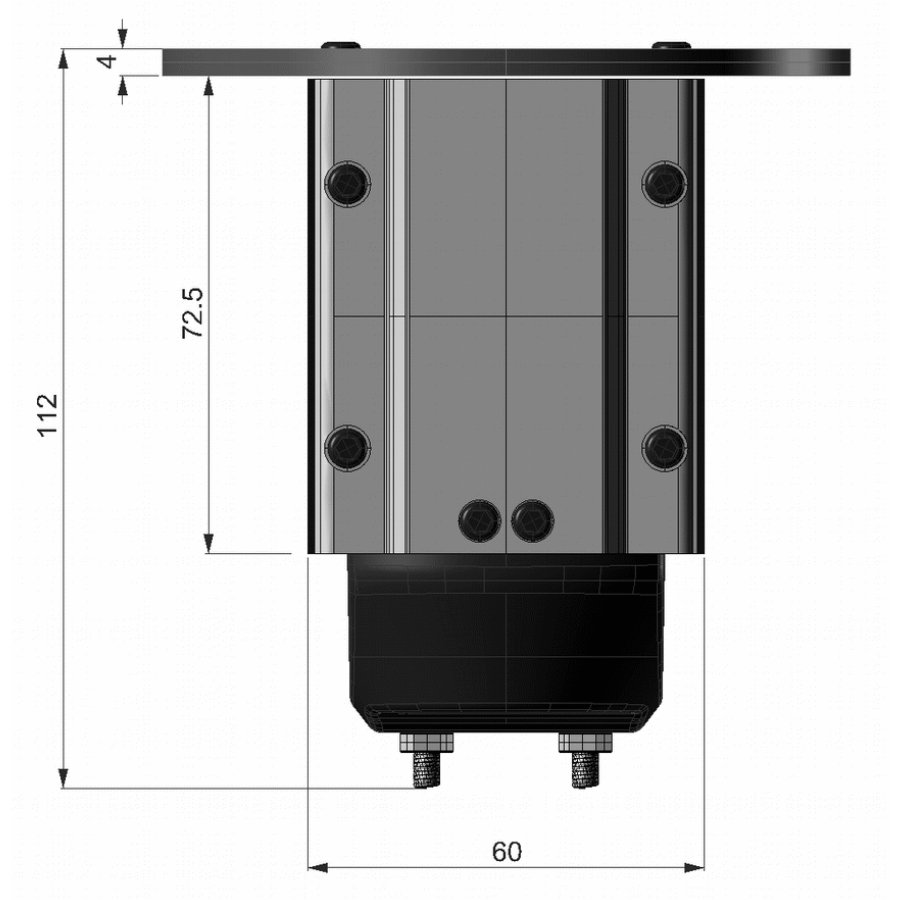

rear dimensions and connectors 145 GRT

The rear connections are thought to increase the mechanical stability while remaining easy to install and connect to other elements. In addition, this construction allows to easily configure filters and crossover essential to make the most of this tweeter.

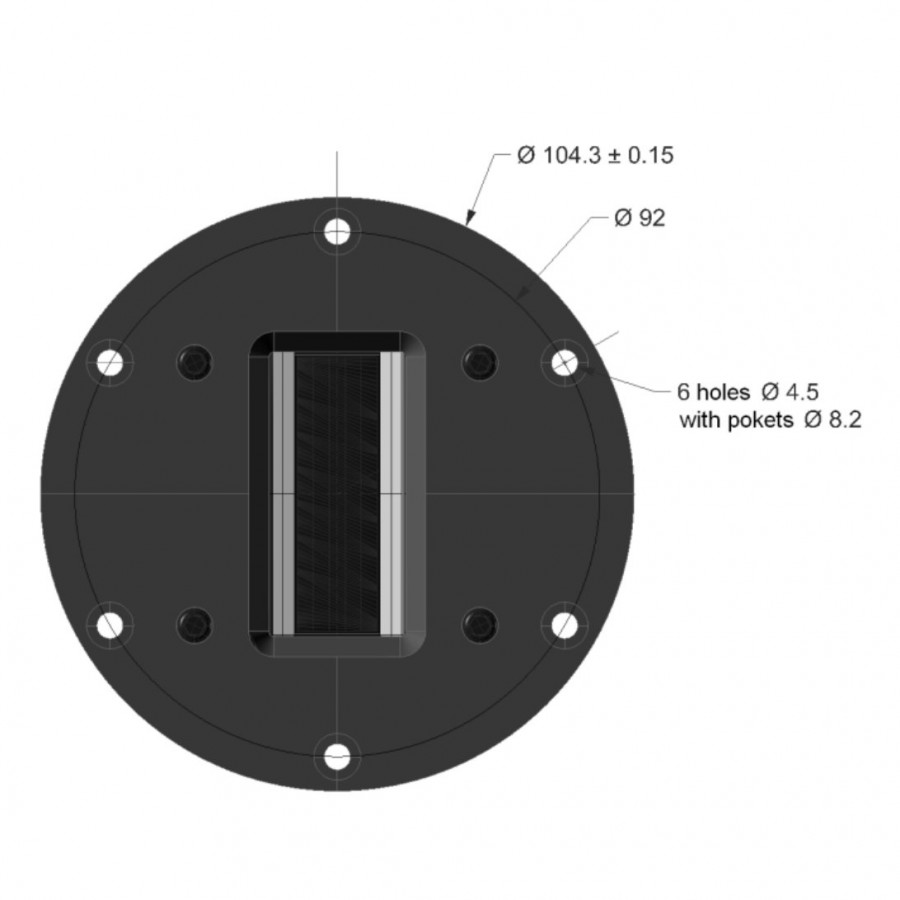

Many fasteners and easy installation

The front has multiple bindings that will facilitate the integration of complex speaker systems, leaving no room for error.


Specifications
Impedance4 ohms
PowerRMS: 17W
Peak: 40W
Power via HF 3000 Hz filter 12dB / oct (IEC268-5)150W
Sensitivity @ 2.83V, 1m, 4-18 kHz98dB
Rear chamber resonance900 Hz
Tape dimensions14 x 50 x 0.009 mm
Tape surface7 cm²
Ribbon mass0.018 g
Input inductance (high frequency)0.017 mH
DC resistance input0.06 Ohms
Input inductance (low frequency)3.5 mH
Magnetic gap flux density0.65 T
Net weight2.83 kg (/pair)
Ribbon materialAluminum
Front plateAluminum
MagnetsNdFeB
magnetic circuitLow Carbon Steel
rear chambernatural wool

Data sheet
Speaker Power (W RMS)17.0
Speaker TypeRibbon tweeter
Impedance (Ω)4
Loudspeaker diameter (mm)100.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)98.0
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A
