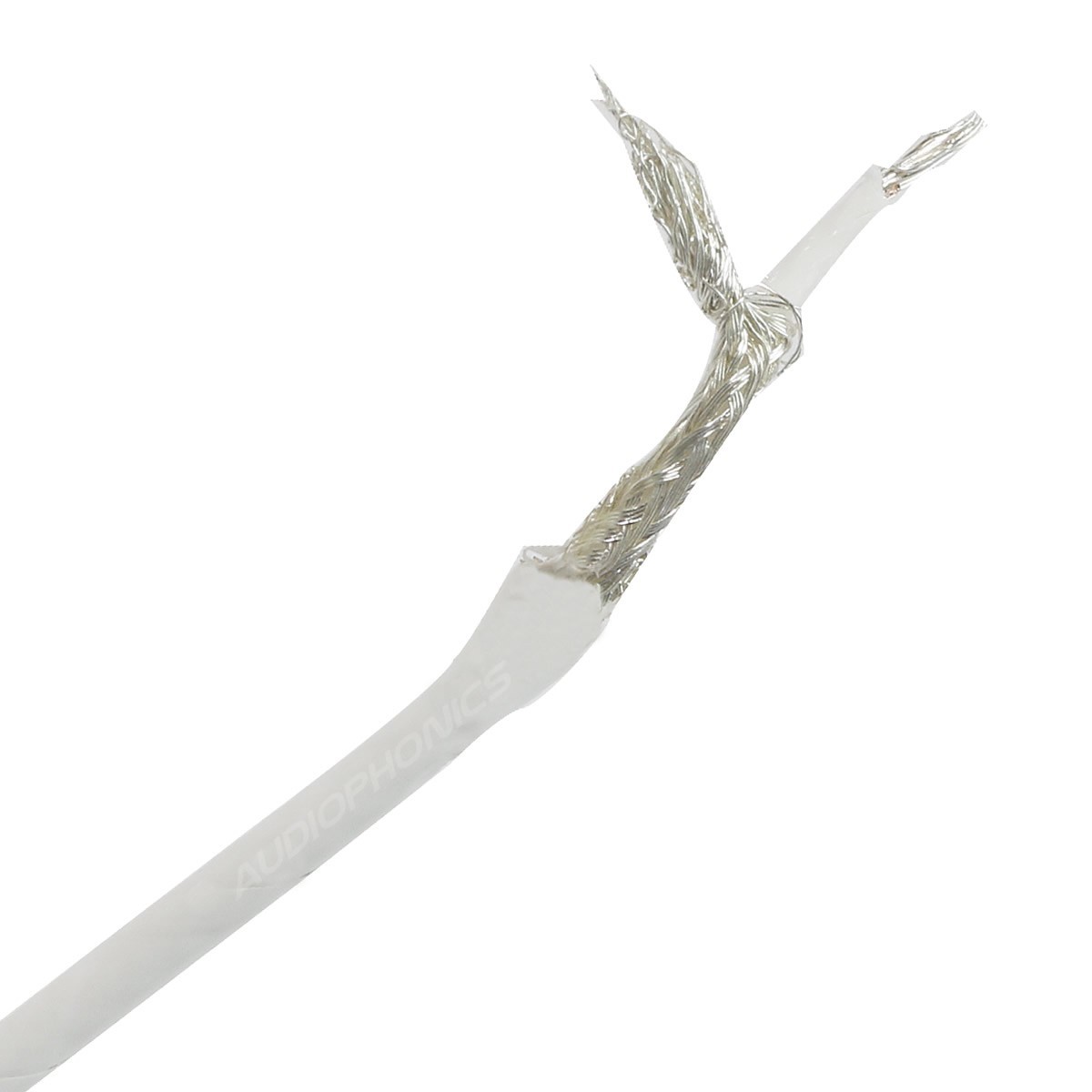

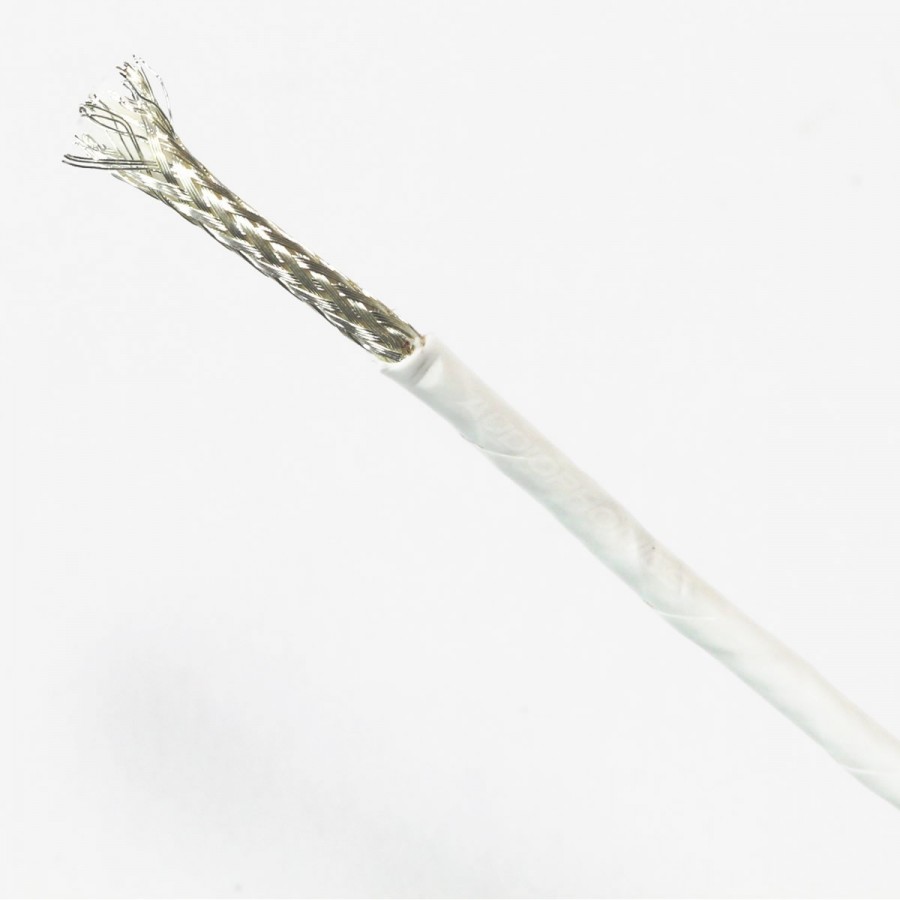

Pure Silver shielded Coaxial Cable High Purity White PTFE Ø 2.0mm

This shielded twisted coaxial multi-strand modulation cable Pure Silverhigh quality assembly is perfectly suitable for all DIY mounting. Entirely in PTFE insulation, conductors and outer sheath it will be perfect for the confession of high-end coaxial modulation cable.

Due to its noble materials, it will retain good electromechanical characteristics over time. It is ideal for the production of SPDIF or video coaxial digital audio cable.

Suggested RCA connectors:

• Hicon CM06RED
• Hicon CM06-NTL
• Amphenol ACPRD-RED
• Amphenol ACPRD-WHITE

Specifications:

• A multi-strand silver conductor
• Shield screen with silver braid
• PTFE insulation on all conductors and outer sheath
• PTFE resistance: -65 ° C to 200 ° C
• Internal section Conductor: 0.28mm²
• 19 strands on the main conductor
• Diameter of each brown: 0.03 mm
• Diameter on conductor PTFE insulation 1.25mm
• External diameter on shielding braid 1.55mm
• External Length / Height: 2.0mm
