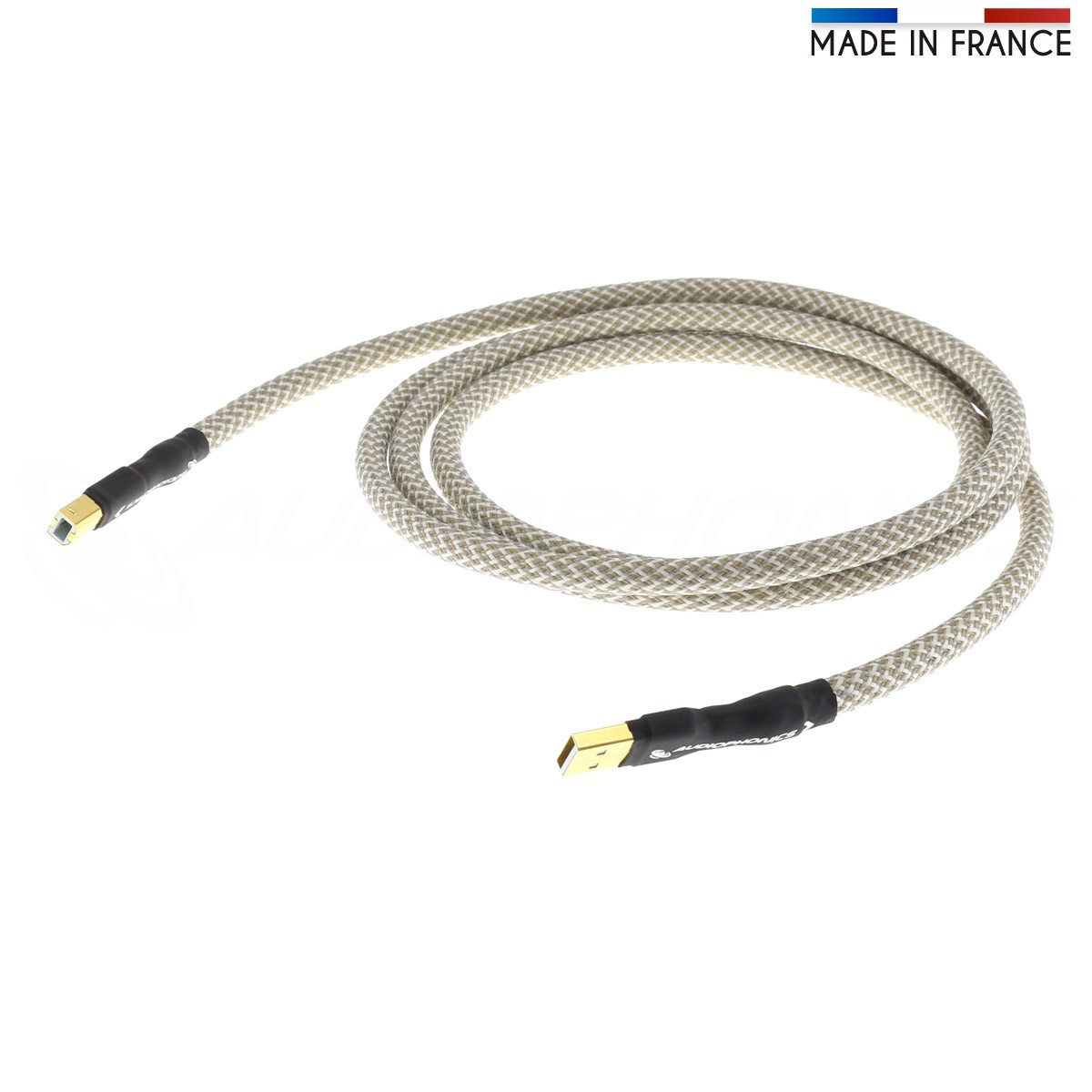

Male USB-A to Male USB-B Cable 4N OFC Copper PTFE 3m
The Audiophonics Digital Audio USB cable is a digital cable developed by the Audiophonics team and assembled in our workshops. The objective is to obtain a high level USB cable, without the usual defects of current productions in this price range.
This cable is the combination of USB connectors with gold plated contacts, an OFC Copper cable of 4N (99.99%) purity with PTFE insulation. This cable is completely assembled in our workshops with a Silver / Sn95 Mundorf M-Solder soldering on a constant temperature soldering iron.
This cable has a separate shield, isolating the data transmission from the 5V electrical voltage part. A second shielding covers the whole system to guarantee 100% protection against parasites.
Unlike a conventional USB cable with only an external shield, vil is an elegant and logical solution, reducing unwanted noise between digital data transmission and 5V voltage.
This cable is not suitable for acquisition applications (microphone, ADC, etc.).
| Specifications | |
|---|---|
| Product type | USB Cable |
| Length | 3m |
| Connectors | 1x Male USB-A 1x Male USB-B |
| Connectors plating | Gold |
| Connectors isolant material | PVC |
| Cable isolant material | PTFE |
| DATA / 5V Voltage separation | |
| Shielding | Aluminium foil 100% |
| Conductors material | 4N OFC Copper |
| Conductors number | 4 |
| External sheath material | PVC |
| Covering sheath material | Nylon |
| Cable color | White and gray |
| Cable diameter | Ø9mm |
| Length (m) | 3.0 |
| Shielding | Yes |
| Section (mm²) | N/A |
| Connector | USB-B |
| Connector | USB-A |
| Conductors material (Cable) | Copper |
