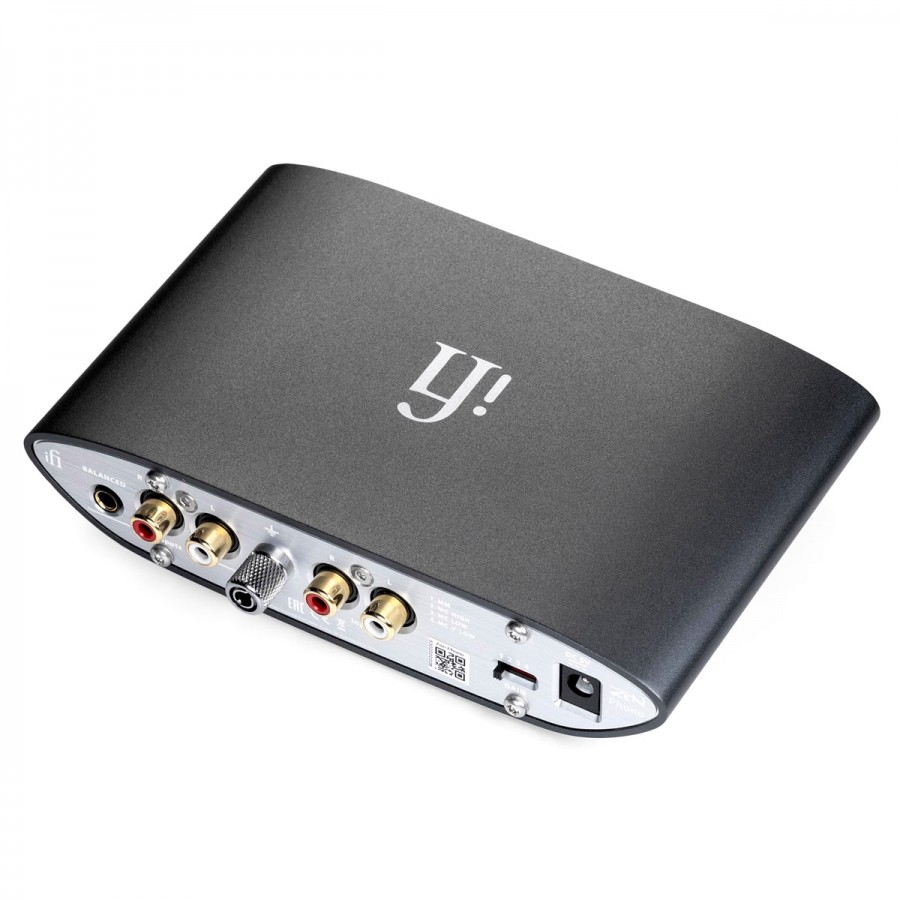

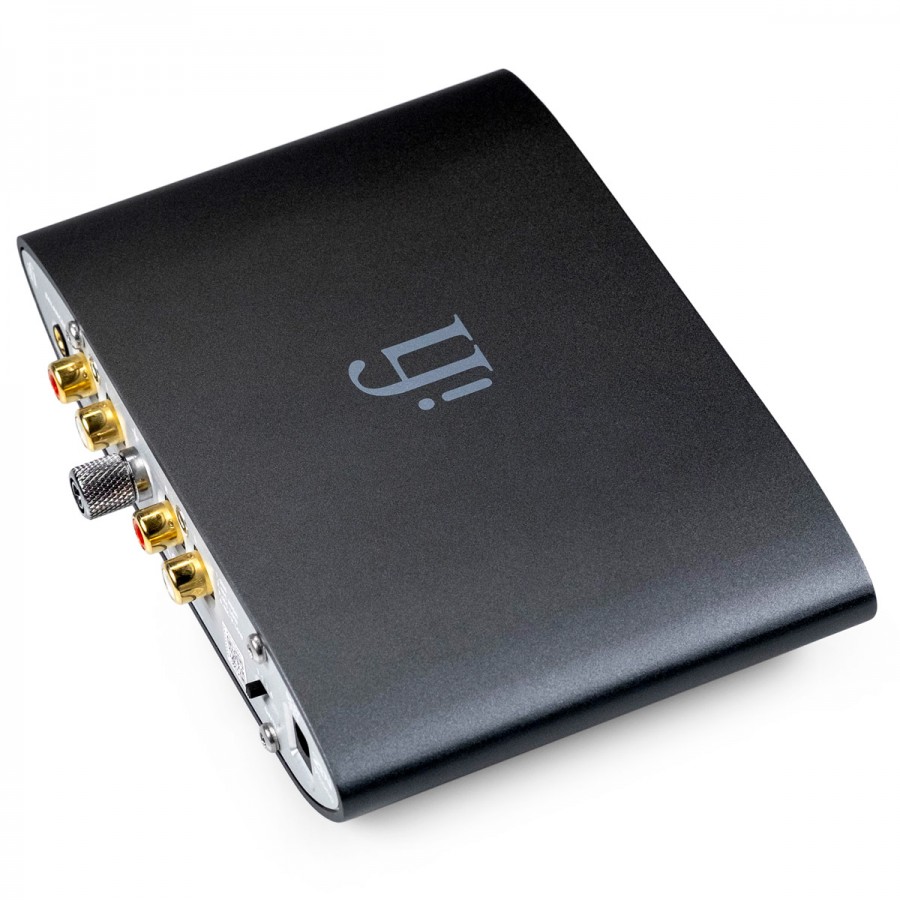

IFI AUDIO ZEN PHONO Phono Preamplifier MM/MC

The iFi Audio Zen Phono is a small, powerful and affordable desktop phono preamplifier. The brand has particularly worked on noise reduction on this device which displays a background noise measured at 90/96dB (MM/MC).

Average votes for this product
5.0 / 5

By buying this product you get 19 loyalty points


Reference : 14764
New product

199,00 €tax incl.

165,83 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

iFi Audio Zen Phono

Phono Preamplifier MM/MC

iFi Audio Zen Phono Préamplificateur Phono MM/MC

The iFi Audio Zen Phono is a small, powerful and affordable desktop phono preamplifier. The brand has particularly worked on noise reduction on this device which displays a background noise measured at 90/96dB (MM/MC).

It is also versatile since it is compatible with both MM (Moving Magnet) and MC (Moving Coil) cell boards from < 0.25mV to > 2mW. The Zen Phono also includes a balanced circuit and connectors, a gain control, or a sub-sonic filter.

Connectivity

The iFi Audio phono preamplifier offers a simple but effective connection. The device offers stereo RCA in and balanced 4.4mm jack and RCA out. A grounding terminal block is also present.

iFi Audio Zen Phono Préamplificateur Phono MM/MC
iFi Audio Zen Phono Préamplificateur Phono MM/MC

Regenerative power supply

High-end phono preamplifiers create their own power supply off the mains, like a main regenerator. This is the starting point for any good phono stage, since without it it would be difficult to amplify the signal and not add noise.

The Zen Phono uses this regenerative power supply concept to provide excellent audio performance. It creates a 1.2MHz power supply, i.e. 20,000 times the frequency delivered by your home electrical network. Thus, a 10µF filtering capacitor is equivalent to 200000µF at a lower frequency. The result: a large filtering capacity comparable to the LC filtering of tube amplifiers. The power supply is insulated against interference and outputs an extremely clean +/-12V DC signal.

iFi Audio Zen Phono Préamplificateur Phono MM/MC

RIAA EQ

The Zen Phono integrates a particularly efficient RIAA equalization circuit, using latest generation AOPs and TDK C0G capacitors in parallel. This design exponentially increases the tolerance of the RIAA equalizer to ±0.15dB.

iFi Audio Zen Phono Préamplificateur Phono MM/MC

AI Subsonic Filter

Classical sub-sonic filters suppress "buzzing" but also alter the reproduction of low frequencies. iFi Audio's AI Subsonic Filter, used since 2012 and therefore totally proven, only cancels this humming effect, without impacting the bass.

High quality components

To achieve such performances, iFi Audio integrates high-end components, specially selected and embedded in a smart and careful design. These include a low-distortion (0.00001%) OVA2637 AOP for a pure and rich reproduction, Panasonic ECPU capacitors, Texas Instruments low noise printed circuit boards, high stability C0G TDK ceramic capacitors or muRata low ESR multilayer capacitors.

iFi Audio Zen Phono Préamplificateur Phono MM/MC

Technical characteristics

Specifications
Product typePhono preamplifier
Input1x Stereo RCA
Outputs1x Balanced Jack 4.4mm
1x Stereo RCA
Frequency responseBalanced : 20Hz - 20kHz (±0.15dB)
Single-ended: 10Hz - 100kHz (±0.4dB)
Channel separation> 75dB (1kHz, all modes)
Max. output RMS voltageBalanced : 13.5V RMS @ 600R (< 1% THD+N)
Single-ended : 6.5V RMS @ 600R (< 1% THD+N)
Output impedanceBalanced : 200 Ω
Single-ended : 100Ω
SNRMM (36dB ±1dB) : 96dB (A-Weighted) re 2V Balanced/1V Single-ended
MC High (48dB ±1dB) : 84dB (A-Weighted) re 2V Balanced/1V Single-ended
MC Low (60dB ±1dB) : 90dB (A-Weighted) re 2V Balanced/1V Single-ended
MC V-Low (72dB ±1dB) : 79dB (A-Weighted) re 2V Balanced/1V Single-ended
Equivalent input nois (EIN)0.6nV|/Hz (Unweighted), MC Low/V-Low, -151dBV (A-Weighted)
6.5nV|/Hz (Unweighted), MM/MC High, -130dBV (A-Weighted)
THDMM : < -110dB / 0.0003% re 2V Balanced/1V Single-ended
MC Low : < -80dB / 0.01% re 2V Balanced/1V Singled-ended
MC V-Low : < -86dB / 0.0005% re 2V Balanced/1V Single-ended
General
Power supply5VDC 0.5A (included)
Dimensions158 x 117 x 35mm
Weight500g
Package1x iFi Audio Zen Phono
1x Power supply
2x RCA Cables

Data sheet
InputRCA
OutputRCA
OutputJack 4.4mm
ColorSilver
ColorBlack
ClassN/A
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Works Well, Arrived Quickly and in Good Condition
This was the first item I ordered from Audiophonics. As a result of their excellent service I have ordered other equipment and expect to order more in the future. This phone amp is visually cute with good features, and works as expected. It really is easy to use and set up and so far has worked without any problems whatsoever. I only wish it had an output with which I could directly connect it to my AUDIOPHONICS DAW-S250NC Amplificateur Intégré. But it does its job, does it well, and connects to my Topping electrostatic headphone amp (also purchased from Audiophonics) without any problem.
 (0)
 (0)
This review has been posted for IFI AUDIO ZEN PHONO Phono Preamplifier MM/MC
Note :
 5/5
Date :
Préamplificateur Phono MM/MC
Possédant un modèle de début de gamme de la marque Project, passé sur ce modèle Phono MM/MC c'est le jour et la nuit. Bon rapport qualité/prix.
 (0)
 (0)
This review has been posted for IFI AUDIO ZEN PHONO Phono Preamplifier MM/MC
Note :
 5/5
Date :
À peine croyable
J’ai reçu et installé ce préamplificateur aujourd’hui, branché sur un platine technics sl1400 et une cellule Shure V15 type 3 et à la place d’un pré REGA d’entrée de gamme mais très dynamique. Premier disque, puis deuxième....La CLAQUE! Un son d’une grande douceur mais très précis, tous les registre sont bien présents et une spatialisation impressionnante avec un relief de fou. J’ai l’impression que les musiciens sont sortis des enceintes et sont à leur place dans la pièce. J’hésitais pour acheter un Lehman black cube mais alors là je n’ai aucun regret, j’attend avec impatience les prochaines écoutes et les essais avec mes autres cellules.
 (2)
 (0)
This review has been posted for IFI AUDIO ZEN PHONO Phono Preamplifier MM/MC
