Vinyl Turntable 33 / 45 / 78 RPM Ortofon OM-10E Black

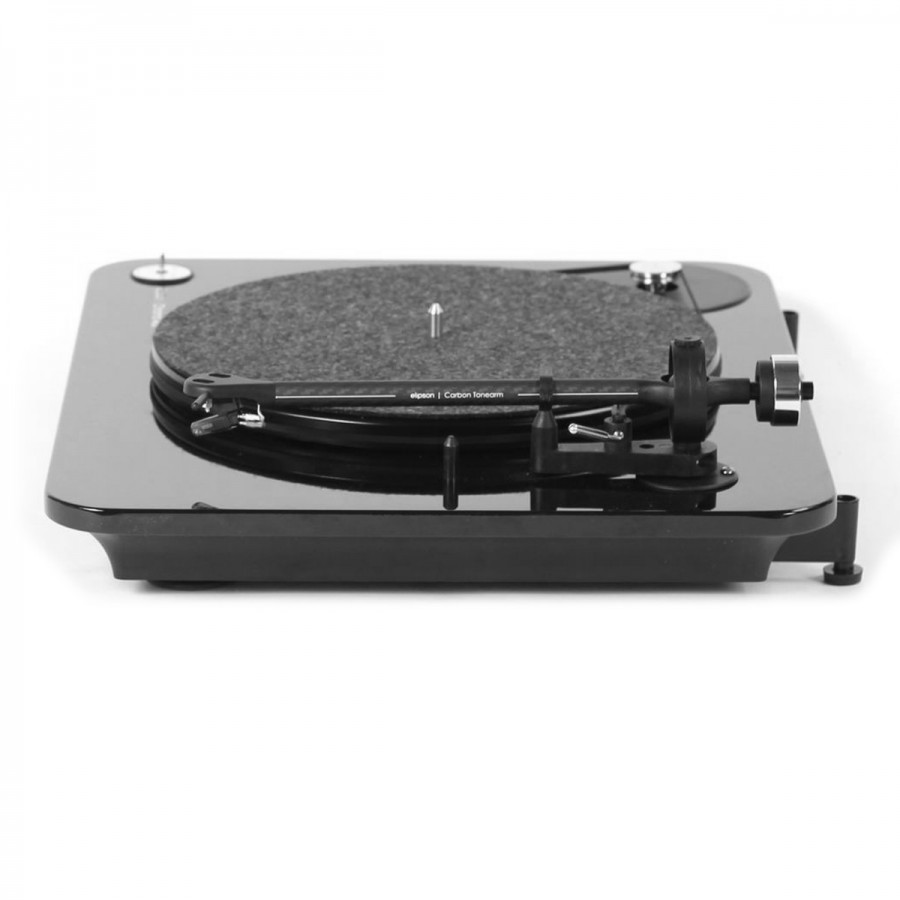

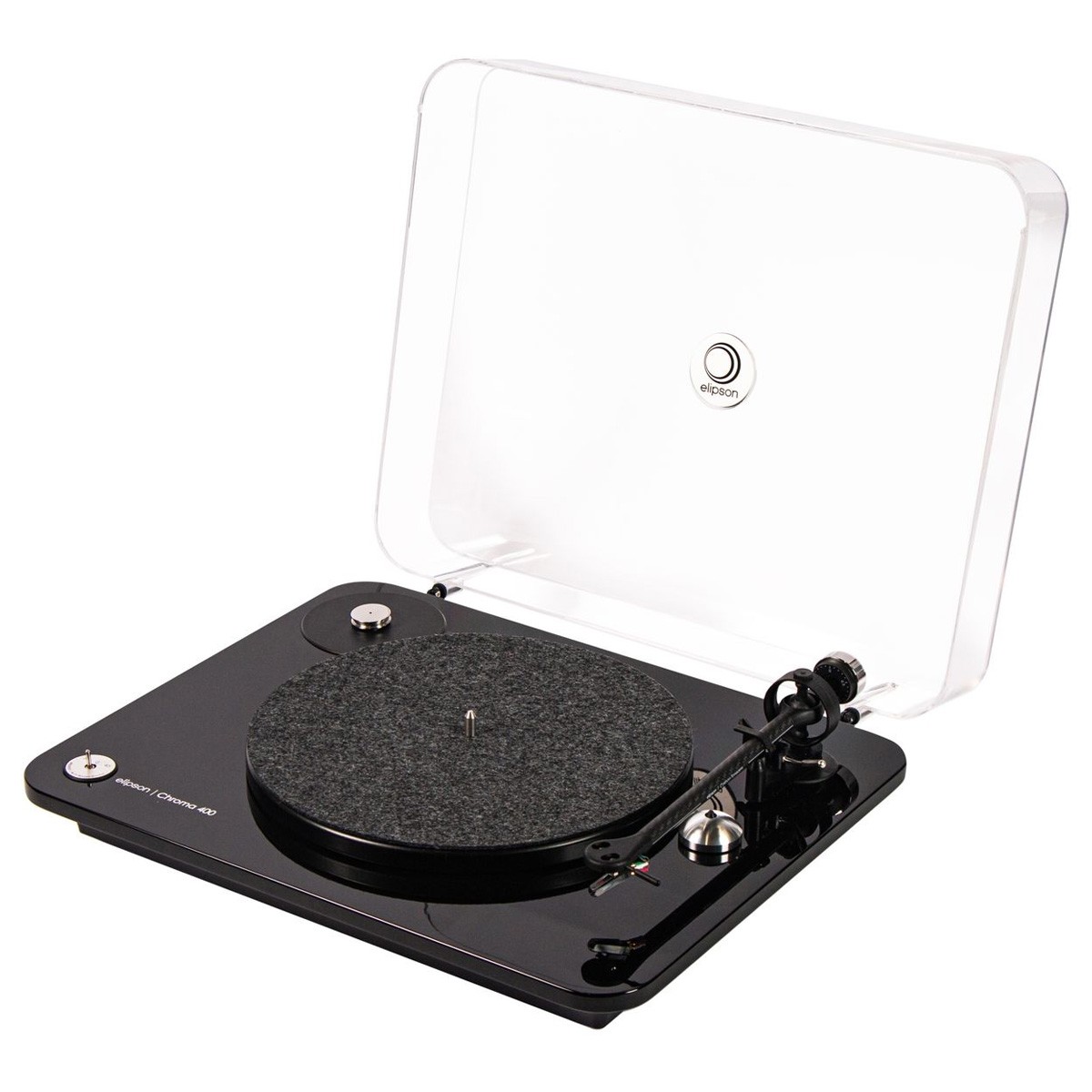

The Chroma 400 turntable proposed by Elipson is a manual model with a belt drive. It is pre-equipped with an Ortofon OM-10E moving magnet cartridge and benefits from a brand new steel platter, a graduated counterweight, a carbon tonearm associated with its arm lift, but also a new platter axis system, an optimized motor and surround assembly and an improved electronic board.
Elipson is a French company, founded in 1938, designing and producing in France the Alpha, Omega and Chroma vinyl turntables. Thus, the design and the assembly of these products is carried out in Saint Fargeau in Yonne (Burgundy). In total, no less than 70% of the components of these models are manufactured in France (electronics, molded plastic, etc.). In addition, the turntables are entirely assembled by hand and each one is individually tested to guarantee optimal performance.
With the Chroma 400, Elipson offers an elegant turntable, simple to use and offering above all a beautiful musicality. The majority of the elements composing it have been designed with mechanical optimization in mind. Thus, its new carbon arm greatly minimizes vibrations and allows the signal transmitted by the cartridge to be carried without deterioration. The arm is also of the Chrome 400 and is also accompanied by its arm lift, allowing to lower and raise it smoothly.
The motor is also new, featuring a digital ASC (Auto Speed Control) drive, which allows for precise speed adjustment. This motor, mechanically suspended by an optimized system, also significantly reduces vibration. The new platter, meanwhile, combines with an improved rotation axis to ensure high inertia and a stable and constant reading speed.
The Elipson Chroma 400 is equipped with an Ortofon OM-10E cell. This one has a diamond with an elliptical profile and ensures a frequency response between 20Hz and 25kHz with a channel separation of 22dB.
Specifications | |
---|---|
Product type | Vinyl turntable |
Drive type | Belt |
Rotation speeds | 33 tours 45 tours 78 tours |
Arm material | Carbon |
Cartridge | MM Ortofon OM-10E |
Frame material | MDF |
Tray material | Steel |
Centering pin material | Aluminum |
Ortofon OM-10E cartridge characteristics | |
---|---|
Frame | 0.5" Elliptical Moving magnet |
Output level | 4mV @ 1000Hz, 5cm/s |
Channel separation | 22dB @ 1kHz 15dB @ 15kHz |
Symmetry of the channels | 2dB @ 1kHz |
Frequency response | 20Hz - 25kHz (-3dB) 20Hz - 20kHz (±2dB) |
Tracking @ 315Hz, specified bearing pressure | 65µm |
Lateral compliance | 25µm/mN |
Radius of curvature of the tip | r/R 8/18µm |
Support pressure amplitude | 1.25 - 1.75g (12.5 - 17.5mN) |
Recommended support pressure | 1.25g (12.5mN) |
Cartridge weight | 6g |
Internal impedance (DC current) | 750Ω |
Internal impedance | 450Ω |
Recommended load resistance | 47kΩ |
Recommended load capacity | 200-600pF |
Tracking angle | 20° |
General | |
---|---|
Dimensions | 450 x 380 x 120mm |
Weight | 5.8kg |
Color / Finish | Noir laqué |
Package | 1x Elipson Chroma 400 1x Mechanical scale 1x Power adapter 1x RCA cable with ground wire |
Color | Black |
Cartridge type | MM (Moving Magnet) |
Rotation speed | 45 RPM |
Rotation speed | 33 RPM |
Rotation speed | 78 RPM |
