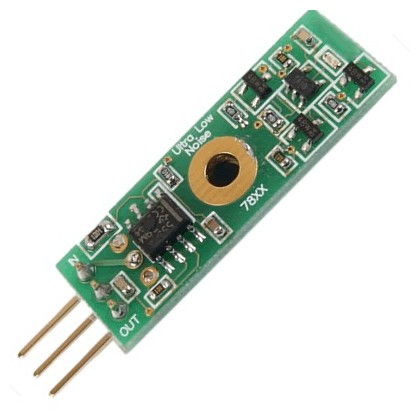

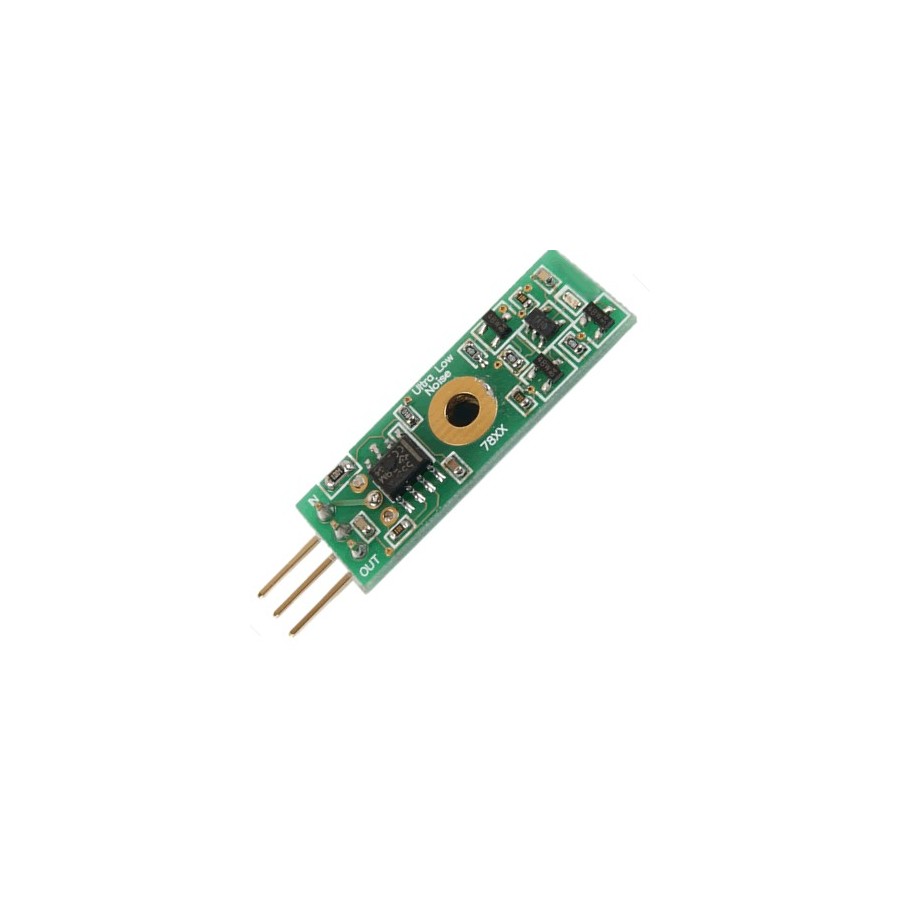

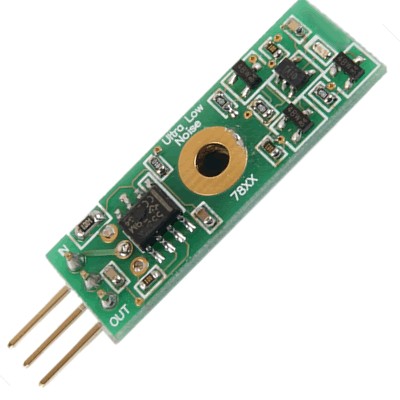

DEXA DX7803 3.3V UWB Regulator +3.3V
Régulateur de voltage ultra low noise idéal pour remplacer les régulateurs d'origine de vos produits Audio basé sur des 78xx et 79xx (ST microélectronique).
Caractéristiques :
- Voltage de sortie : 3.3V DC
- Voltage d'entrée Max: 25V DC
- Chute de tension : 2.00V (Equivalent to 78XX series)
- Courant Maximum DX78xx : 630mA
- Ripple Rejection : >100dB
- Régulation de charge: < 5mV 0-max load
- Dimensions : Lo 33.5 mm x La 11 mm x Ep 6.70 mm
Test : réjection du bruit
12VDC + 1vrms Ripple
7805 conventionnel
DEXA DX UWB
Test : charge d'ondes carrées
1khz
7805 conventionnel
DEXA DX UWB
