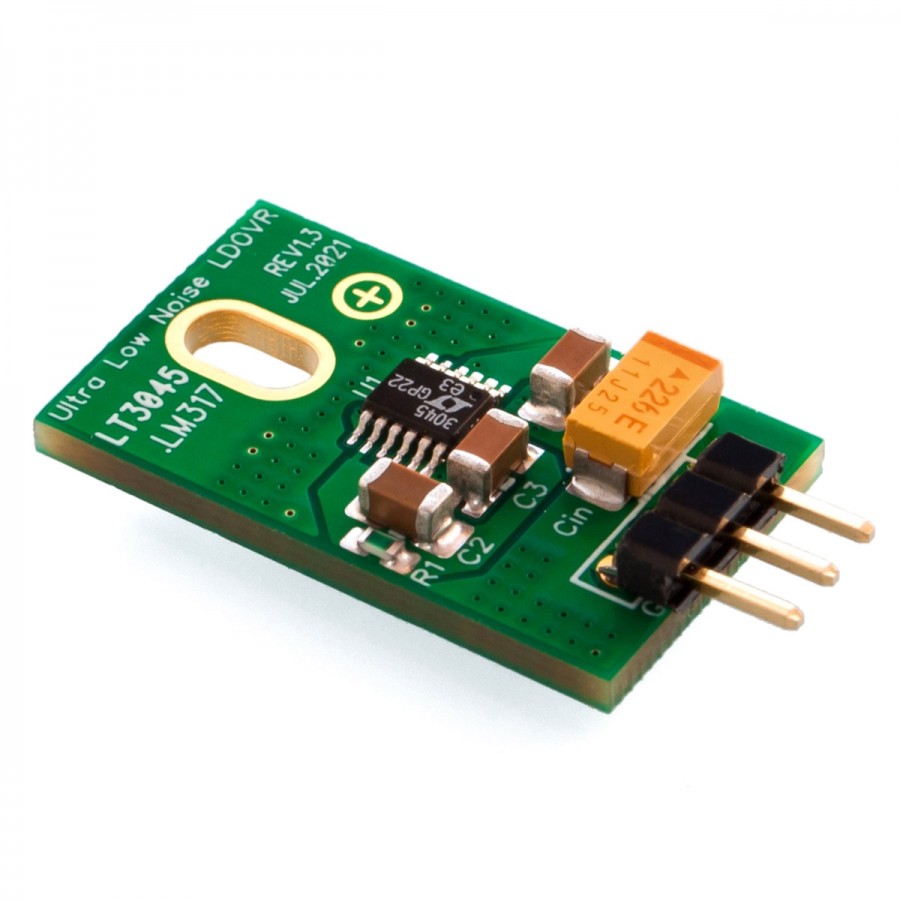

LDOVR LT3045-LM31X Ultra Low Noise Voltage Regulator +12V
The high quality LDOVR LT3045-LM31X regulator provides a very low noise level (0.8%Vrms) and a very low pressure drop (low-dropout). This model is compatible with the LM317 regulators and is therefore an ideal replacement solution.
No customer reviews yet, login to write a review.
By buying this product you get 2 loyalty points
Reference : 16201
New product
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
LDOVR LT3045-LM31X
Ultra Low Noise Voltage Regulator +12V
The high quality LDOVR LT3045-LM31X regulator provides a very low noise level (0.8%Vrms) and a very low pressure drop (low-dropout). This model is compatible with the LM317 regulators and is therefore an ideal replacement solution.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Linear voltage regulator |
| Output voltage | +12V |
| Output current | 500mA |
| Input voltage | 1.8V to 20V |
| Dropout voltage | 260mV |
| RMS Noise | 0.8µVRMS (10Hz-100kHz) |
| Spot noise | 2nV/√Hz @ 10kHz |
| PSRR | 76dB @ 1MHz |
| Protections | Fixed current limit Thermal shutdown |
| Operating temperature range | -40°C / +125°C |
| General | |
|---|---|
| Dimensions PCB | 25.4 x 15mm |
