DAYTON AUDIO DC130B-8 Classic Speaker Driver Woofer / Midbass 40W 8 Ohm 89dB 50Hz - 5000Hz Ø13.3cm
The Dayton Audio DC130B-8 is a 13.3cm diameter bass speaker, offering a very interesting price/quality ratio. It has been designed to provide very good performance at a reasonable price.
No customer reviews yet, login to write a review.
By buying this product you get 3 loyalty points
Reference : 12760
New product
![[GRADE S] NEOTECH NEI-3004 Symmetrical modulation cable UP-OCC Ø 8.5mm 1m](https://www.audiophonics.fr/65235-thumb_default/neotech-nei-3004-symmetrical-modulation-cable-up-occ-o-85mm.jpg)
![[GRADE S] NEOTECH NEI-3004 Symmetrical modulation cable UP-OCC Ø 8.5mm 4m](https://www.audiophonics.fr/65232-thumb_default/neotech-nei-3004-symmetrical-modulation-cable-up-occ-o-85mm.jpg)
![[GRADE B] DAYTON AUDIO DC28F-8 Spaeker Driver Dome Tweeter Silk 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm](https://www.audiophonics.fr/65229-thumb_default/dayton-audio-dc28f-8-spaeker-driver-dome-tweeter-silk-50w-8-ohm-89db-1300hz-20khz-o28cm.jpg)
![[GRADE A] LUDIC KRATOS Filtered Power Distributor 8 Filter Outlets Schuko Black](https://www.audiophonics.fr/65221-thumb_default/ludic-kratos-8-filtrer.jpg)
DAYTON AUDIO DC130B-8
Classic Woofer Speaker 8Ω Ø 13.3cm
The Dayton Audio DC130B-8 is a 13.3cm diameter bass speaker, offering a very interesting price/quality ratio. It has been designed to provide very good performance at a reasonable price. Its classic and efficient construction incorporates a non-pressed treated paper cone, rubber suspension, ASV voice coil and excellent low frequency structure.

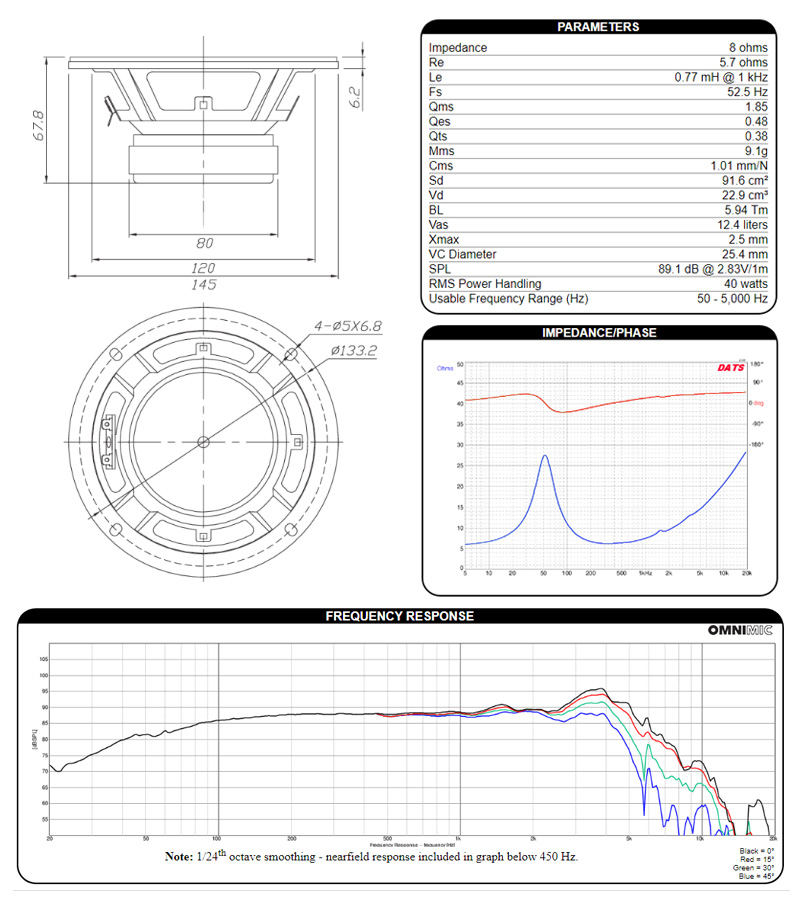

Technical characteristics
| Specifications | |
|---|---|
| Speaker type | Woofer |
| Nominal diameter | 5.25" (13.3cm) |
| Power Handling : RMS | 40W |
| Power Handling : Max | 80W |
| Impedance | 8Ω |
| Sensitivity | 84.1dB 2.83V/1m |
| Frequency response | 50Hz - 5000Hz |
| Voice coil diameter | 25.4mm |
| Magnet weight | 312g (11oz) |
| DC Resistance (Re) | 5.7Ω |
| Voice coil inductance (Le) | 0.77mH @ 1kHz |
| Resonant frequency (Fs) | 52.5Hz |
| Mechanical Q (Qms) | 1.85 |
| Electromagnetic Q (Qes) | 0.48 |
| Total Q (Qts) | 0.38 |
| Diaphragm Mass Inc. Airload (Mms) | 9.1g |
| Mechanical Compliance of Suspension (Cms) | 1.01mm/N |
| Surface Area of Cone (Sd) | 91.6cm² |
| BL Product (BL) | 5.94Tm |
| Compliance equivalent volume (Vas) | 12.4l |
| Maximum linear excursion (Xmax) | 2.5mm |
| Cone material | Paper |
| Surround material | Rubber |
| Voice coil wire material | Copper |
| Voice coil material | Aluminium |
| Basket material | Steel |
| Magnet material | Ferrite |
| Overall outside diameter | 145mm |
| Overall depth | 67.8mm |
| Cutout diamter | 120mm |
| Fixation holes | 4 |
| Speaker Power (W RMS) | 40.0 |
| Speaker Type | Woofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 133.0 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 89.0 |
| Max Linear Excursion (Xmax) (mm) | 2.5 |
| Max Linear Excursion (Xmax) (mm) | 3.0 |
| Lowest frequency (Hz) | 50 |
| Highest frequency (Hz) | 5000 |
