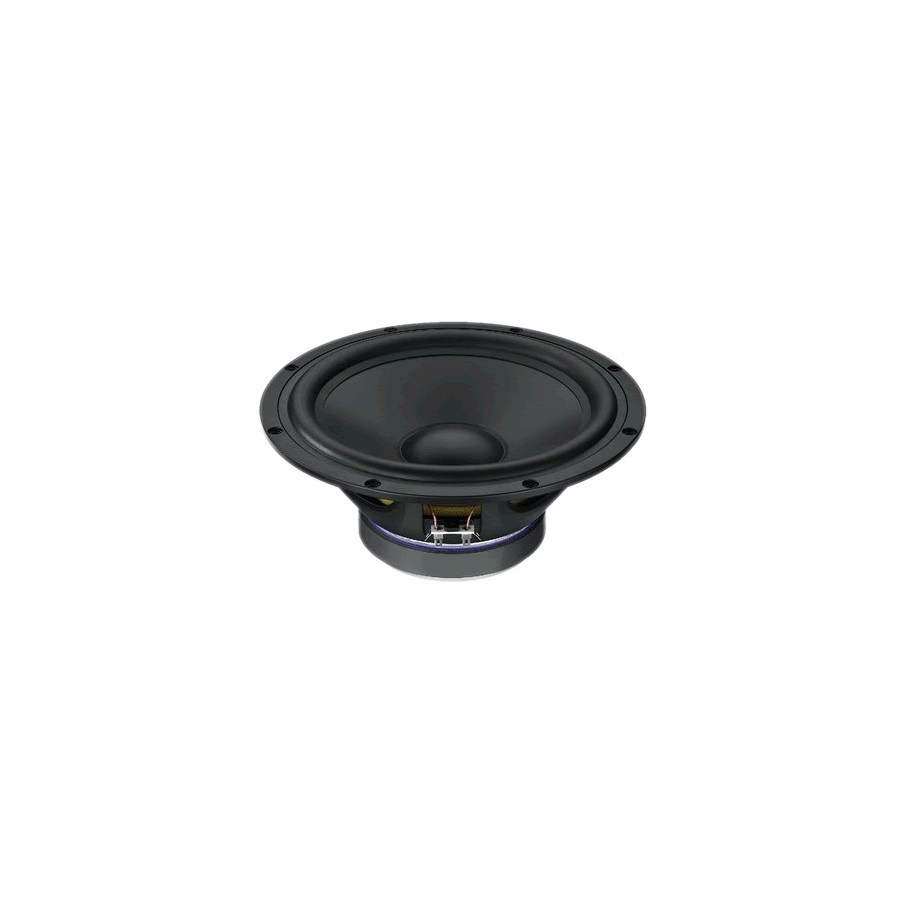

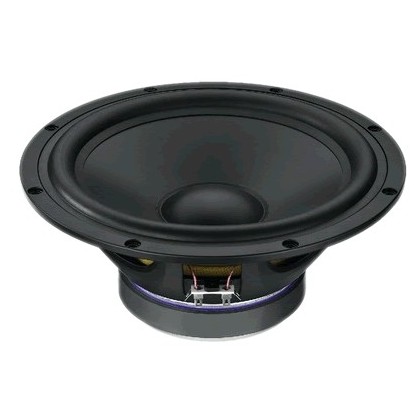

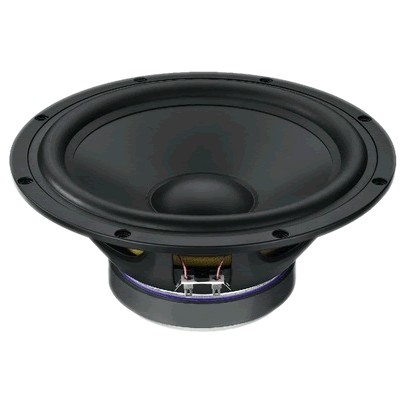

MONACOR SPH-10M Speaker Driver Woofer 120W 8 Ohm 89dB Ø25.5cm
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
MONACOR SPH-10M Hi-Fi speaker 200 WMAX 8 Ω
- Grave Hi-Fi with long travel, excellent quality of realization
- Deep bass reproduction
- Damped polypropylene membrane, low in resonance
- Solid aluminum bowl, 8-hole screw connection
- Magnetic system with drilling of pole pieces and pole plate
- Ideal for bass-reflex, TML and closed loudspeakers
Features:p>Impedance (Z): 8 Ω
Resonant frequency (fs): 29 Hz
Maximum bandwidth: f3-2000 Hz
Maximum power: 200 WMAX
Nominal power (P): 120 WRMS
Average sound pressure (1 W / 1 m): 89 dB
Compliance susp. (Cms): 0.41 mm / N
Weight (Mms): 69 g
Mechanical overvoltage. (Qms): 2.62
Electrical overvoltage (Qes): 0.60
Fact. total surge (Qts): 0.49
Volume equ. (VAS): 73.5 l
DC resistance. (Re): 6.5 Ω
Force factor (BxL): 11.5 Tm
Coil Inductor (Le): 1.1 mH
Coil diameter: Ø 50 mm
Coil Holder: Aluminum
Linear excursion (X MAX): ± 6.25 mm
Transmitting surface (Sd): 363 cm 2
Weight: 1.1 kg
Weight: 3.85 kg
| Speaker Power (W RMS) | 120.0 |
| Speaker Type | Woofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 255.0 |
| Diaphragm type | Polypropylene |
| Efficiency / Sensitivity (dB) | 89.0 |
| Max Linear Excursion (Xmax) (mm) | 6.0 |
| Highest frequency (Hz) | 2000 |
