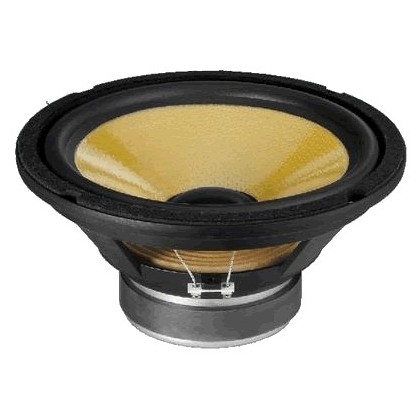

MONACOR SPH-250KE Speaker Driver Woofer 100W 8 Ohm 90dB

Hi-Fi bass speaker, 150 W _MAX , 8 Ω

Kevlar fiber diaphragm, molded aluminum bowl, long stroke, for 3-way systems, close or bass-reflex. For all types of Hi-Fi and high-end uses.

Impedance (Z)

8 Ω

Resonance frequency (fs)

23 Hz

Maximum bandwidth

f3-3000 Hz

Maximum power

150 W _MAX

Rated power (P)

100 W _RMS

Average sound pressure (1 W / 1 m)

90 dB

Compliance susp. (Cms)

0.94 mm / N

Moving mass (Mms)

45 g

Mechanical overvoltage. (Qms)

5.25

Electrical overvoltage (Qes)

0.45

Fact. total surge (Qts)

041

Volume equ. (VAS)

204 l

DC resistance. (Re)

6.1 Ω

Force factor (BxL)

9.4 Tm

Inductance coil (The)

0.7 mH

Coil diameter

50 mm

Coil holder

Kapton

Linear Excursion (X _MAX )

± 4.75 mm

Transmitting surface (Sd)

346 cm ²

Magnet Weight

29.5 + 1.76 oz.

Weight

3 kg
