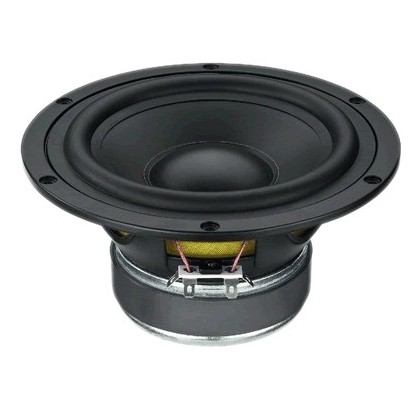

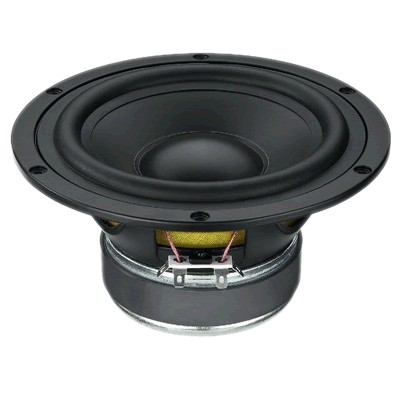

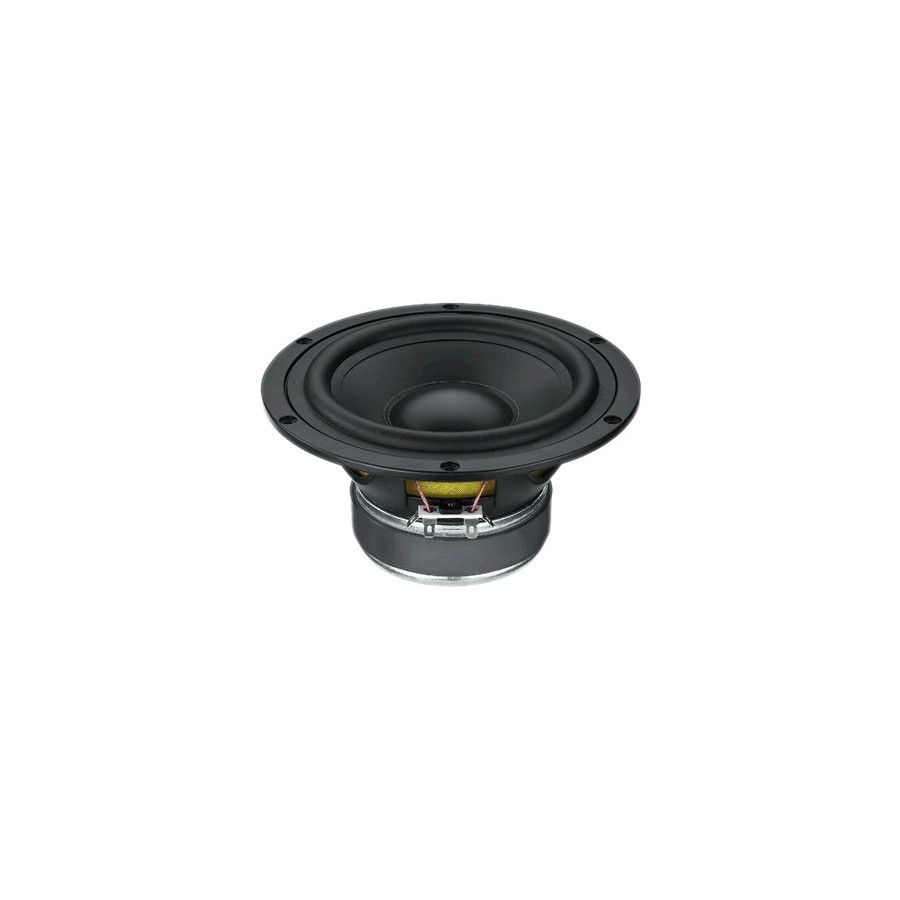

MONACOR SPH-6M Speaker Driver Woofer 60W 8 Ohm 88dB 39Hz - 3000Hz Ø16.5cm
No customer reviews yet, login to write a review.
By buying this product you get 6 loyalty points
Reference : 5790
New product
MONACOR SPH-6M Hi-Fi bass speaker 120 WMAX 8 Ω
Impedance (Z): 8 Ω
Resonant Frequency (fs): 39 Hz
Maximum bandwidth:f3-3000 Hz
Maximum power: 120 WMAX
Nominal power (P): 60 WRMS
Average sound pressure (1 W / 1 m): 88 dB
Compliance susp. (Cms): 0.78 mm / N
Weight (Mms): 20 g
Mechanical overvoltage. (Qms): 2.26
Electrical overvoltage (Qes): 0.35
Fact. total surge (Qts): 0.30
Volume equ. (VAS): 17.6 l
DC resistance. (Re): 6.33 Ω
Force Factor (BxL): 9.68 Tm
Coil Inductor (Le): 0.82 mH
Coil diameter: Ø 37 mm
Coil Holder: Aluminum
Excursionlinear (X MAX): ± 4 mm
Emission area (Sd): 127 cm 2
Magnet weight: 630 g
Weight: 1.9 kg
| Speaker Power (W RMS) | 60.0 |
| Speaker Type | Woofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 165.0 |
| Diaphragm type | Polypropylene |
| Efficiency / Sensitivity (dB) | 88.0 |
| Max Linear Excursion (Xmax) (mm) | 4.0 |
| Lowest frequency (Hz) | 39 |
| Highest frequency (Hz) | 3000 |
