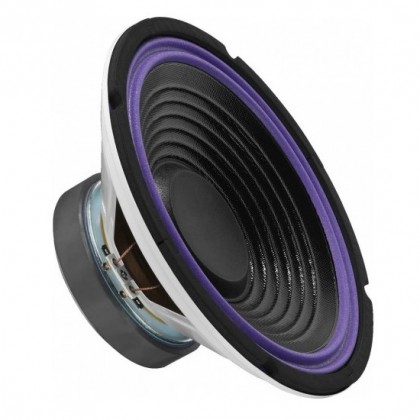

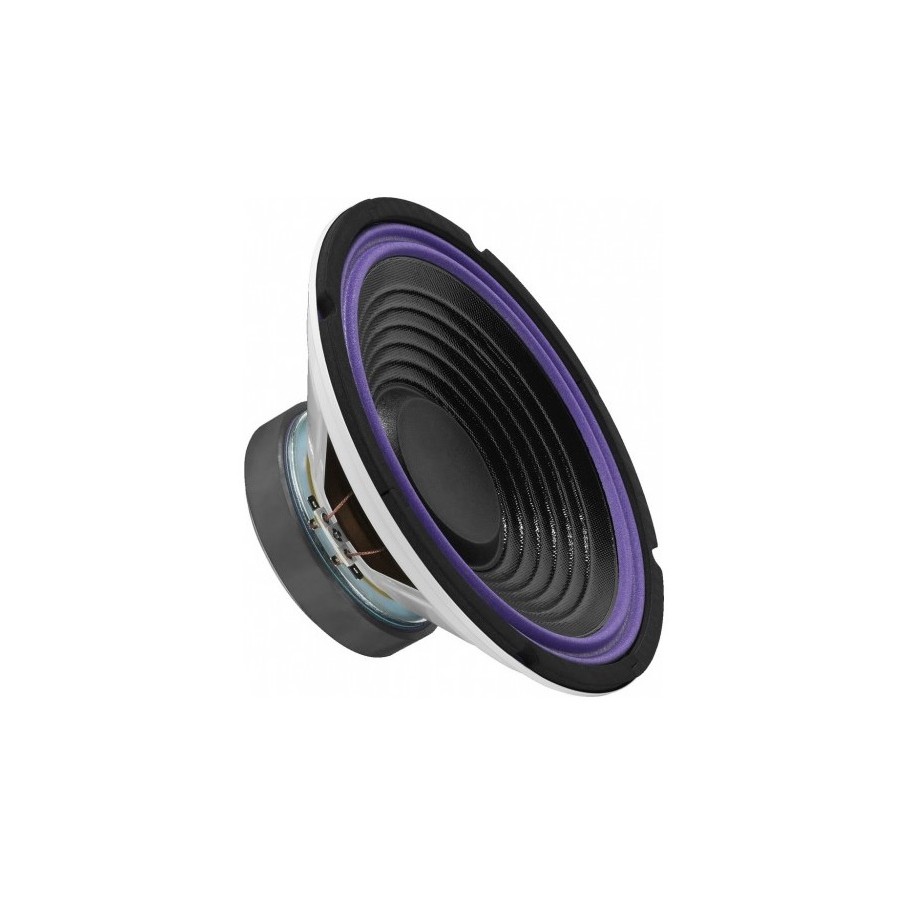

SP-252C "Free-air" bass speaker
By buying this product you get 5 loyalty points
Reference : 1296
New product
Viewed products
On-board Hi-Fi subwoofers for free air use. Reinforced pressed paper membrane, specific suspension with long travel. With reworked magnetic systems for an even greater power, rear pole plate for an exceptionally large displacement capacity.
Bass speaker, 350 WMAX, 4 Ω
25 cm (10 ") bass speaker, pressed diaphragm As a complement to" free air "mounting (without housing) in compact vehicles, remodeled product with lower positioning of polarity elements for greater travel.
With the new parameters, which are translated primarily by a greatly improved Qts, these speakers can now be recommended for closed enclosures or even large bass-reflex speakers.
| Specifications Speakers | |||
 | | ||
| | ||
| Impedance (Z) | | 4 Ω |
| | ||
| Bandwidth | | 40-3500 Hz |
| | ||
| Resonance frequency (fs) | | 35 Hz |
| | ||
| Cutoff frequency (12 dB / oct) (fmax) | | 2000 Hz |
| | ||
| Peak Current | | 350 W |
| | ||
| Nominal power | | 100 WRMS |
| | ||
| Average sound pressure (1 W / 1 m) | | 93 dB |
| | ||
| Cms Compliance susp. | | 0.55 mm / N |
| | ||
| Mms Mobile Mace | | 38 g |
| | ||
| Qms Mechanical overvoltage | | 3.15 |
| | ||
| Qes Overvoltage elec | | 0.47 |
| | ||
| Qts Fact. total surge | | 0.41 |
| | ||
| Equivalent volume (Vas) | | 96 l |
| | ||
| RDC Resistance DC (Re) | | 3.7 Ω |
| | ||
| Inductance coil (1 kHz) (The) | | 0.4 mH |
| | ||
| Coil diameter | | 39 mm |
| | ||
| Coil holder | | ATread |
| | ||
| Air gap height | | 5 mm |
| | ||
| Force factor B x L | | 8.08 Tm |
| | ||
| Transmitting surface (Sd) | | 353 cm2 |
| | ||
| Magnet diameter | | 125 mm |
| | ||
| Magnet Weight | | 30 oz. |
| | ||
| Cutting | | Ø 231 mm |
| | ||
| Mounting depth | | 110 mm |
| | ||
| Dimensions | | Ø 255 mm |
| | ||
| Weight | | 2.1 kg |
| | ||
| | ||
