Specifications | |||

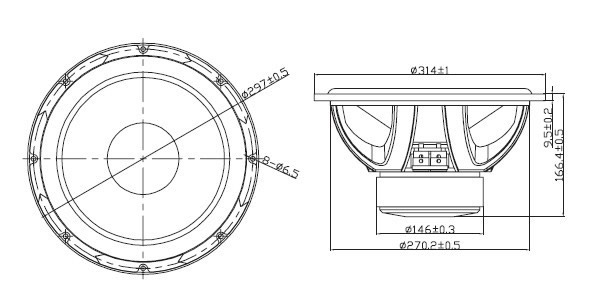

Overall Dimensions | D314x166.4mm | Voice coil height | 36.5mm |
Net.Weight | 6.6kgs | Voice coil former | Aluminum |
Nominal Power Handlng | 600W* | Voice coil wire | round copper |
Nominal Impedance | 8 ohms | Number of layer | 4 |

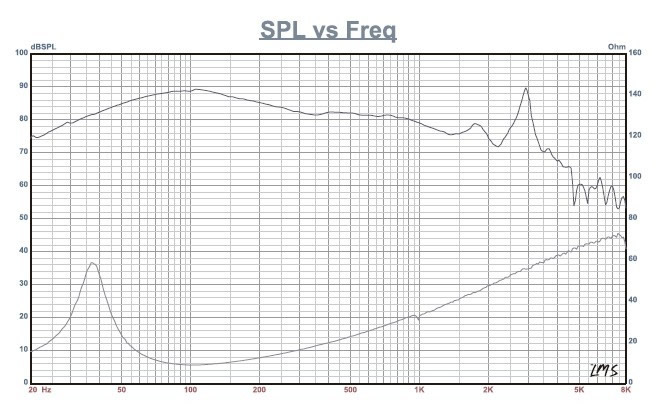

Frequency Response | 31-1,000Hz | DC resistance | 2x3.6ohm |
Resonant frequency | 38Hz | Magnet system type | ferrite |
Voice coil diameter | Magnetic gap height | 8mm | |
Voice coil diameter | 50mm | Max linear excursion | 14.25mm+/- |
T/S parameter | |||
Single voice coil | Dual voice coil in series | ||
DC resistance | 3.6 ohm | DC resistance | 7.2 ohm |
Resonant frequency | 37.247Hz | Resonant frequency | 38.21Hz |
Sd | 530.930cm^2 | Sd | 530.930cm^2 |
BL | 11.392Tm | BL | 21.274Tm |
Qms | 4.557 | Qms | 4.246 |
Qes | 0.946 | Qes | 0.53 |
Qts | 0.784 | Qts | 0.471 |
SPL | 86.2dB/W/M | SPL | 89.1dB/W/M |
Vas | 50.132 litre | Vas | 50.022 litre |
Cms | 0.125241mm/N | Cms | 0.124968mm/N |
Mms | 145.782gm | Mms | 138.83gm |
Mmd | 138.748gm | Mmd | 131.795gm |
